QZE708GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Crankcase and Crankshaft Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 708

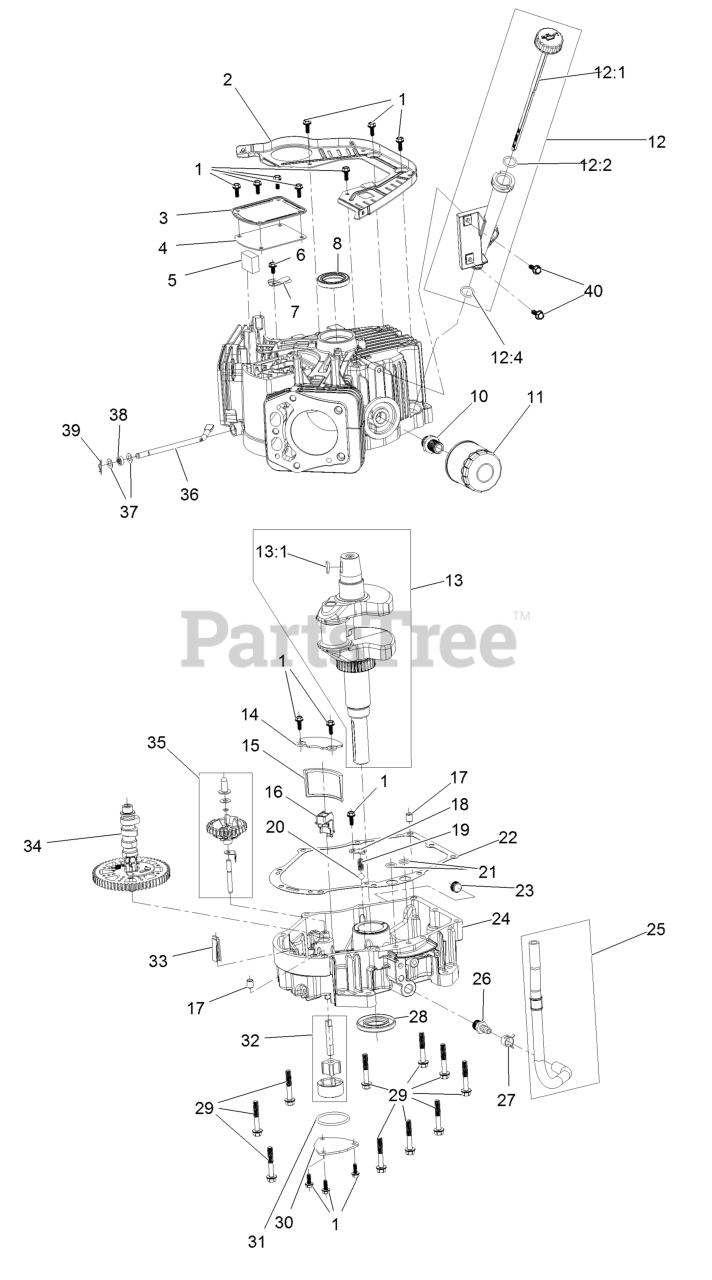

Crankcase and Crankshaft Assembly Parts Diagram

  • Title

1

Exmark 120-4232

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 127-9212

Baffle

$37.99

$

Usually ships in 3-6 days

0

3

Exmark 127-9213

Cover-Breather

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 127-9214

Gasket-Breather

$7.99

$

In Stock, only 1 left!

0

5

Exmark 127-9215

Filter-Breather

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 120-4216

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 127-9217

Valve-Breather

$12.99

$

In Stock, only 1 left!

0

8

Exmark 120-4267

Seal-Oil

$20.99

$

Usually ships in 3-6 days

0

10

Exmark 136-7884

Adaptor-Filter, Oil

$12.99

$

In Stock, only 1 left!

0

11

Exmark 136-7848

Filter-Oil

$19.99

$

In Stock, Qty 20+

0

12

Exmark 127-9218

Oil Tube ASM

$23.99

$

In Stock, only 4 left!

0

12:1

Exmark 127-9283

Dipstick

$14.99

$

In Stock, only 1 left!

0

12:2

Exmark 127-9284

O-Ring

$5.49

$

Usually ships in 3-6 days

0

12:4

Exmark 127-9286

O-Ring

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 127-9255

Crankshaft

$299.99

$

Usually ships in 3-6 days

0

13:1

Exmark 120-4320

Key-Woodruff

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 127-9261

Cover-Screen, Oil

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 127-9262

Screen-Oil

$14.99

$

In Stock, only 1 left!

0

16

Exmark 127-9263

Retainer-Screen

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 120-4274

Pin-Dowel

$1.49

$

In Stock, only 2 left!

0

18

Exmark 127-9264

Plate-Retainer

$8.99

$

Usually ships in 3-6 days

0

19

Exmark 127-9265

Spring

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 127-9266

Valve-Ball

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 120-4262

O-Ring

$1.49

$

In Stock, only 2 left!

0

22

Exmark 127-9267

Gasket-Cover, Crankcase

$15.99

$

In Stock, only 2 left!

0

23

Exmark 133-9805

Plug-Drain

$7.99

$

In Stock, only 1 left!

0

24

Exmark 133-9806

Cover-Crankcase

$253.99

$

Usually ships in 3-6 days

0

25

Exmark 127-9293

Oil Drain Hose ASM

$47.99

$

Usually ships in 3-6 days

0

26

Exmark 127-9275

Fitting-Hose

$14.99

$

Usually ships in 3-6 days

0

27

Exmark 127-9276

Clamp-Hose

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 127-9271

Seal

$15.99

$

Usually ships in 3-6 days

0

29

Exmark 121-0473

Screw-HHF

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 127-9274

Cover-Oil Pump

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 127-9273

O-Ring

$2.99

$

In Stock, Qty 5

0

32

Exmark 127-9272

Oil Pump ASM

$36.99

$

Usually ships in 3-6 days

0

33

Exmark 120-4275

Deflector-Oil, Rubber

$1.49

$

In Stock, only 1 left!

0

34

Exmark 133-1568

Camshaft

$100.99

$

Usually ships in 3-6 days

0

35

Exmark 136-7882

Governor ASM

$28.99

$

In Stock, only 1 left!

0

36

Exmark 127-9238

Shaft-Governor

$7.99

$

Usually ships in 3-6 days

0

37

Exmark 120-4258

Washer-Plain

$1.49

$

Usually ships in 3-6 days

0

38

Exmark 120-4257

Seal-Oil

$5.49

$

In Stock, Qty 8

0

39

Exmark 120-4256

Pin-Hair

$1.49

$

Usually ships in 3-6 days

0

40

Exmark 120-4232

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0
