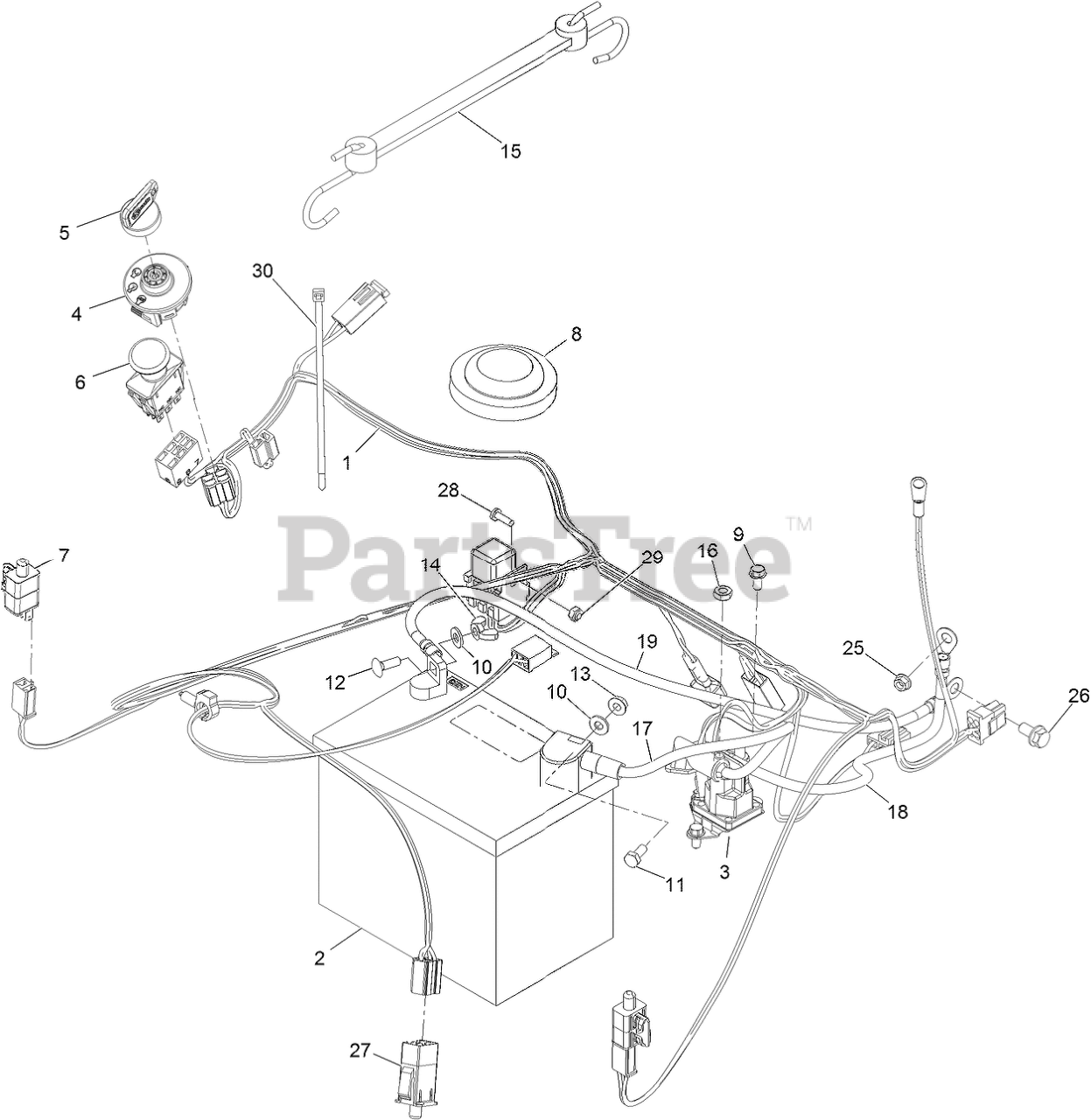

QZE702GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 702 (SN: 406294345 - 408644345) (Rev A) (2020) Electrical Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 702

Electrical Assembly Parts Diagram

  • Title

1

Exmark 142-2279

Harness-Wire,

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$196.99

$

Usually ships in 3-6 days

0

2

Exmark 105-1692

BATTERY

$

$

Not available

3

Exmark 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

4

Exmark 137-4100

SWITCH-IGNITION

$28.99

$

In Stock, Qty 20+

0

5

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

6

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

7

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

8

Exmark 100-3524

SWITCH-SEAT

$62.99

$

In Stock, Qty 10

0

9

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 120-9679

Washer-Flat

$2.49

$

Usually ships in 3-6 days

0

11

Exmark 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

13

Exmark 139-2575

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 32103-22

NUT-WING

$2.99

$

In Stock, Qty 11

0

15

Exmark 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 5

0

16

Exmark 139-2580

NUT-HJ

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 119-8897

CABLE-BATTERY, RED

$22.99

$

In Stock, Qty 13

0

18

Exmark 121-0711

CABLE-BATTERY, POSITIVE

$14.99

$

In Stock, Qty 9

0

19

Exmark 119-8899

CABLE-BATTERY, BLACK

$17.99

$

In Stock, only 2 left!

0

25

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

26

Exmark 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 19

0

27

Exmark 104-3338

SWITCH-DELTA

$54.99

$

In Stock, only 2 left!

0

28

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0
