QZE702GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 702 (SN: 404314159 - 406294344) (2019) Seat Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 702

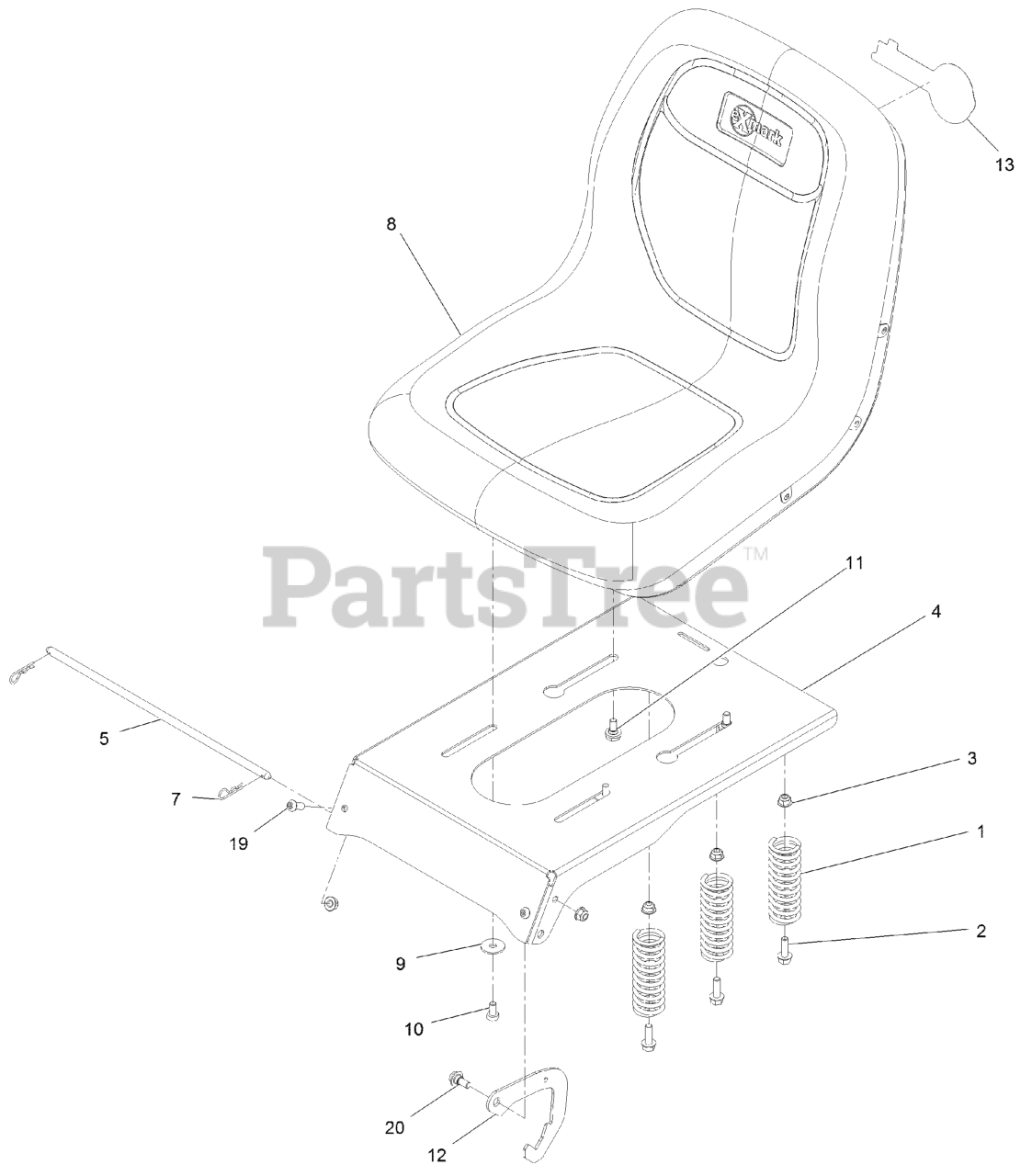

Seat Assembly Parts Diagram

  • Title

1

Exmark 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 10

0

2

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 131-4037-03

PAN-SEAT

$74.99

$

Usually ships in 3-6 days

0

5

Exmark 138-7213

Rod-Pivot, Narrow

$17.99

$

Usually ships in 3-6 days

0

7

Exmark 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 119-8956

SEAT-18 IN

$298.99

$

Usually ships in 3-6 days

0

9

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

10

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

11

Exmark 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, only 3 left!

0

12

Exmark 138-7250

Seat Latch

$8.49

$

In Stock, only 1 left!

0

13

Exmark 135-3747

DECAL-EXMARK LOGO

$10.99

$

Usually ships in 3-6 days

0

19

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

20

Exmark 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0
