QZE702GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 702 (SN: 404314159 - 406294344) (2019) Park Brake Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 702

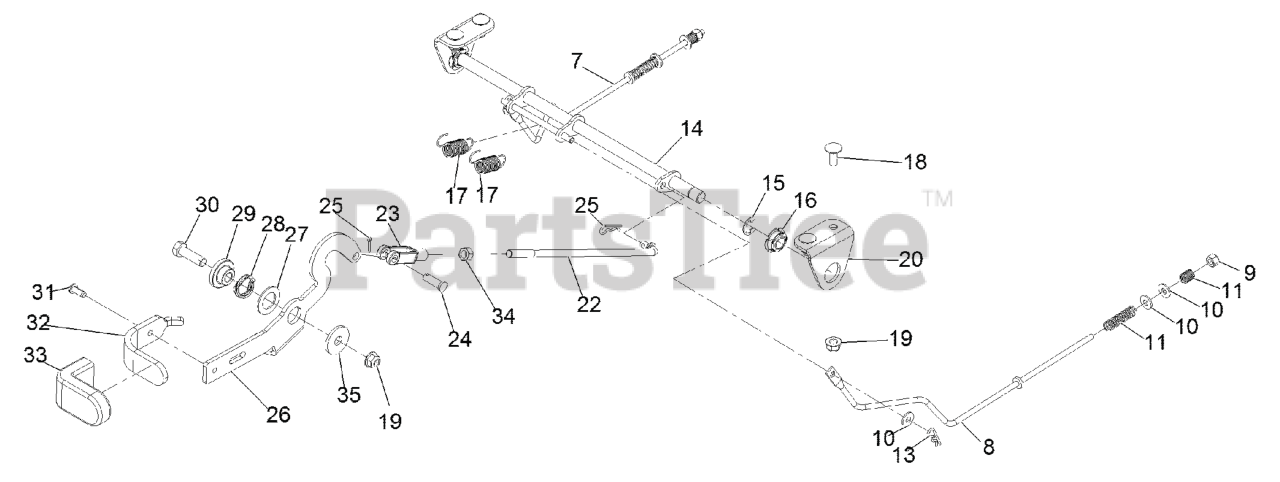

Park Brake Assembly Parts Diagram

  • Title

7

Exmark 121-2974

ROD-BRAKE, RH

$12.99

$

In Stock, only 1 left!

0

8

Exmark 121-2975

ROD-BRAKE, LH

$12.99

$

Usually ships in 3-6 days

0

9

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

11

Exmark 117-1169

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 20+

0

13

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 135-0148

PIVOT-BRAKE

$98.99

$

Usually ships in 3-6 days

0

15

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

16

Exmark 136-7469

BEARING-SPHERICAL

$7.99

$

Usually ships in 3-6 days

0

17

Exmark 55-9280

SPRING-EXTENSION

$6.99

$

In Stock, Qty 7

0

18

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Exmark 135-0147-03

ANGLE-MOUNT PIVOT

$9.49

$

Usually ships in 3-6 days

0

22

Exmark 135-0164

ROD-LINK HANDLE

$30.99

$

Usually ships in 3-6 days

0

23

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

24

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

26

Exmark 135-0165-03

LEVER-BRAKE

$29.99

$

Usually ships in 3-6 days

0

27

Exmark 119-7640

WASHER-THRUST

$3.49

$

In Stock, Qty 11

0

28

Exmark 121-4517

WASHER-WAVE

$4.49

$

Usually ships in 3-6 days

0

29

Exmark 126-5989

PIVOT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Exmark 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

32

Exmark 135-0190-03

HANDLE-BRAKE

$15.99

$

Usually ships in 3-6 days

0

33

Exmark 132-4749

GRIP-LEVER

$5.49

$

In Stock, only 1 left!

0

34

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

35

Exmark 2844

WASHER

$2.99

$

In Stock, Qty 20+

0
