QZE702GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 702 (SN: 404314159 - 406294344) (2019) Deck Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 702

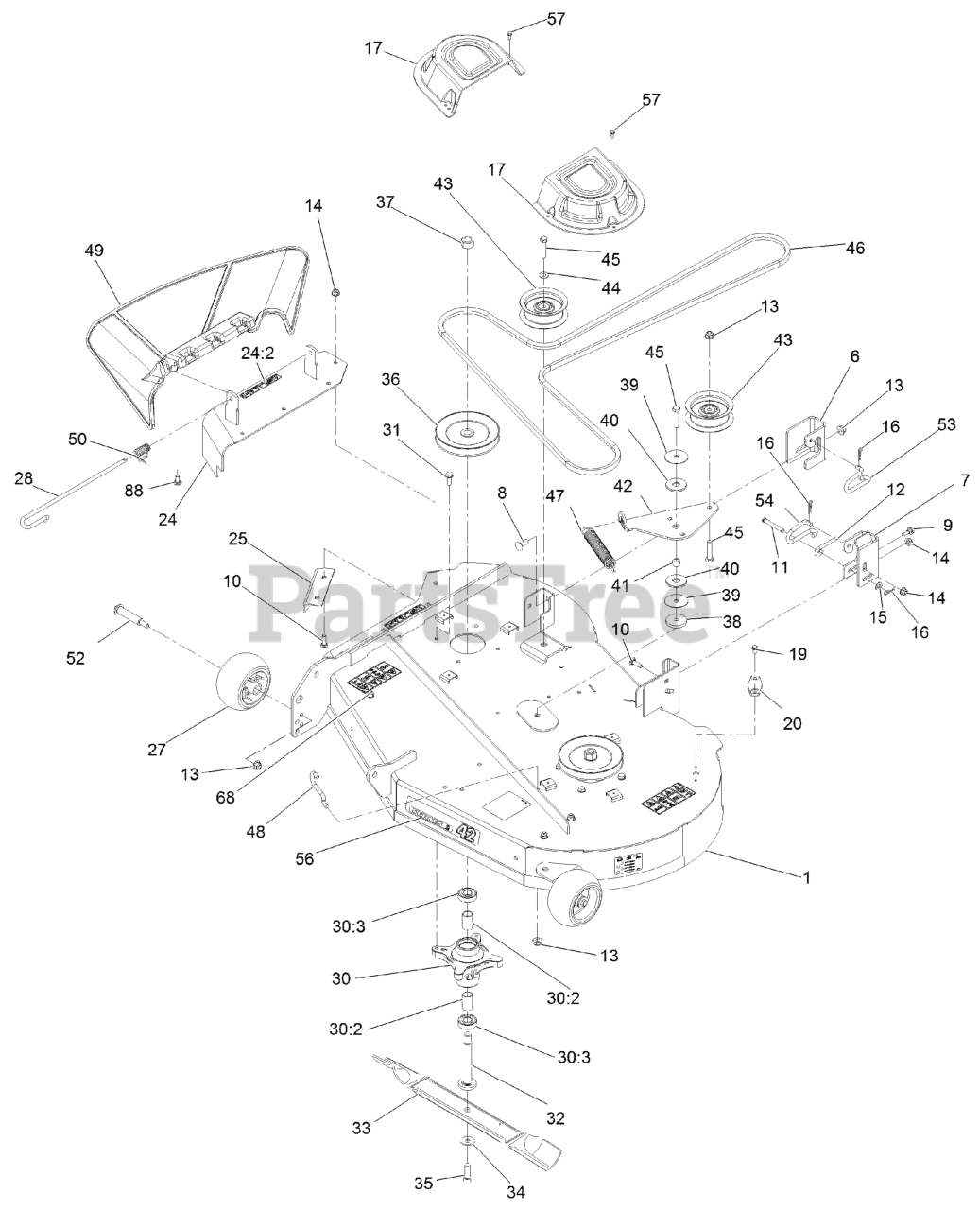

Deck Assembly Parts Diagram

  • Title

1

Exmark 135-1068

DECK-42 W/DECALS

$1116.99

$

Usually ships in 3-6 days

0

6

Exmark 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, Qty 8

0

7

Exmark 131-1091

BRACKET-HANGER, LH

$14.99

$

In Stock, Qty 11

0

8

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

9

Exmark 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 16

0

10

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

11

Exmark 110-0618

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

12

Exmark 131-0955

ROD-LEVEL, DECK

$7.99

$

In Stock, only 1 left!

0

13

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Exmark 108-7889

COVER-BELT

$34.99

$

In Stock, only 2 left!

0

19

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 136-4171

COVER-WASHOUT PORT

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 131-3961

COVER ASM W/DECAL

$71.99

$

Usually ships in 3-6 days

0

24:2

Exmark 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

25

Exmark 120-7951-03

BAFFLE-CUTOFF

$26.99

$

In Stock, only 2 left!

0

27

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

28

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

30

Exmark 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$78.99

$

Usually ships in 3-6 days

0

30:2

Exmark 120-7935

SPACER

$2.99

$

In Stock, Qty 9

0

30:3

Exmark 136-5441

BEARING-BALL

$7.99

$

In Stock, Qty 6

0

31

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

32

Exmark 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 15

0

33

Exmark 131-3939-03

BLADE-HIGH LIFT

$26.99

$

In Stock, Qty 20+

0

34

Exmark 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

36

Exmark 125-5574

PULLEY
(Superseded to 139-2433)

$37.99

$

In Stock, Qty 20+

0

37

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

38

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

In Stock, only 2 left!

0

39

Exmark 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

40

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

In Stock, Qty 11

0

41

Exmark 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

42

Exmark 114-8540

ARM-IDLER

$21.99

$

In Stock, only 1 left!

0

43

Exmark 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

44

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

45

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Exmark 119-8819

V-BELT
(Superseded to 119-8819-SL)

$54.99

$

Usually ships in 3-6 days

0

47

Exmark 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

48

Exmark 138-7267

Hook-Return Spring

$2.99

$

In Stock, Qty 8

0

49

Exmark 121-0739

DEFLECTOR-DISCHARGE

$64.99

$

In Stock, Qty 6

0

50

Exmark 121-2983

SPRING-TORSION

$5.49

$

In Stock, Qty 7

0

52

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

53

Exmark 131-8734

LINK-RETENTION, DECK (RH)

$8.49

$

In Stock, only 1 left!

0

54

Exmark 131-4131

LINK-RETENTION, DECK (LH)

$8.49

$

In Stock, only 3 left!

0

56

Exmark 126-1771

DECAL-SERIES 2 - 42

$5.99

$

Usually ships in 3-6 days

0

57

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

68

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

88

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+
