QZE702GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 702 (SN: 404314159 - 406294344) (2019) Crankcase and Crankshaft Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 702

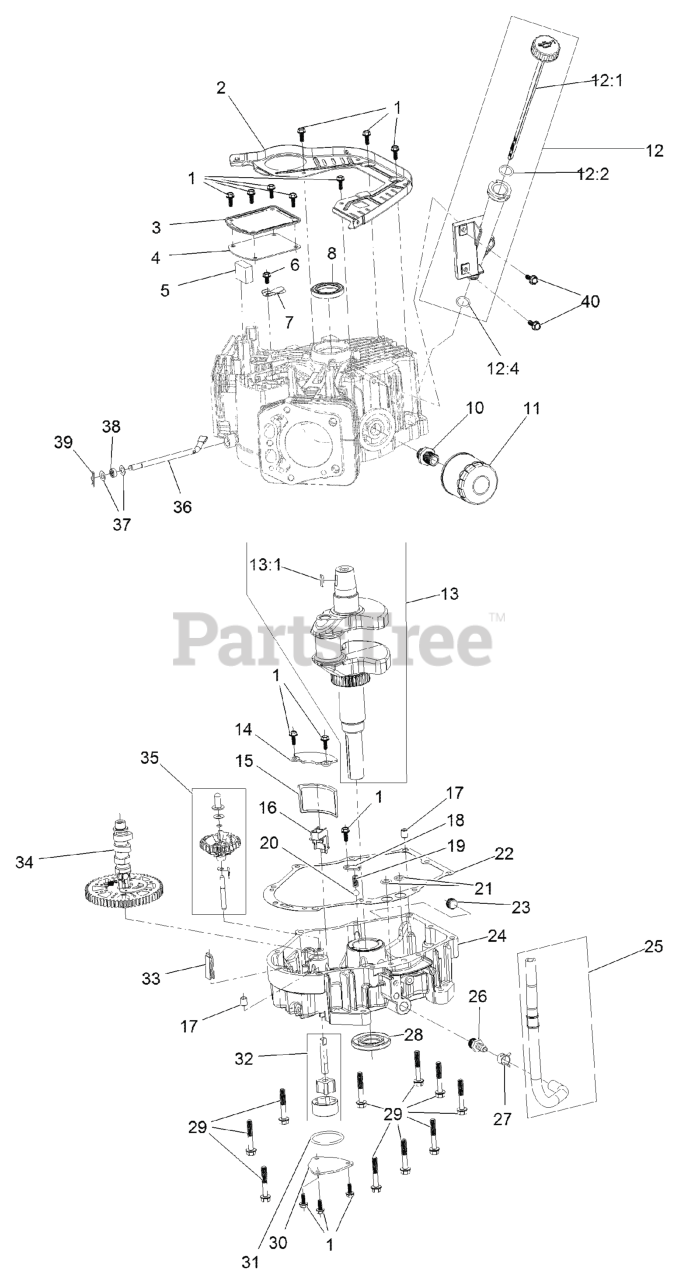

Crankcase and Crankshaft Assembly Parts Diagram

  • Title

1

Exmark 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 127-9212

BAFFLE

$37.99

$

Usually ships in 3-6 days

0

3

Exmark 127-9213

COVER-BREATHER

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 127-9214

GASKET-BREATHER

$7.99

$

In Stock, only 1 left!

0

5

Exmark 127-9215

FILTER-BREATHER

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 127-9217

VALVE-BREATHER

$12.99

$

In Stock, only 1 left!

0

8

Exmark 120-4267

SEAL-OIL

$20.99

$

Usually ships in 3-6 days

0

10

Exmark 136-7884

ADAPTOR-FILTER, OIL

$12.99

$

In Stock, only 1 left!

0

11

Exmark 136-7848

FILTER-OIL

$19.99

$

In Stock, Qty 14

0

12

Exmark 127-9218

OIL TUBE ASM

$23.99

$

In Stock, only 4 left!

0

12:1

Exmark 127-9283

DIPSTICK

$14.99

$

In Stock, only 1 left!

0

12:2

Exmark 127-9284

O-RING

$5.49

$

In Stock, only 3 left!

0

12:4

Exmark 127-9286

O-RING

$5.49

$

In Stock, only 1 left!

0

13

Exmark 127-9255

CRANKSHAFT

$299.99

$

Usually ships in 3-6 days

0

13:1

Exmark 120-4320

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 127-9261

COVER-SCREEN, OIL

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 127-9262

SCREEN-OIL

$14.99

$

In Stock, only 1 left!

0

16

Exmark 127-9263

RETAINER-SCREEN

$5.49

$

Usually ships in 3-6 days

0

17

Exmark 120-4274

PIN-DOWEL

$1.49

$

In Stock, only 2 left!

0

18

Exmark 127-9264

PLATE-RETAINER

$8.99

$

Usually ships in 3-6 days

0

19

Exmark 127-9265

SPRING

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 127-9266

VALVE-BALL

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 120-4262

O-RING

$1.49

$

In Stock, Qty 8

0

22

Exmark 127-9267

GASKET-COVER, CRANKCASE

$15.99

$

In Stock, only 2 left!

0

23

Exmark 133-9805

PLUG-DRAIN

$7.99

$

In Stock, only 1 left!

0

24

Exmark 133-9806

COVER-CRANKCASE

$253.99

$

Usually ships in 3-6 days

0

25

Exmark 127-9293

OIL DRAIN HOSE ASM

$47.99

$

Usually ships in 3-6 days

0

26

Exmark 127-9275

FITTING-HOSE

$14.99

$

Usually ships in 3-6 days

0

27

Exmark 127-9276

CLAMP-HOSE

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 127-9271

SEAL

$15.99

$

In Stock, only 3 left!

0

29

Exmark 121-0473

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 127-9274

COVER-OIL PUMP

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 127-9273

O-RING

$2.99

$

In Stock, only 4 left!

0

32

Exmark 127-9272

OIL PUMP ASM

$36.99

$

Usually ships in 3-6 days

0

33

Exmark 120-4275

DEFLECTOR-OIL, RUBBER

$1.49

$

In Stock, only 1 left!

0

34

Exmark 133-1568

CAMSHAFT

$100.99

$

Usually ships in 3-6 days

0

35

Exmark 136-7882

GOVERNOR ASM

$28.99

$

In Stock, only 1 left!

0

36

Exmark 127-9238

SHAFT-GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

37

Exmark 120-4258

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

38

Exmark 120-4257

SEAL-OIL

$5.49

$

In Stock, Qty 9

0

39

Exmark 120-4256

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

40

Exmark 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days
