QZE702GEM34200 - Exmark 34" Quest E-Series Zero-Turn Mower, Exmark 702 (SN: 404314159 - 406294344) (2019) Carburetor Assembly Parts Diagram

34" Quest E-Series Zero-Turn Mower, Exmark 702

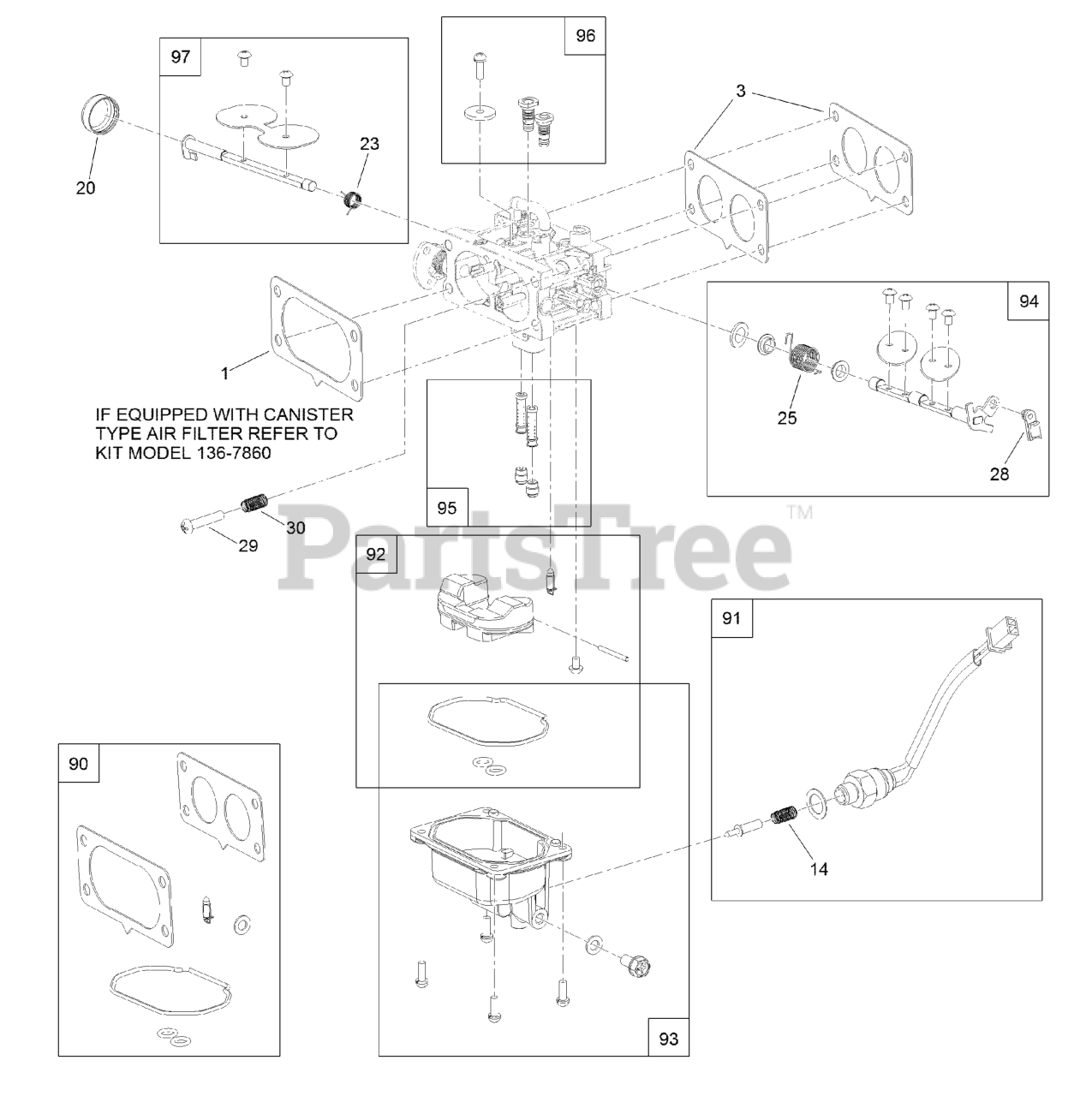

Carburetor Assembly Parts Diagram

  • Title

1

Exmark 127-9251

GASKET-CARBURETOR

$5.49

$

In Stock, Qty 15

0

3

Exmark 127-9246

GASKET-CARBURETOR

$5.49

$

In Stock, Qty 14

0

14

Exmark 127-9319

SPRING

$2.99

$

In Stock, only 3 left!

0

20

Exmark 127-9325

COVER-SHAFT, CHOKE

$6.49

$

In Stock, only 1 left!

0

23

Exmark 127-9328

SPRING

$2.99

$

In Stock, Qty 11

0

25

Exmark 133-9957

SPRING

$1.49

$

In Stock, only 1 left!

0

28

Exmark 127-9333

CLAMP-LOCK

$5.49

$

In Stock, only 2 left!

0

29

Exmark 127-9334

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 127-9335

SPRING

$1.99

$

Usually ships in 3-6 days

0

90

Exmark 127-9290

CARBURETOR REPAIR KIT

$37.99

$

In Stock, Qty 20+

0

91

Exmark 127-9292

SOLENOID KIT

$45.99

$

In Stock, Qty 10

0

92

Exmark 127-9340

FLOAT KIT

$27.99

$

In Stock, only 3 left!

0

93

Exmark 127-9341

BOWL KIT

$23.99

$

In Stock, only 2 left!

0

94

Exmark 133-9960

THROTTLE SHAFT KIT

$20.99

$

In Stock, only 1 left!

0

95

Exmark 133-9959

NOZZLE AND JET KIT

$19.99

$

In Stock, only 2 left!

0

96

Exmark 133-9958

Air Jet Kit

$6.49

$

In Stock, Qty 12

0

97

Exmark 127-9345

CHOKE SHAFT KIT

$11.99

$

In Stock, only 1 left!

0
