QZE600CKA42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Kawasaki FR600V (SN: 406294345 - 408644345) (Rev A) (2020) Motion Control Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kawasaki FR600V

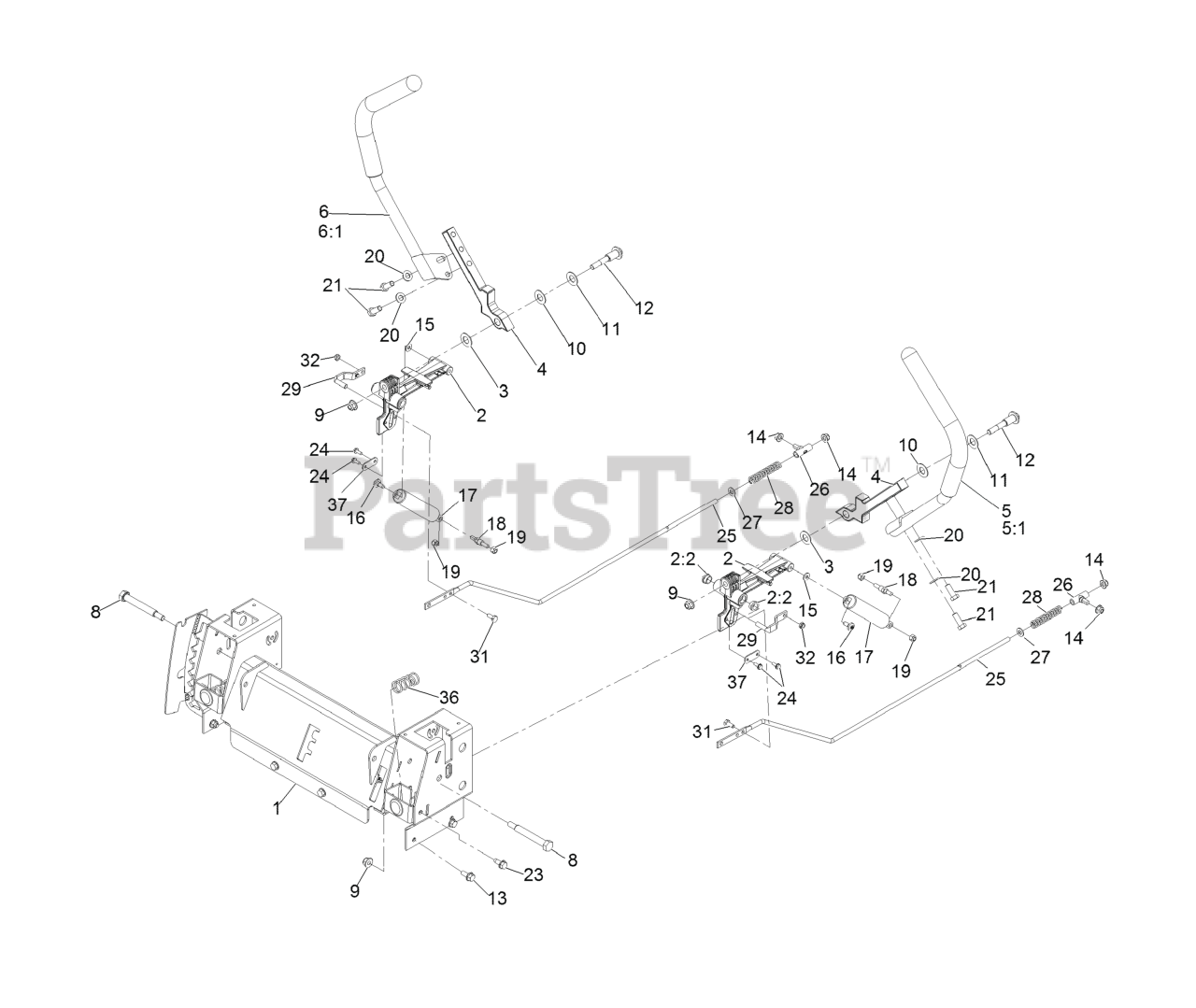

Motion Control Assembly Parts Diagram

  • Title
1

Exmark 135-0236-03

CONTROL-BOX

$188.99

$

Usually ships in 3-6 days

0

2

Exmark 119-3470

ACTUATOR ARM ASM

$27.99

$

In Stock, only 1 left!

0

2:2

Exmark 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

3

Exmark 120-2273

WASHER-NYLON

$2.99

$

In Stock, only 4 left!

0

4

Exmark 133-9299-05

ARM-CONTROL

$49.99

$

In Stock, Qty 5

0

5

Exmark 133-7055

HANDLE-CONTROL, LH

$63.99

$

In Stock, only 1 left!

0

5:1

$14.99

$

In Stock, only 2 left!

0

6

Exmark 133-7057

HANDLE-CONTROL, RH

$63.99

$

In Stock, only 1 left!

0

6:1

$14.99

$

In Stock, only 2 left!

0

8

Exmark 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 2 left!

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

$2.99

$

In Stock, Qty 20+

0

11

Exmark 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

12

Exmark 139-2556

BOLT-PIVOT

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

$0.99

$

In Stock, Qty 20+

0

16

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

17

Exmark 132-6853

DAMPER-NON CAVITATING

$35.99

$

Usually ships in 3-6 days

0

18

Exmark 110-6810

STUD-DAMPER
(Superseded to 138-7215)

$2.99

$

In Stock, only 2 left!

0

19

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

21

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

24

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 138-7217

Screw-HWH #10-24 X 1/2 Taptite

$12.99

$

In Stock, only 2 left!

0

26

Exmark 138-7218

Rod-Hydro

$12.99

$

In Stock, only 1 left!

0

27

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

29

Exmark 121-1753

PIN-ROD, HYDRO

$6.49

$

Usually ships in 3-6 days

0

31

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Exmark 119-8876

SPRING-RETURN

$2.99

$

In Stock, Qty 8

0

37

Exmark 119-8948

PLATE-STOP, HYDRO

$2.99

$

Usually ships in 3-6 days

0
