QZE600CKA42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Kawasaki FR600V (SN: 406294345 - 408644345) (Rev A) (2020) Main Frame Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kawasaki FR600V

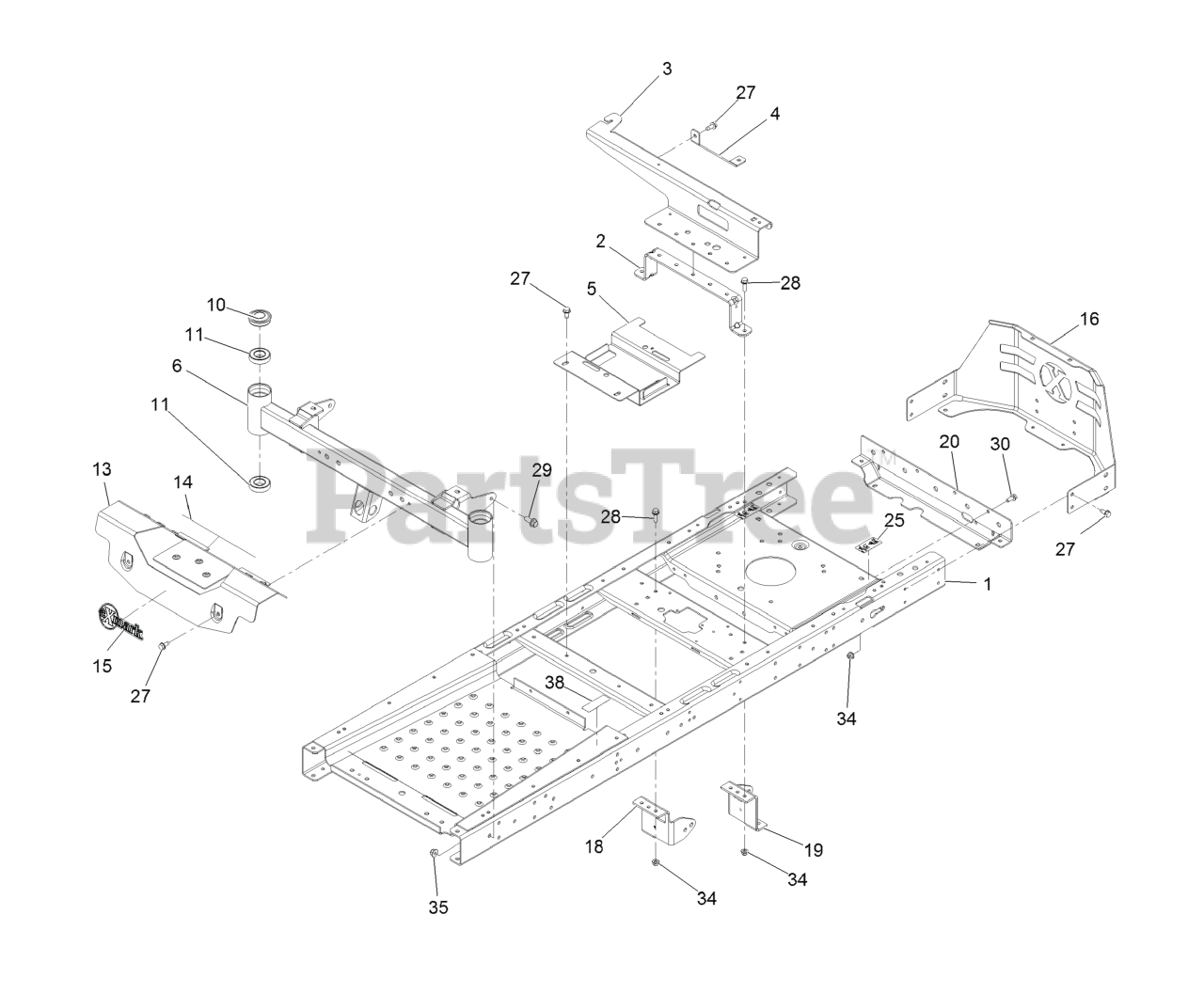

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 135-0509-01

FRAME ASM

$397.99

$

Usually ships in 3-6 days

0

2

Exmark 135-0686-03

BRACE-SEAT, REAR (NARROW)

$19.99

$

Usually ships in 3-6 days

0

3

Exmark 135-0866-03

SUPPORT-POD

$52.99

$

Usually ships in 3-6 days

0

4

Exmark 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 135-0507-03

BRACKET-BATTERY

$27.99

$

Usually ships in 3-6 days

0

6

Exmark 125-1742-01

AXLE-FRONT, NARROW

$319.99

$

Usually ships in 3-6 days

0

10

Exmark 138-7200

Cap-Grease

$5.49

$

In Stock, only 1 left!

0

11

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

13

Exmark 135-3362

FOOTREST ASM

$178.99

$

Usually ships in 3-6 days

0

14

Exmark 135-3295

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

15

Exmark 126-6575

DECAL-EXMARK LOGO

$6.49

$

In Stock, only 1 left!

0

16

Exmark 135-1882-03

GUARD-ENGINE, NARROW

$123.99

$

Usually ships in 3-6 days

0

18

Exmark 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT

$15.99

$

Usually ships in 3-6 days

0

19

Exmark 139-3211-01

Mount-Hydro, Front (Left)

$15.99

$

In Stock, only 1 left!

0

20

Exmark 130-6950-01

CROSSMEMBER-REAR, NARROW

$41.99

$

Usually ships in 3-6 days

0

25

Exmark 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

27

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

28

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

30

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

34

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0
