QZE600CKA42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Kawasaki FR600V (SN: 404314159 - 406294344) (2019) Deck Lift Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kawasaki FR600V

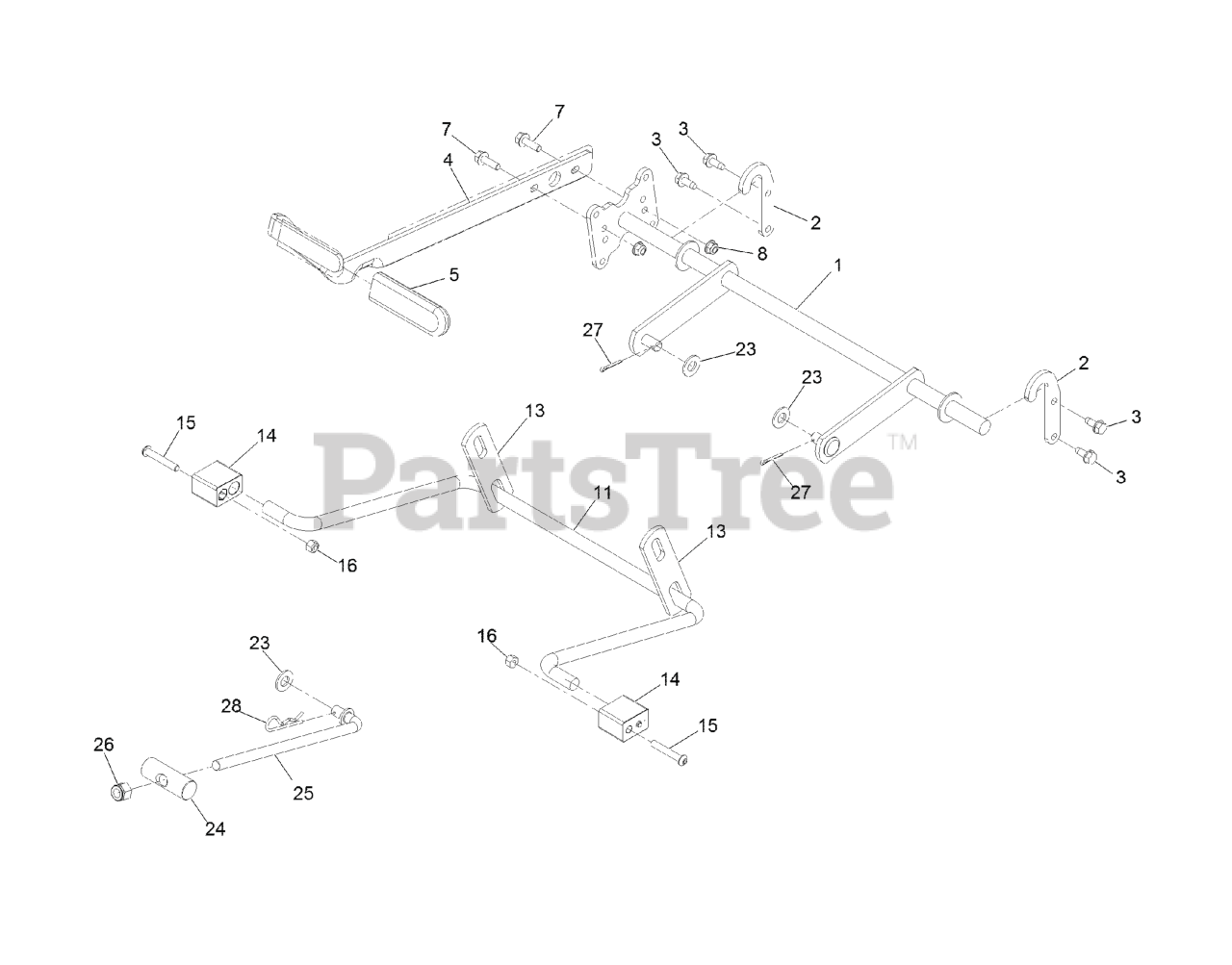

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 132-6872-03

LIFT-DECK, NARROW

$53.99

$

Usually ships in 3-6 days

0

2

Exmark 119-8875

BRACKET-LIFT
(Superseded to 138-7233)

$6.49

$

In Stock, only 3 left!

0

3

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 16

0

4

Exmark 135-2284-03

HANDLE-DECK LIFT

$34.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

7

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

11

Exmark 108-7839

ARM-LIFT, REAR
(Superseded to 138-7234)

$35.99

$

In Stock, only 4 left!

0

13

Exmark 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 8

0

14

Exmark 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, only 2 left!

0

15

Exmark 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 17

0

16

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 119-8810

PIN-PIVOT

$17.99

$

In Stock, only 2 left!

0

25

Exmark 133-4319

ROD-MOUNT, DECK

$15.99

$

In Stock, Qty 6

0

26

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

27

Exmark 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

28

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0
