QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Right Hand Hydro Transaxle Assembly No. 119-3331 Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

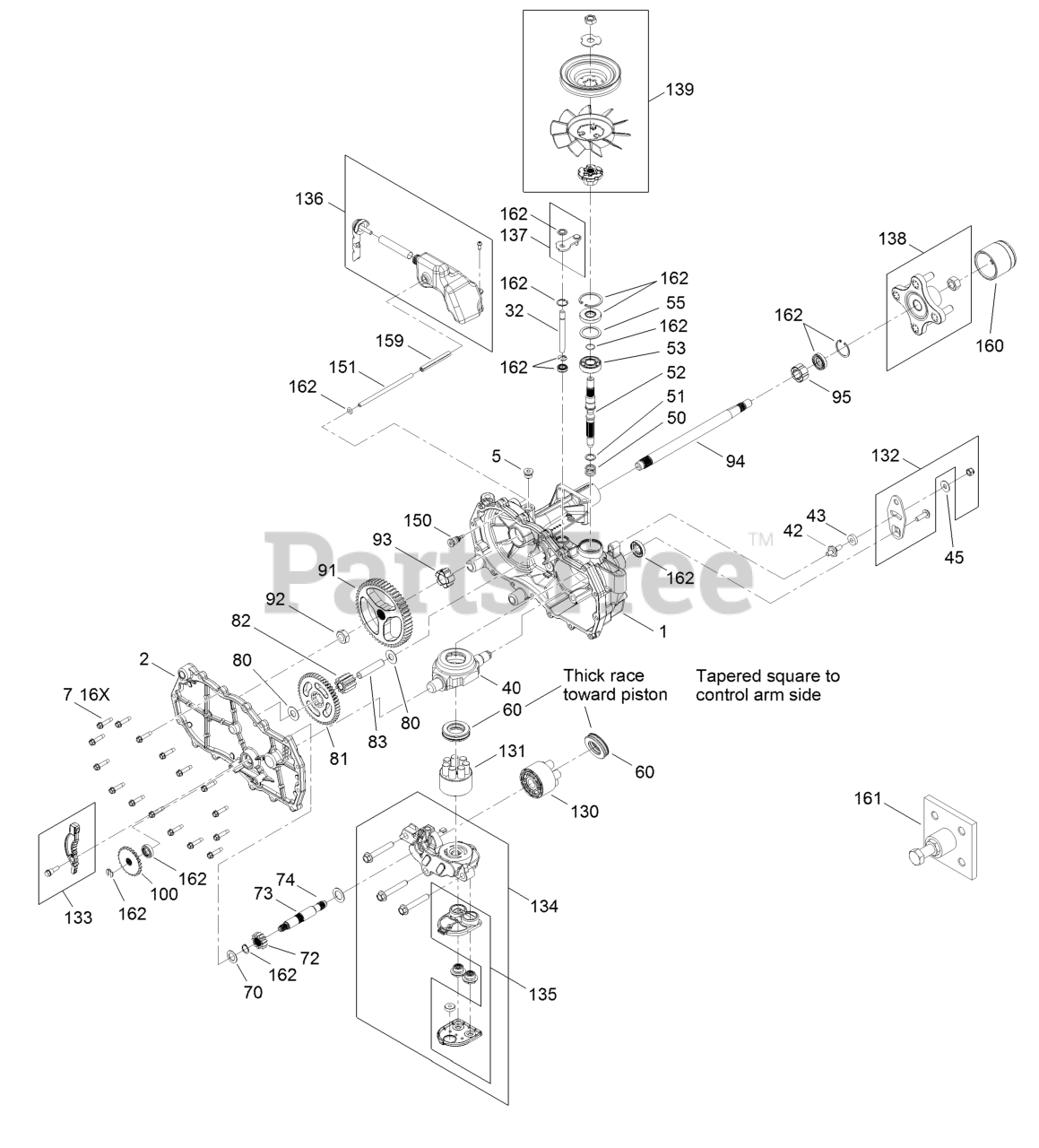

Right Hand Hydro Transaxle Assembly No. 119-3331 Parts Diagram

  • Title

1

Exmark 120-5531

Main Housing ASM

$1020.99

$

Usually ships in 3-6 days

0

2

Exmark 120-5533

Housing Side Kit

$299.99

$

Usually ships in 3-6 days

0

5

Exmark 104-2189

Plug-Thread, Straight

$27.99

$

In Stock, only 1 left!

0

7

Exmark 117-5359

Screw-HHF

$3.49

$

Usually ships in 3-6 days

0

13

Exmark 104-2147

Sealant

$115.99

$

Usually ships in 3-6 days

0

32

Exmark 106-8678

Rod-Bypass

$59.99

$

Usually ships in 3-6 days

0

40

Exmark 104-5304

Swashplate-Trunnion

$206.99

$

Usually ships in 3-6 days

0

42

Exmark 104-2116

Stud

$41.99

$

Usually ships in 3-6 days

0

43

Exmark 112-9853

Puck-Friction

$8.49

$

In Stock, only 2 left!

0

45

Exmark 114-8491

Washer

$5.49

$

Usually ships in 3-6 days

0

50

Exmark 120-5537

Spring-Compression
(Superseded to 94-1936)

$8.99

$

Usually ships in 3-6 days

0

51

Exmark 120-5538

Washer

$5.49

$

Usually ships in 3-6 days

0

52

Exmark 104-5306

Shaft-Input

$392.99

$

Usually ships in 3-6 days

0

53

Exmark 104-5311

Bearing-Ball

$46.99

$

In Stock, Qty 5

0

55

Exmark 104-5308

Spacer

$9.49

$

Usually ships in 3-6 days

0

60

Exmark 94-6922

Bearing-Thrust

$66.99

$

In Stock, only 2 left!

0

70

Exmark 104-5339

Washer-Flat

$6.99

$

Usually ships in 3-6 days

0

72

Exmark 104-5316

Gear-Pinnion, 13T

$35.99

$

Usually ships in 3-6 days

0

73

Exmark 106-8683

Shaft-Motor

$303.99

$

Usually ships in 3-6 days

0

74

Exmark 104-5360

Washer

$8.49

$

Usually ships in 3-6 days

0

80

Exmark 119-5541

Washer
(Superseded to 94-1933)

$6.49

$

Usually ships in 3-6 days

0

81

Exmark 104-5317

Gear-10T/48T

$204.99

$

Usually ships in 3-6 days

0

82

Exmark 104-5318

Gear-Jackshaft, 10T

$93.99

$

Usually ships in 3-6 days

0

83

Exmark 104-5329

Pin-Jackshaft

$119.99

$

Usually ships in 3-6 days

0

91

Exmark 120-5539

Gear-Bull

$104.99

$

Usually ships in 3-6 days

0

92

Exmark 104-2142

Nut-HJ

$13.99

$

Usually ships in 3-6 days

0

93

Exmark 115-8314

Bushing-Inboard

$9.49

$

Usually ships in 3-6 days

0

94

Exmark 120-5540

Shaft-Axle

$142.99

$

Usually ships in 3-6 days

0

95

Exmark 120-5541

Bearing-Sleeve

$13.99

$

Usually ships in 3-6 days

0

100

Exmark 106-8694

Disc-Brake, Cog

$63.99

$

In Stock, Qty 14

0

130

Exmark 103-2666

Cylinder Block Kit

$546.99

$

Usually ships in 3-6 days

0

131

Exmark 110-8561

Pump Block ASM

$383.99

$

Usually ships in 3-6 days

0

132

Exmark 117-5362

Control Arm Kit

$31.99

$

Usually ships in 3-6 days

0

133

Exmark 106-8688

Brake Arm Kit

$41.99

$

In Stock, Qty 20+

0

134

Exmark 112-9862

Center Section Filter Kit

$581.99

$

Usually ships in 3-6 days

0

135

Exmark 114-1634

Filter Kit

$46.99

$

In Stock, only 3 left!

0

136

Exmark 121-5735

LH Expansion Tank Kit

$107.99

$

Usually ships in 3-6 days

0

137

Exmark 107-2489

Bypass Arm Kit

$87.99

$

Usually ships in 3-6 days

0

138

Exmark 121-5731

Hub Kit

$208.99

$

Usually ships in 3-6 days

0

139

Exmark 121-5729

Fan Pulley Kit

$123.99

$

In Stock, only 1 left!

0

150

Exmark 104-5349

Fitting-SAE

$74.99

$

Usually ships in 3-6 days

0

151

Exmark 115-8302

Hose

$6.99

$

Usually ships in 3-6 days

0

159

Exmark 121-5728

Case-Tube

$7.49

$

Usually ships in 3-6 days

0

160

Exmark 125-0041

Cap-Axle

$35.99

$

Usually ships in 3-6 days

0

161

Exmark 114-8467

Puller-Hub, 4 Bolt
(Superseded to 130-8482)

$422.99

$

Usually ships in 3-6 days

0

162

Exmark 120-7103

Seal And Ring Kit

$33.99

$

In Stock, only 4 left!

0
