QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Piston and Cylinder Head Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

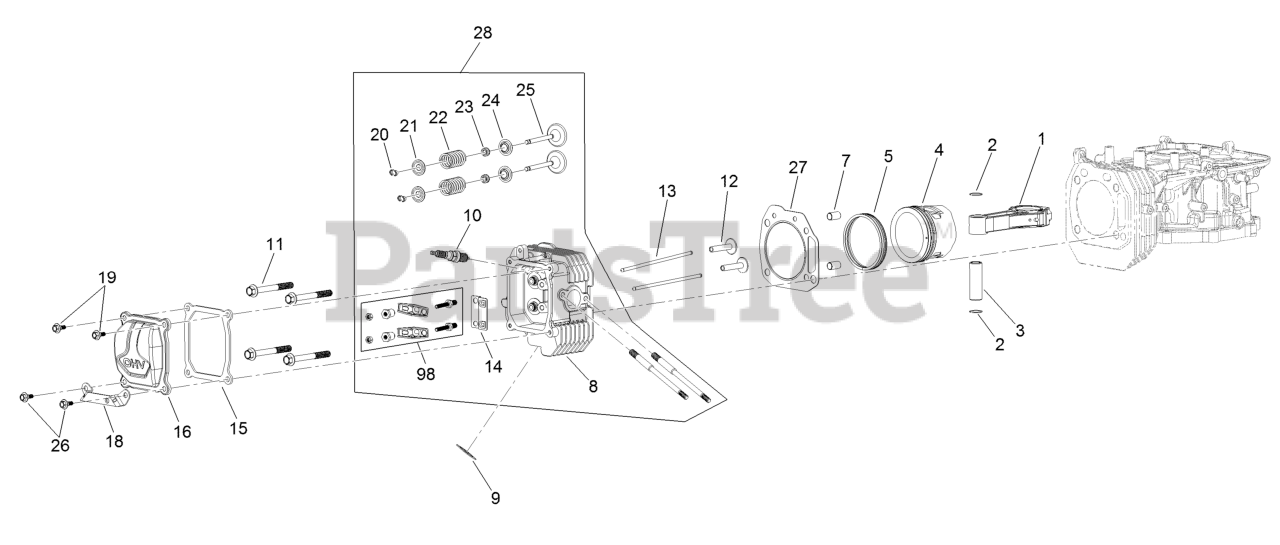

Piston and Cylinder Head Assembly Parts Diagram

  • Title

1

Exmark 120-4292

Connecting Rod ASM

$44.99

$

In Stock, only 1 left!

0

2

Exmark 120-4288

Ring-Retaining, Piston Pin

$1.49

$

In Stock, Qty 12

0

3

Exmark 120-4291

Pin-Piston

$9.49

$

Usually ships in 3-6 days

0

4

Exmark 120-4290

Piston

$59.99

$

In Stock, only 2 left!

0

5

Exmark 120-4289

Ring Set

$28.99

$

In Stock, only 1 left!

0

7

Exmark 120-4200

Pin-Dowel

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 120-4203

Head-Cylinder

$167.99

$

In Stock, only 3 left!

0

9

Exmark 120-4317

Gasket-Exhaust

$5.49

$

In Stock, only 3 left!

0

10

Exmark 77-7330

Plug-Spark

$3.49

$

In Stock, Qty 20+

0

11

Exmark 120-4205

Screw-HHF

$11.99

$

Usually ships in 3-6 days

0

12

Exmark 120-4298

Lifter-Valve

$14.99

$

Usually ships in 3-6 days

0

13

Exmark 120-4340

Rod-Push

$6.49

$

In Stock, only 2 left!

0

14

Exmark 120-4300

Plate-Guide, Push Rod

$5.49

$

In Stock, only 1 left!

0

15

Exmark 120-4206

Gasket-Cover, Valve

$9.49

$

In Stock, Qty 6

0

16

Exmark 120-4207

Cover-Valve

$17.99

$

In Stock, only 1 left!

0

18

Exmark 120-4345

Bracket-Muffler

$14.99

$

Usually ships in 3-6 days

0

19

Exmark 120-4209

Screw-Shoulder, HHF

$6.49

$

In Stock, only 1 left!

0

20

Exmark 120-4307

Keeper-Valve

$8.49

$

In Stock, only 3 left!

0

21

Exmark 120-4306

Retainer-Spring, Valve

$11.99

$

In Stock, only 1 left!

0

22

Exmark 120-4305

Spring-Valve

$6.49

$

In Stock, only 4 left!

0

23

Exmark 120-4304

Seal-Stem, Valve

$18.99

$

Usually ships in 3-6 days

0

24

Exmark 120-4303

Seat-Spring, Valve

$7.99

$

In Stock, Qty 8

0

25

Exmark 120-4302

Valve Set

$34.99

$

Usually ships in 3-6 days

0

26

Exmark 120-4210

Screw-Shoulder, HHF

$6.49

$

In Stock, only 2 left!

0

27

Exmark 120-4201

Gasket-Cyclinder

$14.99

$

In Stock, only 1 left!

0

28

Exmark 136-7888

Complete Head ASM

$253.99

$

Usually ships in 3-6 days

0

98

Exmark 136-7885

Rocker Arm Kit

$17.99

$

In Stock, only 1 left!

0
