QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Park Brake Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

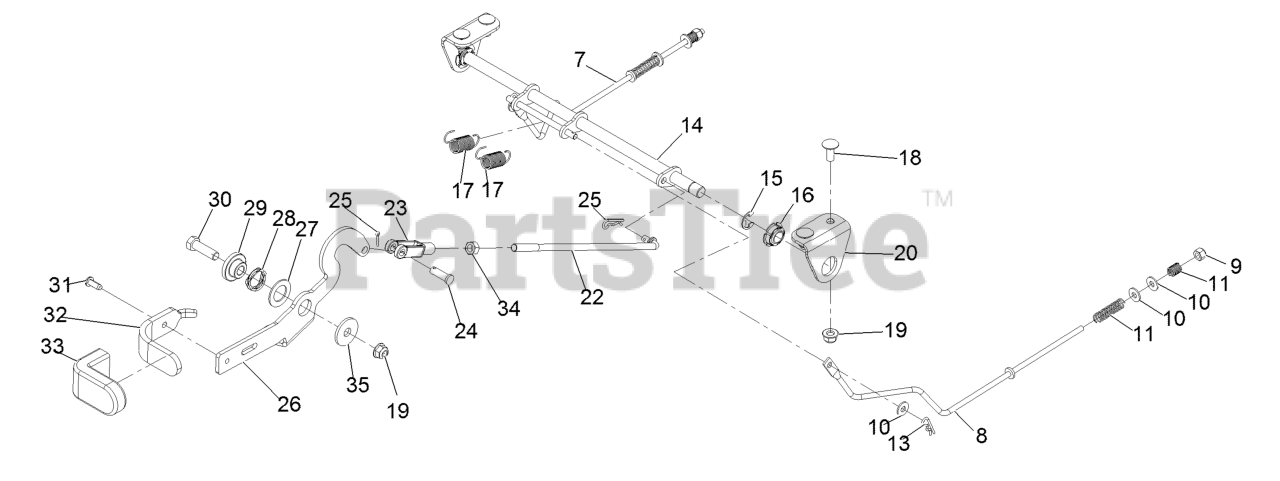

Park Brake Assembly Parts Diagram

  • Title
7

Exmark 121-2974

Rod-Brake, RH

$12.99

$

In Stock, only 1 left!

0

8

Exmark 121-2975

Rod-Brake, LH

$12.99

$

Usually ships in 3-6 days

0

9

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 9

0

10

$0.99

$

In Stock, Qty 20+

0

11

Exmark 117-1169

Spring-Compression

$2.99

$

In Stock, Qty 12

0

13

Exmark 3290-307

Pin-Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

14

Exmark 135-0148

Pivot-Brake

$90.99

$

Usually ships in 3-6 days

0

15

Exmark 32120-47

Ring-Retaining

$1.49

$

In Stock, Qty 8

0

16

Exmark 136-7469

Bearing-Spherical

$7.99

$

Usually ships in 3-6 days

0

17

Exmark 55-9280

Spring-Extension

$6.99

$

In Stock, Qty 8

0

18

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

19

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

20

Exmark 135-0147-03

Angle-Mount Pivot

$9.49

$

Usually ships in 3-6 days

0

22

Exmark 135-0164

Rod-Link Handle

$27.99

$

Usually ships in 3-6 days

0

23

Exmark 1-303105

Yoke-Adjustable

$12.99

$

In Stock, only 1 left!

0

24

Exmark 1-808280

Pin-Clevis 5/16 X 1 49/64

$2.99

$

In Stock, only 2 left!

0

25

Exmark 3272-5

Pin-Cotter 3/32 X 1/2

$1.49

$

In Stock, Qty 5

0

26

Exmark 135-0165-03

Lever-Brake

$29.99

$

Usually ships in 3-6 days

0

27

Exmark 119-7640

Washer-Thrust

$3.49

$

In Stock, Qty 12

0

28

Exmark 121-4517

Washer-Wave

$4.49

$

Usually ships in 3-6 days

0

29

Exmark 126-5989

Pivot-Flange

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

31

Exmark 63-8590

Screw-Button Head 1/4-20 X .62 Tf

$1.49

$

In Stock, only 4 left!

0

32

Exmark 135-0190-03

Handle-Brake

$14.99

$

Usually ships in 3-6 days

0

33

Exmark 132-4749

Grip-Lever

$5.49

$

In Stock, only 1 left!

0

34

Exmark 3219-2

Nut-Hex 5/16-24

$0.99

$

In Stock, Qty 11

0

35

Exmark 2844

Washer

$2.99

$

In Stock, Qty 17

0
