QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

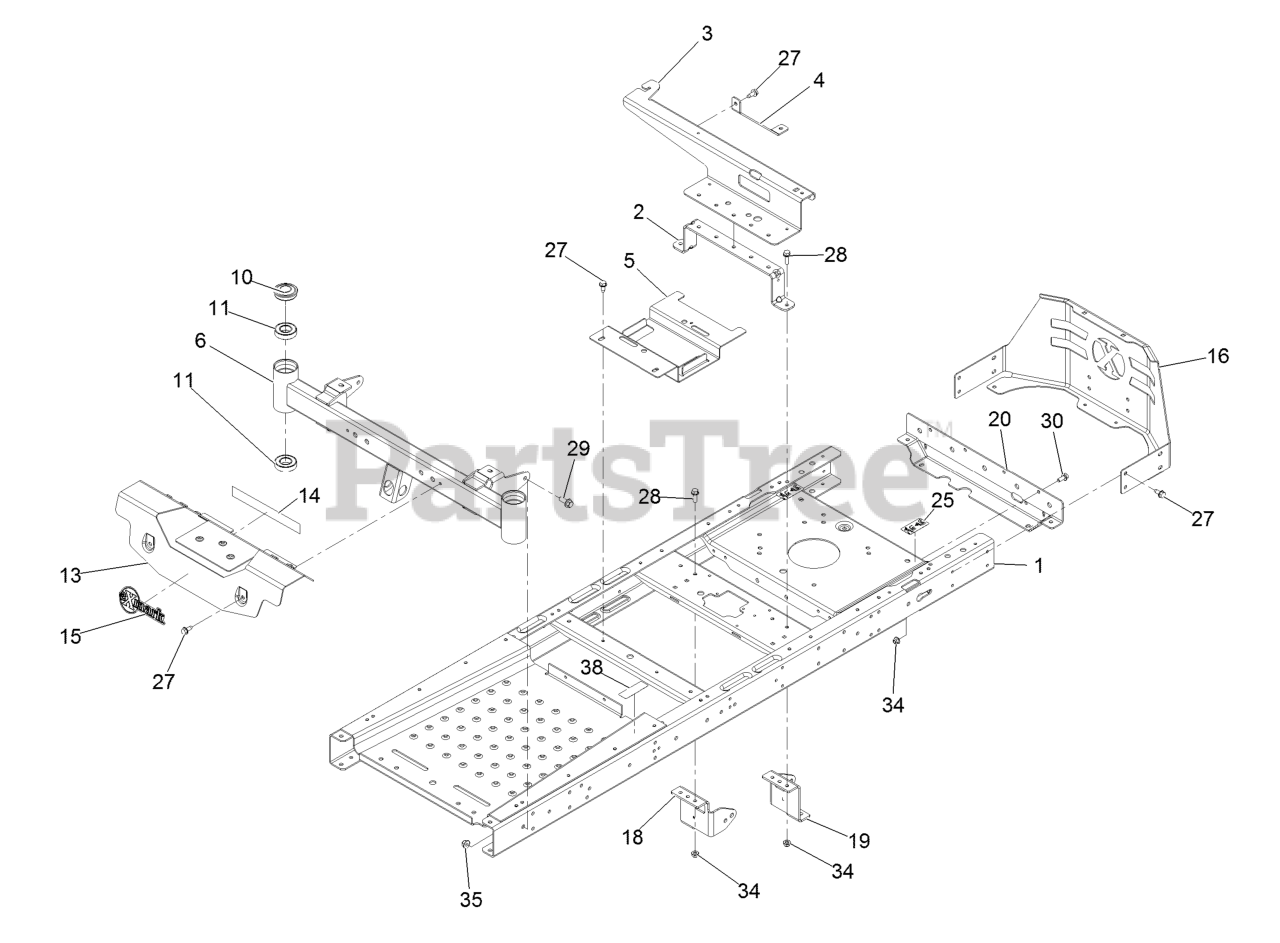

Main Frame Assembly Parts Diagram

  • Title
1

Exmark 135-0509-01

Frame ASM

$396.99

$

Usually ships in 3-6 days

0

2

Exmark 135-0686-03

Brace-Seat, Rear (Narrow)

$19.99

$

Usually ships in 3-6 days

0

3

Exmark 135-0866-03

Support-Pod [black]

$51.99

$

Usually ships in 3-6 days

0

4

Exmark 119-3431-03

Support-Tank, Rear

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 135-0507-03

Bracket-Battery

$26.99

$

Usually ships in 3-6 days

0

6

Exmark 125-1742-01

Axle-Front, Narrow

$310.99

$

Usually ships in 3-6 days

0

10

Exmark 116-4348

Cap-Grease

$5.49

$

In Stock, Qty 16

0

11

Exmark 109-3678

Bearing-Ball

$14.99

$

In Stock, Qty 20+

0

13

Exmark 135-3362

Footrest ASM

$161.99

$

Usually ships in 3-6 days

0

14

Exmark 135-3295

Decal-Warning

$5.99

$

Usually ships in 3-6 days

0

15

Exmark 126-6575

Decal-Exmark Logo

$5.99

$

In Stock, only 1 left!

0

16

Exmark 135-1882-03

Guard-Engine, Narrow [black]

$110.99

$

Usually ships in 3-6 days

0

18

Exmark 137-7020-01

Mount-Hydro, Front (Right)

$15.99

$

Usually ships in 3-6 days

0

19

Exmark 137-7021-01

Mount-Hydro, Front (Left)
(Superseded to 139-3211-01)

$14.99

$

In Stock, only 1 left!

0

20

Exmark 130-6950-01

Crossmember-Rear, Narrow

$39.99

$

Usually ships in 3-6 days

0

25

Exmark 121-2989

Decal-Bypass

$5.49

$

In Stock, only 1 left!

0

27

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

28

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 14

0

29

Exmark 3234-42

Screw HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

30

Exmark 3234-47

Screw-HH Flg 5/16-18 X 3/4

$2.99

$

In Stock, Qty 17

0

34

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

35

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

38

Exmark 115-9625

Decal-Brake, Parking

$5.49

$

Usually ships in 3-6 days

0
