QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Ignition and Electrical Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

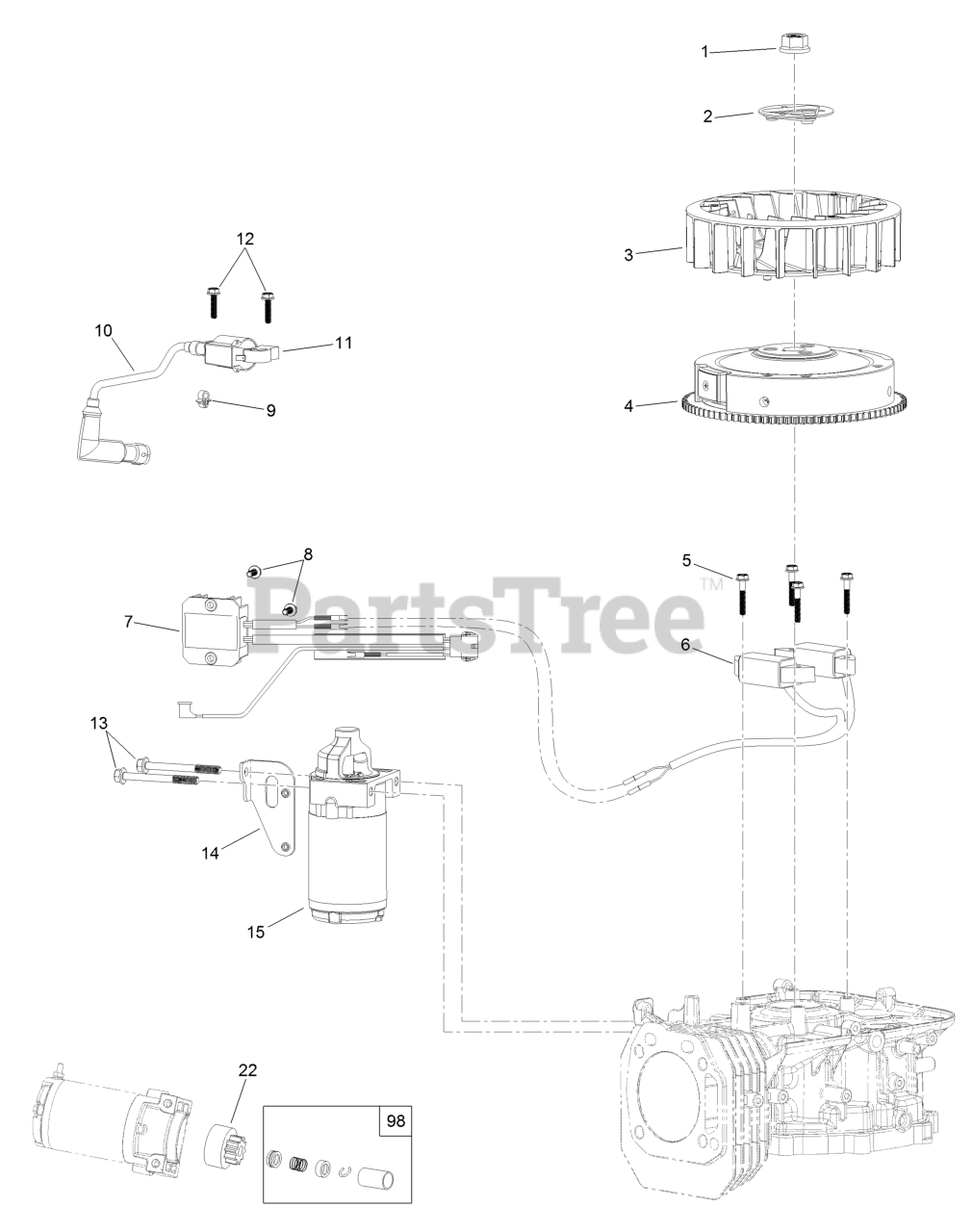

Ignition and Electrical Assembly Parts Diagram

  • Title

1

Exmark 120-4213

Nut-Flange

$5.49

$

In Stock, only 1 left!

0

2

Exmark 120-4212

Pulley-Starter

$11.99

$

In Stock, only 1 left!

0

3

Exmark 120-4211

Fan-Cooling

$34.99

$

In Stock, only 1 left!

0

4

Exmark 120-4399

Flywheel

$183.99

$

Usually ships in 3-6 days

0

5

Exmark 120-4223

Screw-HHF

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 136-7833

Alternator

$67.99

$

Usually ships in 3-6 days

0

7

Exmark 136-7836

Voltage Regulator

$103.99

$

In Stock, only 1 left!

0

8

Exmark 120-4216

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 120-4316

Clamp-Wire

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 120-4226

Boot-Plug, Spark

$12.99

$

Usually ships in 3-6 days

0

11

Exmark 136-7831

Ignition Coil ASM

$67.99

$

Usually ships in 3-6 days

0

12

Exmark 120-4225

Screw-HHF

$1.99

$

In Stock, Qty 18

0

13

Exmark 120-4231

Screw-HHF

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 120-4230

Bracket-Starter

$15.99

$

Usually ships in 3-6 days

0

15

Exmark 136-7832

Motor-Starter

$299.99

$

In Stock, Qty 10

0

22

Exmark 133-1562

Pinion-Starter

$54.99

$

Usually ships in 3-6 days

0

98

Exmark 120-4392

Starter Repair Kit

$19.99

$

In Stock, only 1 left!

0
