QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Fuel System Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

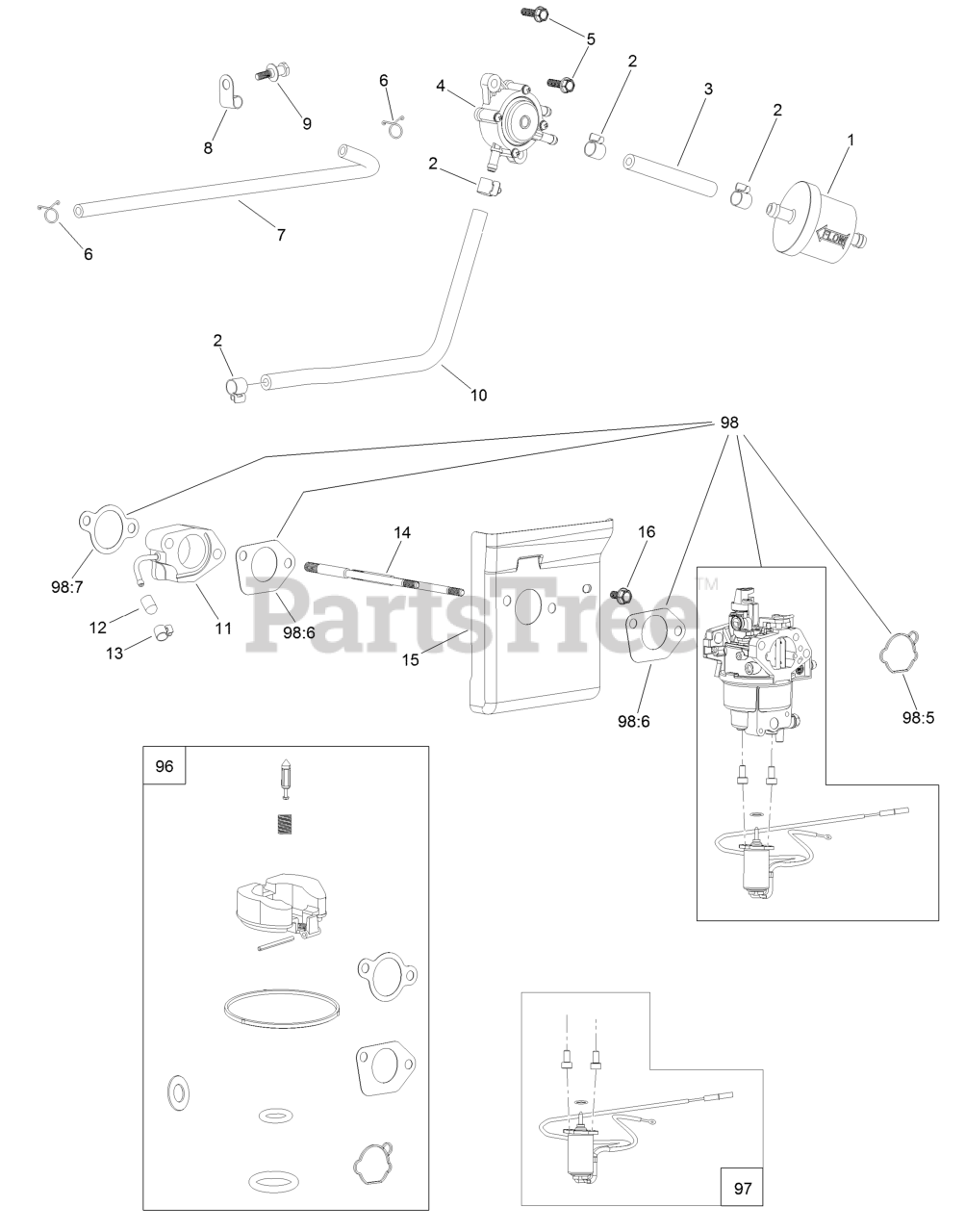

Fuel System Assembly Parts Diagram

  • Title

1

Exmark 133-1563

Filter-Fuel
(Superseded to 139-0717)

$12.99

$

In Stock, Qty 20+

0

2

Exmark 120-4251

Clamp-Fuel Line
(Superseded to 139-0719)

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 120-4371

Line-Fuel

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 120-4353

Pump-Pulse, Fuel
(Superseded to 139-0685)

$79.99

$

Usually ships in 3-6 days

0

5

Exmark 120-4232

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 121-0114

Clamp-Hose

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 136-7830

Line-Pulse

$7.99

$

In Stock, only 1 left!

0

8

Exmark 120-4287

Clamp-J

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 120-4217

Screw-Shoulder, HH

$7.99

$

In Stock, only 3 left!

0

10

Exmark 120-4370

Line-Fuel

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 136-7835

Insulator-Carburetor

$6.99

$

Usually ships in 3-6 days

0

12

Exmark 127-9189

Cap-Seal

$2.99

$

In Stock, only 1 left!

0

13

Exmark 127-9187

Clamp-Hose

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 120-4202

Stud-Mount, Carburetor

$7.99

$

In Stock, only 1 left!

0

15

Exmark 127-9182

Shroud

$18.99

$

Usually ships in 3-6 days

0

16

Exmark 120-4216

Screw-HHF

$1.49

$

Usually ships in 3-6 days

0

96

Exmark 127-9194

Carb Repair Kit With Gaskets

$28.99

$

In Stock, only 1 left!

0

97

Exmark 127-9190

Solenoid Kit

$45.99

$

In Stock, only 1 left!

0

98

Exmark 136-7826

Carburetor Kit

$124.99

$

In Stock, only 1 left!

0

98:5

Exmark 127-9185

Gasket-Carburetor

$5.49

$

In Stock, only 1 left!

0

98:6

Exmark 120-4247

Gasket-Carburetor

$2.99

$

In Stock, Qty 8

0

98:7

Exmark 120-4250

Gasket-Carburetor

$2.99

$

In Stock, Qty 8

0

99

Exmark 133-9929

High Altitude Kit

$18.99

$

Usually ships in 3-6 days

0
