QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Fuel Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

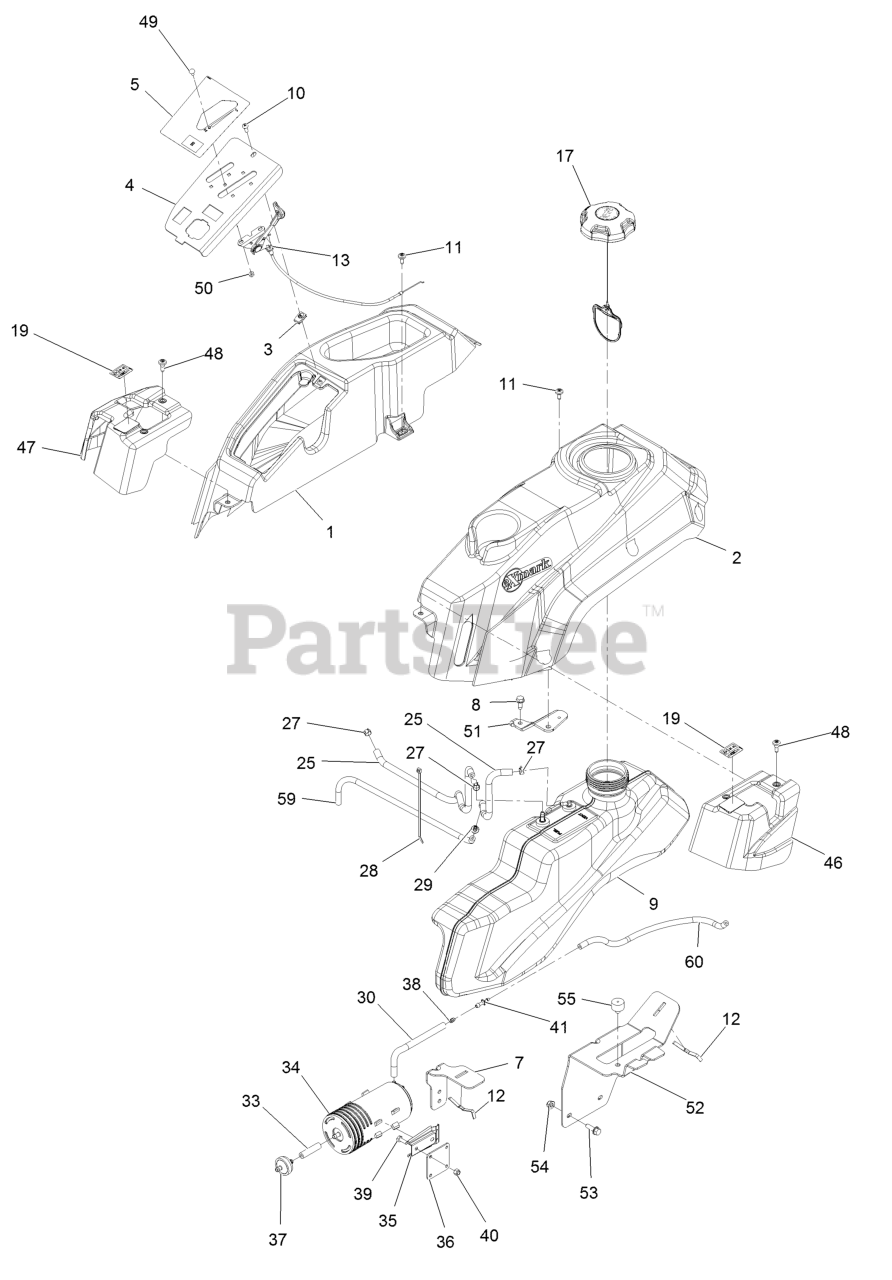

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-1546

Pod-RH, Narrow

$78.99

$

Usually ships in 3-6 days

0

2

Exmark 135-1545

Pod-LH, Narrow

$78.99

$

Usually ships in 3-6 days

0

3

Exmark 107069

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

4

Exmark 135-1402-03

Panel-Control, Narrow

$28.99

$

In Stock, only 1 left!

0

5

Exmark 135-2468

Decal-Control

$18.99

$

Usually ships in 3-6 days

0

7

Exmark 135-1564-03

Support-Tank [black]

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

9

Exmark 135-4520

Tank, Fuel

$233.99

$

Usually ships in 3-6 days

0

10

Exmark 3258-166

Screw-PPH 1/4-20 X 3/4

$0.99

$

In Stock, Qty 20+

0

11

Exmark 120-7950

Screw-1/4-20 X 1/2 Tf Torx Plus

$2.99

$

In Stock, Qty 20+

0

12

Exmark 609830

Spring

$5.49

$

In Stock, Qty 6

0

13

Exmark 135-2123

Cable Throttle Choke Control

$51.99

$

Usually ships in 3-6 days

0

17

Exmark 137-4119

Cap-Fuel, Ratcheting

$27.99

$

In Stock, Qty 6

0

19

Exmark 135-2310

Decal-Motion Control

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 109-0294

Hose-Fuel Line 10 1/2"

$6.99

$

In Stock, only 1 left!

0

25

Exmark 109-0302

Hose-Fuel Line 24"

$12.99

$

In Stock, Qty 5

0

27

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

28

Exmark 614249

Tie-Cable

$1.49

$

In Stock, only 2 left!

0

29

Exmark 117-5399

Adaptor-Orifice

$3.49

$

In Stock, only 1 left!

0

30

Exmark 110-1876

Hose-Fuel

$12.99

$

In Stock, only 1 left!

0

33

Exmark 99-9415

Hose-Fuel

$3.49

$

In Stock, Qty 5

0

34

Exmark 117-1221

Canister-Carbon, 800Cc

$75.99

$

Usually ships in 3-6 days

0

35

Exmark 114-0292

Bracket-Canister, Carbon

$12.99

$

Usually ships in 3-6 days

0

36

Exmark 119-8992-03

Plate-Adapter

$9.49

$

Usually ships in 3-6 days

0

37

Exmark 115-7854

Filter-Fuel, Inline

$7.49

$

In Stock, Qty 12

0

38

Exmark 120-2038

Cartridge-Valve, Check

$45.99

$

Usually ships in 3-6 days

0

39

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

41

Exmark 106-8150

Fitting-Straight

$3.99

$

Usually ships in 3-6 days

0

46

Exmark 135-1341

Cover, Motion Control LH

$

$

Currently unavailable

47

Exmark 135-1342

Cover, Motion Control RH

$

$

Currently unavailable

48

Exmark 135-2015

Screw-Shoulder

$3.49

$

Usually ships in 3-6 days

0

49

Exmark 1-807513

Bolt-Carriage #10-24 X 1/2

$2.99

$

In Stock, Qty 20+

0

50

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

51

Exmark 135-0868-03

Bracket-Clamp

$10.99

$

Usually ships in 3-6 days

0

52

Exmark 135-1563-03

Bracket-Support Tank

$44.99

$

Usually ships in 3-6 days

0

53

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 20+

0

54

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

55

Exmark 120-7893

Bumper-Grommet

$5.49

$

Usually ships in 3-6 days

0

59

Exmark 110-8751

Hose-Fuel

$10.99

$

Usually ships in 3-6 days

0

60

Exmark 115-7872

Hose-Fuel

$7.99

$

Usually ships in 3-6 days

0
