QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

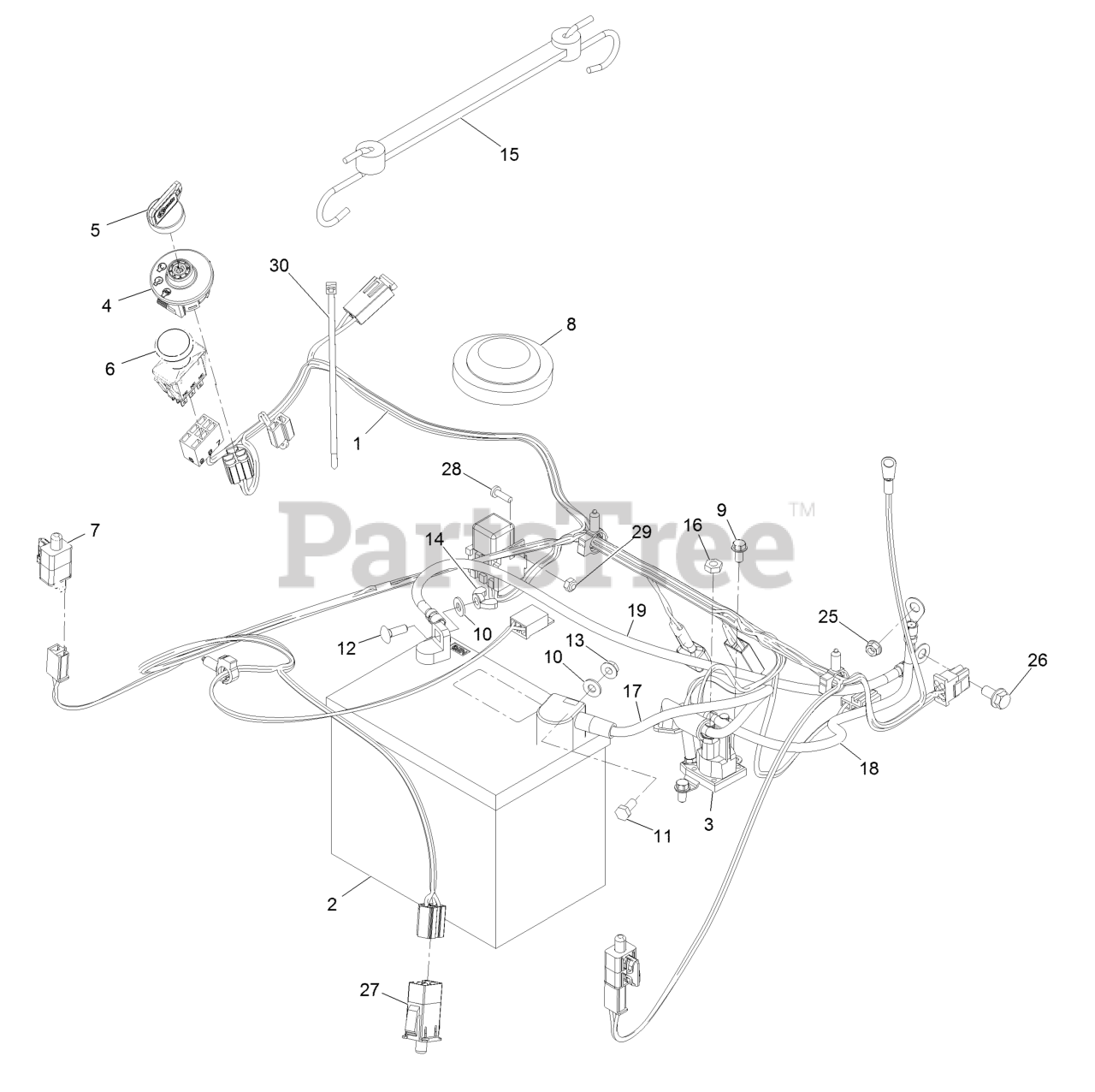

Electrical Assembly Parts Diagram

  • Title

1

Exmark 135-2467

Harness-Wire

$201.99

$

Usually ships in 3-6 days

0

2

Exmark 105-1692

Battery

$

$

Not available

3

Exmark 117-1197

Solenoid

$45.99

$

In Stock, Qty 20+

0

4

Exmark 137-4100

Switch-Ignition

$35.99

$

In Stock, Qty 20+

0

5

Exmark 103-2106

Key-Exmark Logo

$5.49

$

In Stock, Qty 7

0

6

Exmark 103-5221

Switch-PTO

$58.99

$

In Stock, Qty 20+

0

7

Exmark 110-6765

Switch

$13.99

$

In Stock, only 3 left!

0

8

Exmark 100-3524

Switch-Seat

$62.99

$

In Stock, only 4 left!

0

9

Exmark 32144-4

Screw-HWH 1/4-20 X 1/2 Taptite

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

11

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, Qty 20+

0

13

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 6

0

14

Exmark 32103-22

Nut-Wing

$2.99

$

In Stock, Qty 17

0

15

Exmark 104-2466

Holddown-Battery

$23.99

$

In Stock, Qty 6

0

16

Exmark 3220-2

Nut-Jam 5/16-24

$1.49

$

In Stock, Qty 20+

0

17

Exmark 119-8897

Cable-Battery, Red

$22.99

$

In Stock, only 1 left!

0

18

Exmark 121-0711

Cable-Battery, Positive

$14.99

$

In Stock, only 4 left!

0

19

Exmark 119-8899

Cable-Battery, Black

$17.99

$

In Stock, only 1 left!

0

25

Exmark 33003-00

Nut-Hex M6-1 Flg

$0.99

$

Usually ships in 3-6 days

0

26

Exmark 3234-14

Screw-HH Flg 5/16-18 X 5/8

$1.99

$

In Stock, Qty 20+

0

27

Exmark 104-3338

Switch-Delta

$54.99

$

Usually ships in 3-6 days

0

28

Exmark 3290-500

Screw-PPH #10-24 X 5/8

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

30

Exmark 614249

Tie-Cable

$1.49

$

In Stock, Qty 6

0
