QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

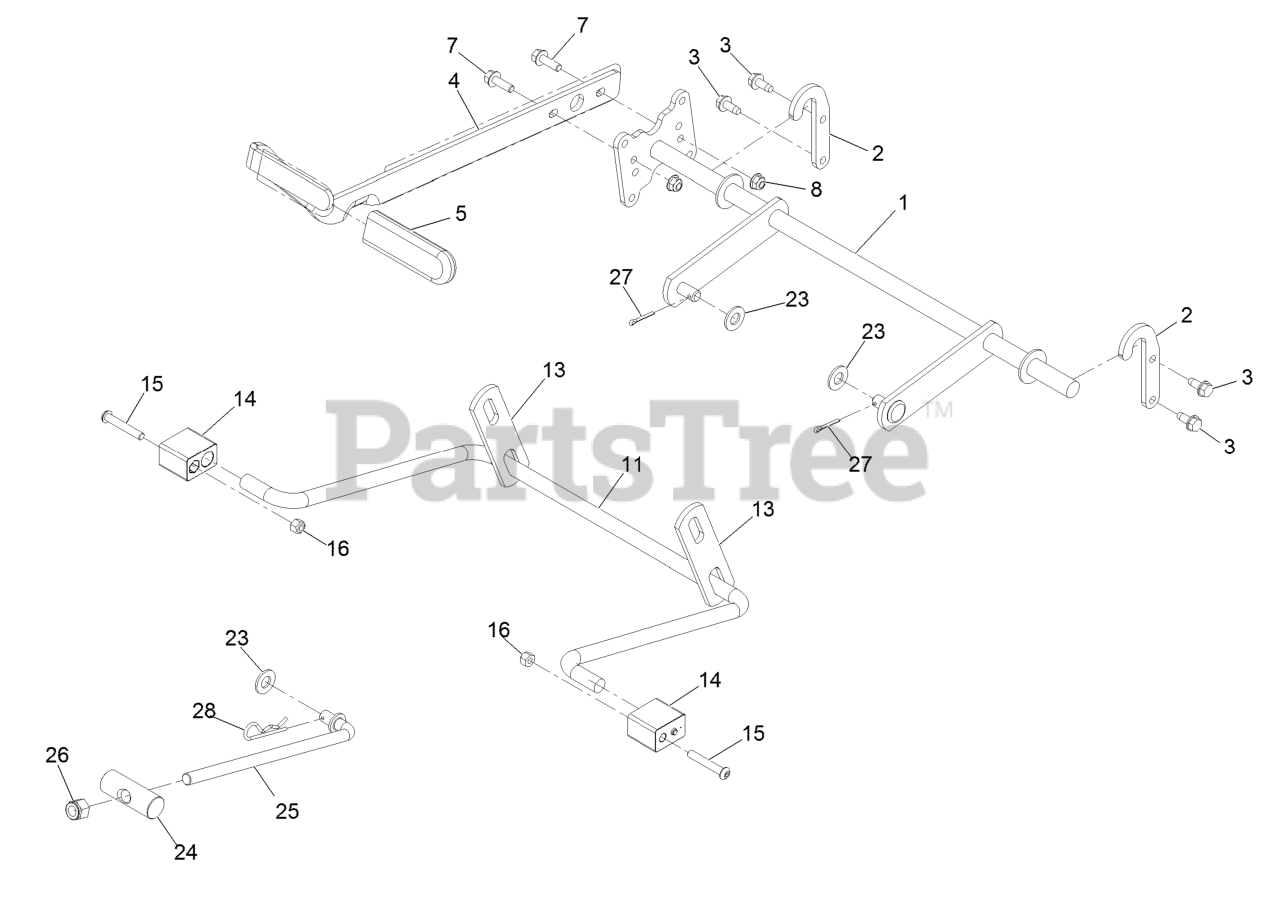

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 132-6872-03

Lift-Deck, Narrow

$53.99

$

Usually ships in 3-6 days

0

2

Exmark 119-8875

Bracket-Lift
(Superseded to 138-7233)

$6.49

$

In Stock, only 3 left!

0

3

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 16

0

4

Exmark 135-2284-03

Handle-Deck Lift

$34.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633268

Grip-Lever

$14.99

$

In Stock, only 4 left!

0

7

Exmark 3234-29

Screw-HH Flg 5/16-18 X 1

$2.99

$

In Stock, Qty 14

0

8

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

11

Exmark 108-7839

Arm-Lift, Rear
(Superseded to 138-7234)

$35.99

$

In Stock, only 4 left!

0

13

Exmark 108-7840

Link-Lift
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 8

0

14

Exmark 108-7845

Block-Pivot

$17.99

$

In Stock, only 2 left!

0

15

Exmark 120-5499

Screw-Button Head 5/16-18 X 2.00

$2.99

$

In Stock, Qty 17

0

16

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

23

Exmark 3256-26

Washer-1/2 SAE

$0.99

$

In Stock, Qty 20+

0

24

Exmark 119-8810

Pin-Pivot

$17.99

$

In Stock, only 2 left!

0

25

Exmark 133-4319

Rod-Mount, Deck

$15.99

$

In Stock, Qty 6

0

26

Exmark 3296-19

Nut-Nyloc 1/2-20

$1.49

$

In Stock, Qty 20+

0

27

Exmark 3272-11

Pin-Cotter 1/8 X 1

$1.49

$

In Stock, Qty 5

0

28

Exmark 1-806005

Hairpin-Cotter

$2.99

$

In Stock, Qty 20+

0
