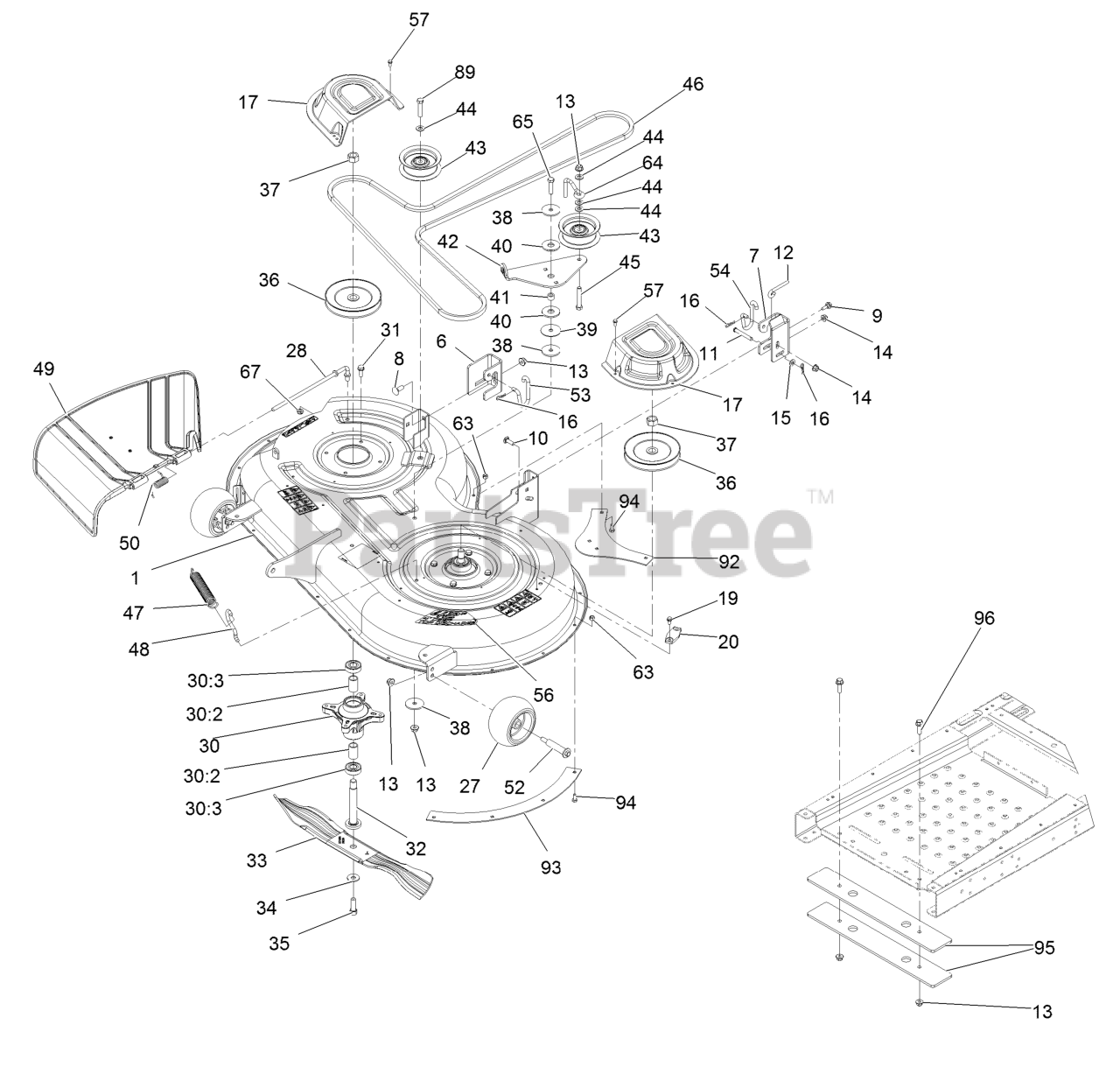

QZE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

Deck Assembly Parts Diagram

  • Title

1

Exmark 137-7041

42 Inch Deck And Decal ASM

$634.99

$

Usually ships in 3-6 days

0

6

Exmark 131-4138

Bracket-Hanger, RH

$13.99

$

In Stock, only 4 left!

0

7

Exmark 131-1091

Bracket-Hanger, LH

$14.99

$

In Stock, Qty 13

0

8

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 17

0

9

Exmark 120-7024

Screw-HH Flg 1/4-20 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

10

Exmark 3230-22

Bolt-Carriage 5/16-18 X 1 Sp
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

11

Exmark 110-0618

Pin-Clevis

$13.99

$

In Stock, Qty 6

0

12

Exmark 131-0955

Rod-Level, Deck

$7.99

$

In Stock, only 1 left!

0

13

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

14

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

16

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

17

Exmark 108-7889

Cover-Belt

$33.99

$

In Stock, only 2 left!

0

19

Exmark 32144-4

Screw-HWH 1/4-20 X 1/2 Taptite

$1.49

$

In Stock, Qty 20+

0

20

Exmark 136-4171

Cover-Washout Port

$2.99

$

Usually ships in 3-6 days

0

27

Exmark 1-603299

Roller-Scalp, Anti

$22.99

$

In Stock, Qty 20+

0

28

Exmark 137-2019

Rod-Pivot

$12.99

$

In Stock, only 1 left!

0

30

Exmark 121-0751

Spindle ASM
(Superseded to 139-3214)

$77.99

$

Usually ships in 3-6 days

0

30:2

Exmark 120-7935

Spacer

$2.99

$

In Stock, Qty 20+

0

30:3

Exmark 136-5441

Bearing-Ball

$7.99

$

In Stock, only 4 left!

0

31

Exmark 32144-41

Screw-HWH 3/8-16 X 7/8 Taptite

$5.49

$

In Stock, Qty 20+

0

32

Exmark 117-7268

Shaft-Spindle

$29.99

$

In Stock, Qty 20+

0

33

Exmark 137-1999-03

Blade-21.6 In

$27.99

$

In Stock, Qty 12

0

34

Exmark 3290-465

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

35

Exmark 26-0671

Screw-HH 7/16-20 X 1.36 Gr8

$9.49

$

In Stock, Qty 20+

0

36

Exmark 125-5574

Pulley
(Superseded to 139-2433)

$38.99

$

In Stock, Qty 16

0

37

Exmark 3219-6

Nut-Hex 5/8-18

$3.99

$

In Stock, Qty 20+

0

38

Exmark 63-7400

Washer-Rebound

$2.99

$

In Stock, Qty 5

0

39

Exmark 120-2229

Washer

$2.99

$

In Stock, Qty 20+

0

40

Exmark 114-0463

Washer-Friction, Composite

$5.49

$

In Stock, Qty 9

0

41

Exmark 115-4986

Spacer

$2.99

$

In Stock, Qty 10

0

42

Exmark 114-8540

Arm-Idler

$21.99

$

In Stock, only 3 left!

0

43

Exmark 132-9420

Pulley-Idler, Flat

$34.99

$

In Stock, Qty 20+

0

44

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

45

Exmark 323-11

Screw-HH 3/8-16 X 2 1/4

$2.49

$

In Stock, Qty 20+

0

46

Exmark 119-8819

V-Belt
(Superseded to 119-8819-SL)

$54.99

$

Usually ships in 3-6 days

0

47

Exmark 106-2177

Spring-Extension

$14.99

$

In Stock, only 2 left!

0

48

Exmark 88-5970

Hook-Return, Spring
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 10

0

49

Exmark 137-7046

Deflector

$76.99

$

Usually ships in 3-6 days

0

50

Exmark 110-6694

Spring-Torsion

$6.49

$

In Stock, Qty 7

0

52

Exmark 112-3977

Bolt-HH Shoulder 3/8-16 X 3.79

$11.99

$

In Stock, Qty 15

0

53

Exmark 131-8734

Link-Retention, Deck (RH)

$7.99

$

In Stock, only 1 left!

0

54

Exmark 131-4131

Link-Retention, Deck (LH)

$7.99

$

In Stock, only 4 left!

0

56

Exmark 117-1222

Decal

$8.99

$

In Stock, only 4 left!

0

57

Exmark 32144-1

Screw-HWH #10-24 X 1/2 Taptite

$3.49

$

In Stock, Qty 8

0

63

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

64

Exmark 107-7307

Guide-Idler, Belt
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 6

0

65

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

67

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

89

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

0

92

Exmark 137-2036-03

Baffle-Blowout, Rear

$18.99

$

In Stock, only 1 left!

0

93

Exmark 137-2037-03

Baffle-Blowout, Side

$11.99

$

In Stock, only 1 left!

0

94

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, Qty 20+

0

95

Exmark 120-2267-01

Plate-Weight

$28.99

$

Usually ships in 3-6 days

0

96

Exmark 119-4061

Screw-HHF

$2.49

$

In Stock, only 2 left!

0
