QV-8000 - Echo QuikVent Chainsaw (Type 1E) (SN: C90303001001 - C90303999999) Ignition, Starter Parts Diagram

QuikVent Chainsaw (Type 1E)

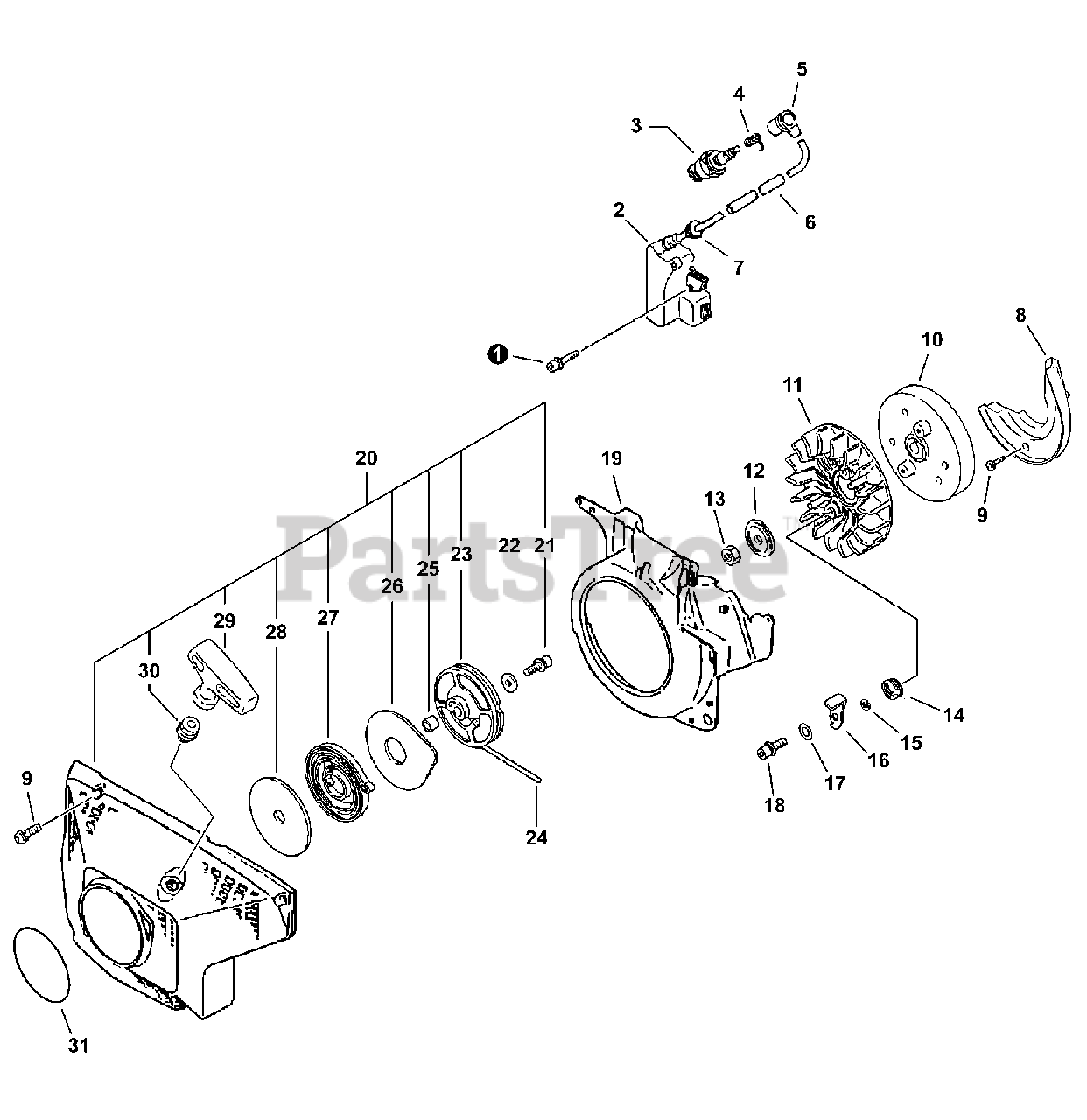

Ignition, Starter Parts Diagram

  • Title
1

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0

2

Echo 15660130831

COIL, IGNITION
(Superseded to 15660130832)

$138.99

$

Usually ships in 2-4 days

0

3

Echo 15901716431

PLUG, SPARK -- CJ-6Y
(Superseded to Discontinued)

$

$

Not available

4

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

$2.49

$

Usually ships in 2-4 days

0

7

$0.99

$

Usually ships in 2-4 days

0

8

Echo 10153438730

PLATE, GUIDE - Gray
(Superseded to Discontinued)

$

$

Not available

8

Echo 10153430830

PLATE, GUIDE - Orange

$9.49

$

Usually ships in 2-4 days

0

9

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

10

Echo 15680032631

FLYWHEEL

$104.99

$

Usually ships in 2-4 days

0

11

Echo 10152130832

FAN, COOLING

$37.99

$

Usually ships in 2-4 days

0

12

$1.49

$

In Stock, only 4 left!

0

13

Echo 43301912330

FLANGE NUT 8
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

14

Echo 17723430830

SPRING, RETURN

$1.49

$

In Stock, only 3 left!

0

15

Echo 17724712331

SPACER, RATCHET

$2.99

$

In Stock, Qty 7

0

16

Echo 17721830830

PAWL, STARTER

$4.99

$

In Stock, only 1 left!

0

17

Echo 90060300005

WASHER 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 90016205030

BOLT 5×30

$0.99

$

In Stock, Qty 6

0

19

Echo 10153538830

COVER, FAN - Gray

$14.99

$

Usually ships in 2-4 days

0

19

Echo 10153530830

COVER, FAN - Orange

$11.99

$

Usually ships in 2-4 days

0

20

Echo 17720059630

STARTER ASY - Gray
(Superseded to 17720059631)

Note: Includes Items 21-30

$159.99

$

Usually ships in 2-4 days

0

20

Echo 17720031731

STARTER ASY - Orange
(Superseded to 17720059630)

Note: Includes Items 21-30

$159.99

$

Usually ships in 2-4 days

0

21

Echo 90016205014

SCREW 5×14

$1.49

$

In Stock, Qty 20+

0

22

$0.99

$

In Stock, Qty 5

0

23

Echo 17720614330

DRUM, STARTER

$29.99

$

In Stock, only 1 left!

0

24

Echo 17722607060

ROPE, STARTER - 4mm×900mm

$10.99

$

In Stock, Qty 9

0

25

$1.99

$

In Stock, Qty 20+

0

26

Echo 17724230830

PLATE, STARTER

$4.49

$

In Stock, only 1 left!

0

27

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 8

0

28

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 7

0

29

Echo 17722832630

GRIP, STARTER

$16.99

$

Usually ships in 2-4 days

0

30

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

31

Echo 89011238130

LABEL, ECHO
(Superseded to 89011817930)

$7.99

$

In Stock, Qty 9

0
