QV-8000 - Echo QuikVent Chainsaw (Type 1E) (SN: C90303001001 - C90303999999) Handles, Throttle Control, Fuel System Parts Diagram

QuikVent Chainsaw (Type 1E)

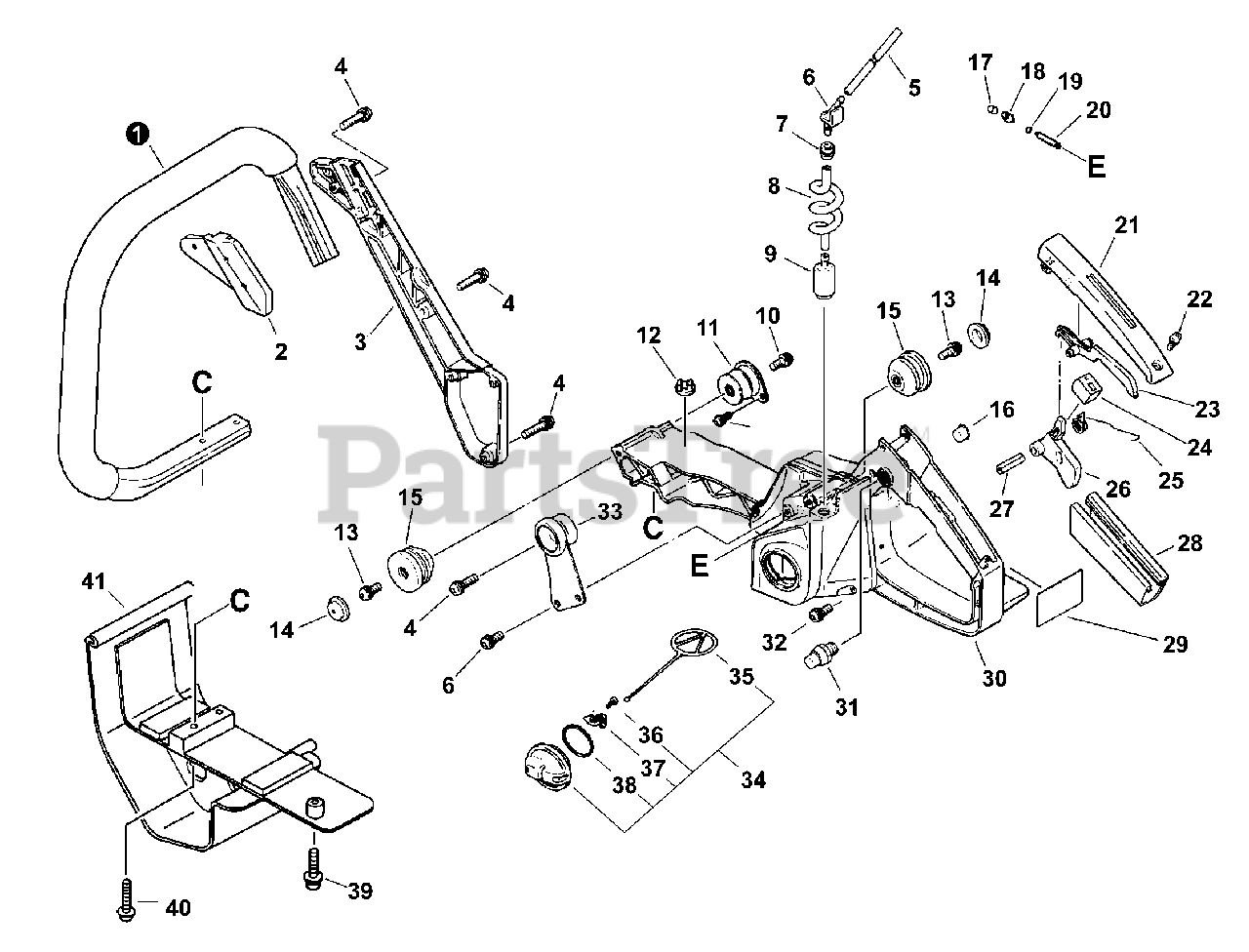

Handles, Throttle Control, Fuel System Parts Diagram

  • Title

1

Echo 35160630830

HANDLE, FRONT
(Superseded to 35160630831)

$73.99

$

Usually ships in 2-4 days

0

2

Echo 35161438731

BRACKET, HANDLE - Gray

$16.99

$

Usually ships in 2-4 days

0

2

Echo C405000320

BRACKET, HANDLE - Orange

$15.99

$

Usually ships in 2-4 days

0

3

Echo 35161338731

SUPPORTER, FRONT HANDLE - Gray

$43.99

$

Usually ships in 2-4 days

0

3

Echo C405000330

SUPPORTER, FRONT HANDLE - Orange

$33.99

$

In Stock, only 1 left!

0

4

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo 13201202960

PIPE, FUEL
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

6

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$4.49

$

In Stock, only 1 left!

0

7

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 17

0

8

Echo 13201030830

PIPE
(Superseded to 13201030831)

$5.99

$

Usually ships in 2-4 days

0

9

Echo 13120519830

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

10

Echo 90016204010

BOLT 4×10

$1.49

$

In Stock, only 3 left!

0

11

Echo 10092230830

CUSHION

$11.99

$

In Stock, only 1 left!

0

12

Echo 10025230830

CUSHION

$0.99

$

In Stock, Qty 10

0

13

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0

14

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 8

0

15

Echo 10091030830

CUSHION

$9.99

$

In Stock, only 2 left!

0

16

Echo 13132932330

PLUG

$2.49

$

In Stock, only 2 left!

0

17

Echo 13130056430

VALVE, CHECK
(Superseded to 13130056431)

$7.49

$

In Stock, Qty 11

0

18

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

19

Echo 13011100530

CLIP

$0.99

$

In Stock, Qty 20+

0

20

Echo 43721031730

PIPE - 3×5×55MM
(Superseded to 43721031731)

$9.49

$

In Stock, only 1 left!

0

21

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

0

22

Echo 90016204014

BOLT 4×14

$1.49

$

In Stock, Qty 5

0

23

Echo 17809037930

LOCKOUT, THROTTLE CONTROL

$4.99

$

Usually ships in 2-4 days

0

24

Echo 17807332430

CUSHION, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

25

Echo 17804319830

SPRING, THROTTLE RETURN

$2.49

$

In Stock, Qty 10

0

26

Echo 17801038130

TRIGGER, THROTTLE - Gray

$5.99

$

In Stock, Qty 5

0

26

Echo 17801019830

TRIGGER, THROTTLE - Orange

$4.49

$

Usually ships in 2-4 days

0

27

Echo 90034250025

SPRING PIN 5×25

$1.49

$

In Stock, Qty 10

0

28

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0

29

Echo 89015530130

LABEL, CAUTION
(Superseded to X524000680)

$3.99

$

Usually ships in 2-4 days

0

30

Echo 35110338732

HANDLE/FUEL TANK - Gray
(Superseded to 35110338733)

$195.99

$

Usually ships in 2-4 days

0

30

Echo 35110330832

HANDLE/FUEL TANK - Orange
(Superseded to 35110330833)

$169.99

$

Usually ships in 2-4 days

0

31

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

32

Echo 90022004014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

33

Echo 10091730830

CUSHION

$22.99

$

Usually ships in 2-4 days

0

34

Echo 13100437631

FUEL TANK CAP ASY
(Superseded to 13100437632)

Note: Includes Items 35-38

$3.49

$

In Stock, Qty 14

0

35

Echo 13105119830

LINK
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

36

Echo 90024603008

SCREW 3×8

$

$

Not available

37

Echo 13105019830

REATINER, LINK
(Superseded to Discontinued)

$

$

Not available

38

Echo 90072000029

O-RING 29

$3.49

$

In Stock, Qty 18

0

39

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

40

Echo 90016205030

BOLT 5×30

$0.99

$

In Stock, Qty 10

0

41

Echo 30510531730

STAND

$227.99

$

Usually ships in 2-4 days

0
