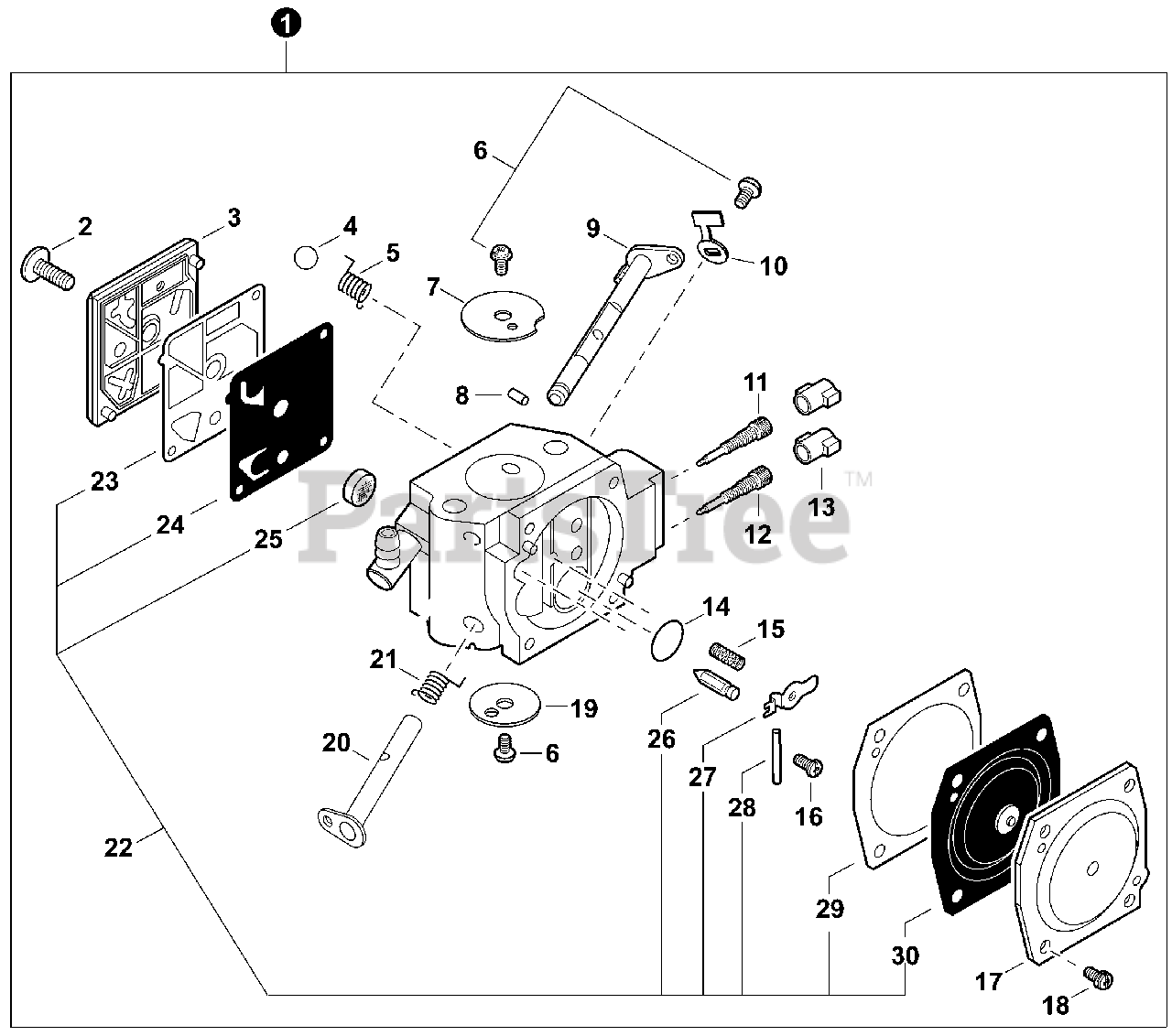

QV-8000 - Echo QuikVent Chainsaw (Type 1E) (SN: 001001 - 999999) Carburetor Parts Diagram

QuikVent Chainsaw (Type 1E)

Carburetor Parts Diagram

  • Title
1

Echo 12300038832

CARBURETOR - HDA-153B

Note: Includes items 2-30

$138.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12312419830

COVER, FUEL PUMP

$7.99

$

Usually ships in 2-4 days

0

4

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

Usually ships in 2-4 days

0

5

$1.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

7

Echo 12313217330

VALVE, CHOKE
(Superseded to Discontinued)

$

$

Not available

8

Echo 12317815030

PLUG, FRICTION

$4.99

$

Usually ships in 2-4 days

0

9

Echo 12313119830

SHAFT, CHOKE

$5.49

$

Usually ships in 2-4 days

0

10

Echo 12315630830

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

11

Echo 12312032631

NEEDLE, HIGH SPEED

$4.49

$

In Stock, only 3 left!

0

12

Echo 12311802261

NEEDLE, MIXTURE

$3.99

$

In Stock, Qty 13

0

13

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

14

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

15

$2.49

$

Usually ships in 2-4 days

0

16

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

17

Echo 12314217330

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

18

$1.99

$

Usually ships in 2-4 days

0

19

Echo 12311616130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

20

Echo 12311732430

SHAFT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

21

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

22

Echo P033000000

REPAIR KIT

Note: Includes items 23-30

$13.99

$

In Stock, only 1 left!

0

23

Echo 12312512330

GASKET, FUEL PUMP

$2.99

$

In Stock, only 1 left!

0

24

Echo 12311212330

DIAPHRAGM, FUEL PUMP

$6.49

$

Usually ships in 2-4 days

0

25

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 19

0

26

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

27

Echo 12312318330

LEVER, METERING

$4.49

$

Usually ships in 2-4 days

0

28

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

29

Echo 12314016131

GASKET, METERING DIAPHRAGM

$14.99

$

Usually ships in 2-4 days

0

30

Echo P003004920

DIAPHRAGM, METERING
(Superseded to 12314116131)

$13.99

$

Usually ships in 2-4 days

0
