QV-8000 - Echo QuikVent Chainsaw (Type 1E) (Original Version) Ignition, Starter Asy Parts Diagram

QuikVent Chainsaw (Type 1E)

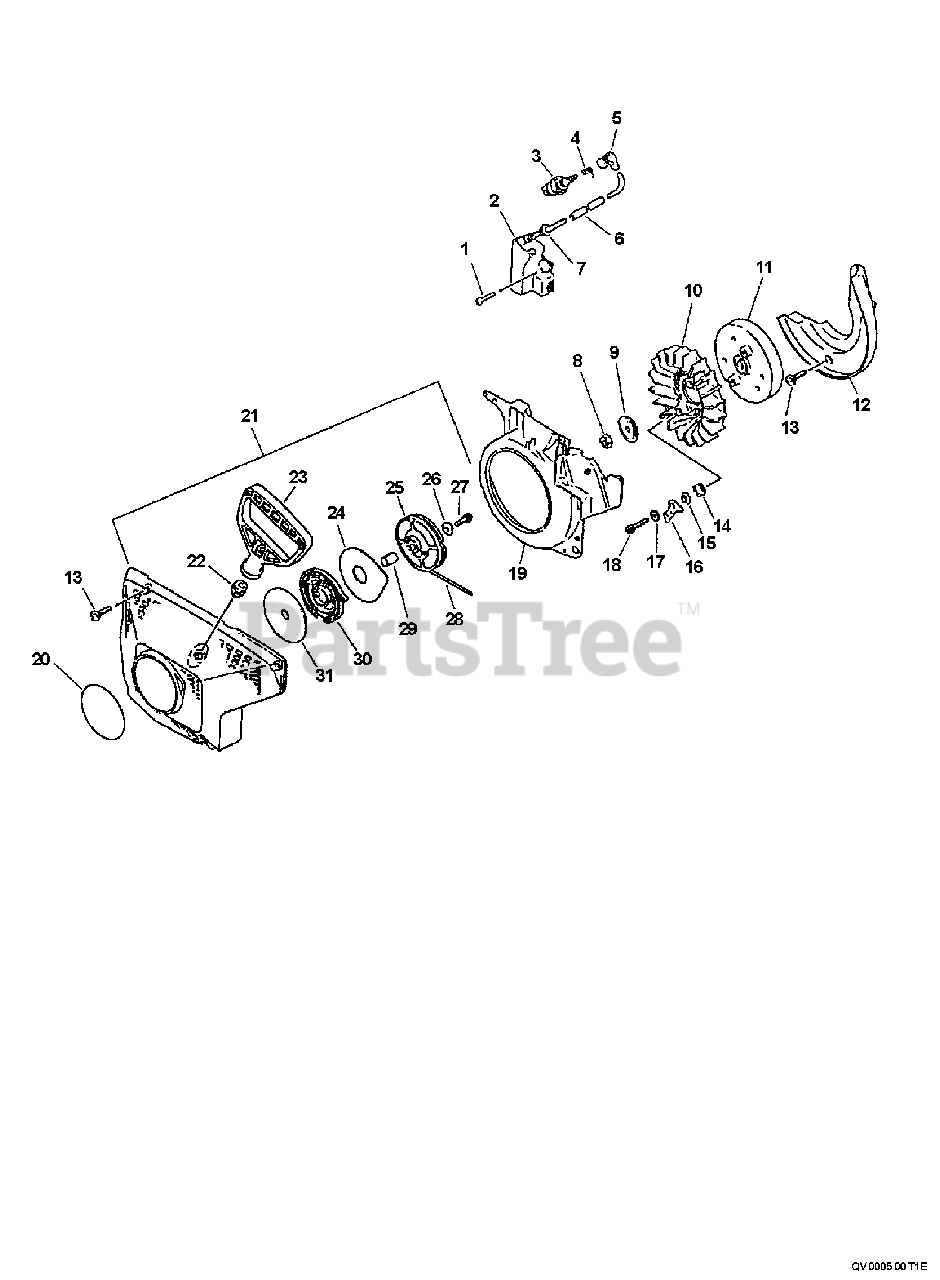

Ignition, Starter Asy Parts Diagram

  • Title
1

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

2

Echo 15660130831

COIL, IGNITION
(Superseded to 15660130832)

$138.99

$

Usually ships in 2-4 days

0

3

Echo 15901716431

SPARK PLUG -- CJ-6Y
(Superseded to Discontinued)

$

$

Not available

4

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

$2.49

$

Usually ships in 2-4 days

0

7

$0.99

$

Usually ships in 2-4 days

0

8

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

9

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, only 4 left!

0

$37.99

$

Usually ships in 2-4 days

0

11

Echo 15680032631

FLYWHEEL

$104.99

$

Usually ships in 2-4 days

0

12

Echo 10153438730

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

13

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

14

Echo 17723430830

SPRING, RETURN

$1.49

$

In Stock, only 3 left!

0

15

$2.99

$

In Stock, Qty 7

0

16

Echo 17721830830

PAWL, STARTER

$4.99

$

In Stock, only 1 left!

0

17

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

19

Echo 10153538830

SHIELD, FAN

$14.99

$

Usually ships in 2-4 days

0

20

Echo 89011238130

LABEL - ECHO
(Superseded to 89011817930)

$7.99

$

In Stock, Qty 9

0

21

Echo 17720059630

STARTER ASSY
(Superseded to 17720059631)

Note: INCLUDES 22-31

$159.99

$

Usually ships in 2-4 days

0

22

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

23

Echo 17722832630

GRIP, STARTER

$16.99

$

Usually ships in 2-4 days

0

24

Echo 17724230830

PLATE, STARTER

$4.49

$

In Stock, only 1 left!

0

25

Echo 17720614330

REEL, ROPE

$29.99

$

In Stock, only 1 left!

0

26

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

27

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

28

Echo 17722607060

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$10.99

$

In Stock, Qty 9

0

29

$1.99

$

In Stock, Qty 20+

0

30

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 8

0

31

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 7

0
