QV-8000 - Echo QuikVent Chainsaw (Type 1E) (Original Version) Engine, Cylinder, Oil Cap, Chain Catcher Parts Diagram

QuikVent Chainsaw (Type 1E)

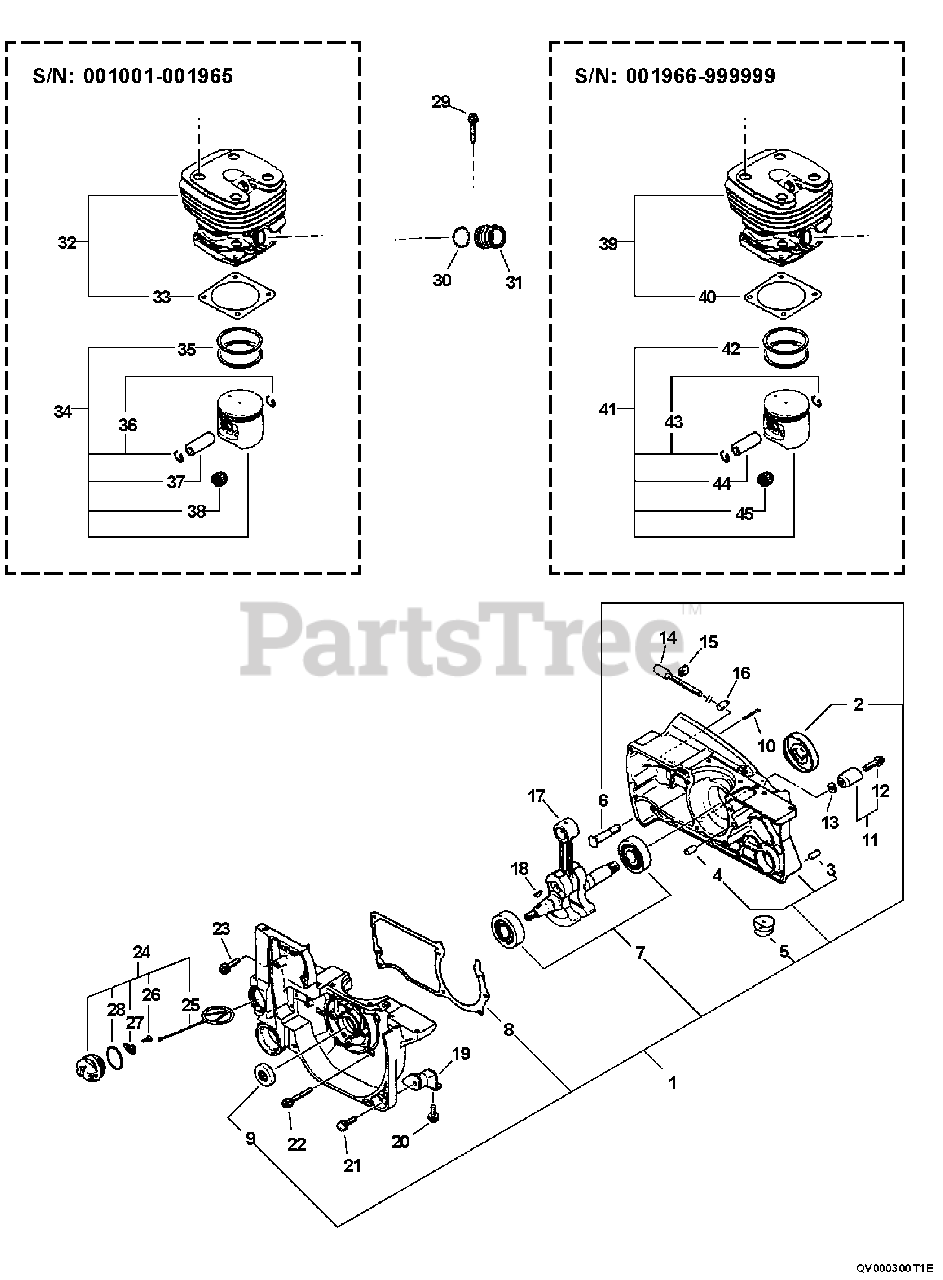

Engine, Cylinder, Oil Cap, Chain Catcher Parts Diagram

  • Title
1

Echo 10020438830

CRANKCASE KIT - GRAY
(Superseded to 10020438831)

Note: INCLUDES ITEMS 2-9

$

$

Not available

2

Echo 10021330830

SEAL, OIL

$5.99

$

In Stock, only 1 left!

0

3

Echo 90034550010

PIN - SPRING -- 5X10

$1.49

$

Usually ships in 2-4 days

0

4

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

5

$4.99

$

Usually ships in 2-4 days

0

6

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

Usually ships in 2-4 days

0

7

Echo 90081036203

BEARING, BALL - 6203

$12.99

$

Usually ships in 2-4 days

0

8

Echo 10024230830

GASKET, CRANKCASE

$5.99

$

In Stock, only 1 left!

0

9

Echo 10021219830

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

10

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

11

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

Note: Includes ITEM 12

$2.99

$

In Stock, Qty 6

0

12

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

13

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 43301611031

SCREW, TENSIONER

$4.49

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 15

0

16

Echo 43301402830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

17

Echo 10010030830

CRANKSHAFT ASSY

$212.99

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 11

0

19

$9.99

$

In Stock, only 1 left!

0

20

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0

21

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

22

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

23

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

24

Echo 43600138830

CAP ASSY

Note: INCLUDES ITEMS 25-28

$9.99

$

In Stock, only 3 left!

0

25

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

26

Echo 90024603008

SCREW - 3X8

$

$

Not available

27

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

28

Echo 90072100025

O-RING - 25

$2.49

$

In Stock, Qty 20+

0

29

Echo 90016206025

SCREW - 6X25

$1.49

$

Usually ships in 2-4 days

0

$1.99

$

In Stock, only 3 left!

0

31

Echo 13051030830

ADAPTOR, INTAKE

$10.99

$

In Stock, only 1 left!

0

32

Echo 10100130833

CYLINDER KIT
(Superseded to P050005320)

Note: Includes ITEM 33

$285.99

$

Usually ships in 2-4 days

0

33

Echo 10101030830

GASKET, CYLINDER

$2.99

$

In Stock, only 1 left!

0

34

Echo 10000030832

PISTON KIT
(Superseded to P050005320)

Note: INCLUDES ITEMS 35-38

$285.99

$

Usually ships in 2-4 days

0

35

Echo 10001130831

RING, PISTON

$7.99

$

Usually ships in 2-4 days

0

36

Echo 10001530830

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

37

Echo 10001330830

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

38

Echo 10001230830

BEARING, NEEDLE

$18.99

$

Usually ships in 2-4 days

0

39

Echo P021005410

CYLINDER ASSY

Note: Includes ITEM 40

$187.99

$

Usually ships in 2-4 days

0

40

Echo 10101030830

GASKET, CYLINDER

$2.99

$

In Stock, only 1 left!

0

41

Echo P021005420

PISTON KIT
(Superseded to P021005421)

Note: INCLUDES ITEMS 42-45

$91.99

$

In Stock, only 1 left!

0

42

Echo 10001130831

RING, PISTON

$7.99

$

Usually ships in 2-4 days

0

43

Echo 10001530830

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

44

Echo V611000000

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

45

Echo 10001230830

BEARING, NEEDLE

$18.99

$

Usually ships in 2-4 days

0
