QV-8000 - Echo QuikVent Chainsaw (Type 1) Oiler Parts Diagram

QuikVent Chainsaw (Type 1)

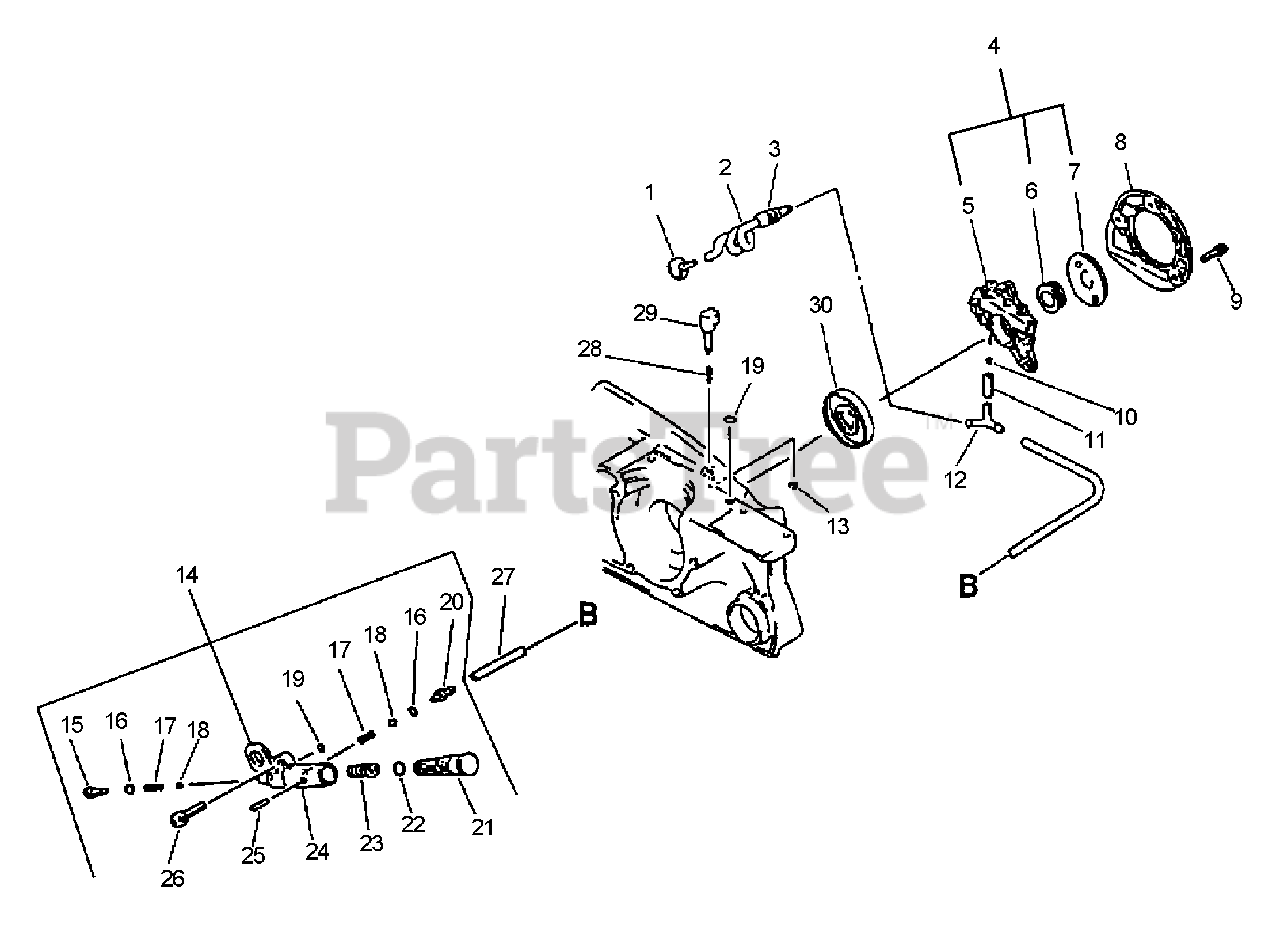

Oiler Parts Diagram

  • Title
1

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 2 left!

0

2

Echo 43721038330

PIPE - OIL
(Superseded to 43721038331)

$5.49

$

In Stock, Qty 14

0

3

$1.49

$

In Stock, Qty 20+

0

4

Echo 43700031732

AUTO-OILER ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 5-7

$

$

Not available

5

Echo 43700237530

AUTO-OILER ASSY

$92.99

$

Usually ships in 2-4 days

0

6

Echo 43706333231

GEAR - WORM

$28.99

$

Usually ships in 2-4 days

0

7

$17.99

$

Usually ships in 2-4 days

0

8

Echo 43760537630

COVER, OIL PUMP

$5.49

$

Usually ships in 2-4 days

0

9

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

10

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 43721132430

PIPE - 3X6X20 -- BLACK

$2.49

$

Usually ships in 2-4 days

0

12

Echo 43721232430

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

13

Echo 90070000003

RING, RETAINING - 3

$0.99

$

In Stock, Qty 6

0

14

Echo 43710038831

OIL PUMP ASSY
(Superseded to 43710038832)

Note: Includes ITEMS 15-25

$21.99

$

Usually ships in 2-4 days

0

15

Echo 43712110130

ADAPTER, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

16

$1.49

$

In Stock, Qty 5

0

17

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$0.99

$

In Stock, Qty 8

0

18

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

19

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 9

0

20

$3.49

$

Usually ships in 2-4 days

0

21

Echo 43711238731

PISTON, OIL PUMP

$4.49

$

In Stock, only 1 left!

0

22

Echo 90072000007

O-RING - 7

$0.99

$

In Stock, only 1 left!

0

23

$1.49

$

In Stock, only 4 left!

0

24

Echo 43711019831

BODY, OIL PUMP

$7.99

$

Usually ships in 2-4 days

0

25

Echo 90034520016

PIN - SPRING -- 2X16

$1.99

$

Usually ships in 2-4 days

0

26

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

27

Echo 43721030830

PIPE - 3X6X210 -- BLACK
(Superseded to 43721030831)

Note: RePower BULK OPTION: 90015

$5.99

$

In Stock, only 2 left!

0

28

$1.49

$

In Stock, only 2 left!

0

29

Echo 43703938730

DIAL, AUTO-OILER

$2.99

$

In Stock, only 1 left!

0

30

Echo 10021330830

SEAL, OIL

$5.99

$

In Stock, only 1 left!

0
