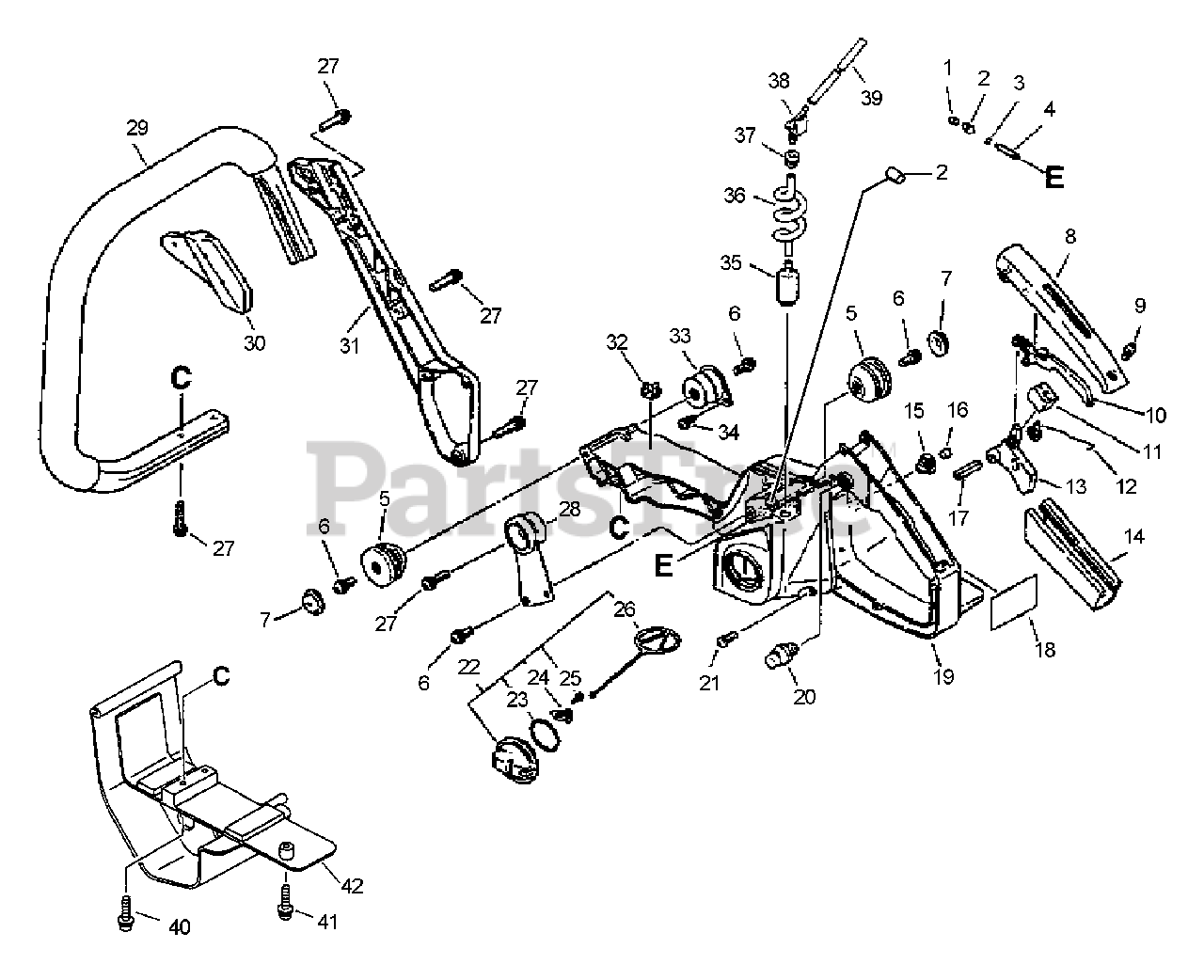

QV-8000 - Echo QuikVent Chainsaw (Type 1) Handles, Throttle Control, Fuel System Parts Diagram

QuikVent Chainsaw (Type 1)

Handles, Throttle Control, Fuel System Parts Diagram

  • Title

1

Echo A356000031

VENT, FUEL TANK

Note: S/N: 005099 - 999999

$7.99

$

In Stock, Qty 20+

0

2

Echo 13102019830

COVER, VENT
(Superseded to Discontinued)

Note: S/N: 001001 - 005098

$

$

Not available

2

Echo 13132840630

COVER, VENT

Note: S/N: 005099 - 999999

$6.49

$

In Stock, Qty 14

0

3

Echo 13011100530

CLIP - 5.5

Note: S/N: 005099 - 999999

$0.99

$

In Stock, Qty 20+

0

4

Echo 43721031730

PIPE - 3X5X55 -- BLACK
(Superseded to 43721031731)

Note: S/N: 005099 - 999999

$9.49

$

In Stock, only 1 left!

0

5

Echo 10091030830

CUSHION

$9.99

$

In Stock, only 2 left!

0

6

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

7

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 9

0

8

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

0

9

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

10

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$4.99

$

Usually ships in 2-4 days

0

11

Echo 17807332430

CUSHION

$2.99

$

In Stock, only 2 left!

0

12

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

13

Echo 17801038130

TRIGGER, THROTTLE

$5.99

$

In Stock, Qty 5

0

14

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

In Stock, only 1 left!

0

15

Echo 13131406320

VENT

Note: S/N: 001001 - 005098

$5.49

$

In Stock, Qty 6

0

15

Echo 13132932330

PLUG

Note: S/N: 005099 - 999999

$2.49

$

In Stock, only 2 left!

0

16

Echo 13131505020

FILTER

$0.99

$

In Stock, Qty 7

0

17

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

18

Echo 89015530130

LABEL - CAUTION
(Superseded to X524000680)

$3.99

$

Usually ships in 2-4 days

0

19

Echo 35110338732

HANDLE - REAR
(Superseded to 35110338733)

$195.99

$

Usually ships in 2-4 days

0

20

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

21

Echo 90022004014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

22

Echo 13100437631

CAP ASSY
(Superseded to 13100437632)

Note: Includes ITEMS 23-26

$3.49

$

In Stock, Qty 17

0

23

Echo 90072000029

O-RING - 29

$3.49

$

In Stock, Qty 18

0

24

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

25

Echo 90024603008

SCREW - 3X8

$

$

Not available

26

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

27

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

28

Echo 10091730830

CUSHION

$22.99

$

Usually ships in 2-4 days

0

29

Echo 35160630830

HANDLE - FRONT
(Superseded to 35160630831)

$73.99

$

Usually ships in 2-4 days

0

30

Echo 35161438730

BRACKET, HANDLE
(Superseded to 35161438731)

$16.99

$

In Stock, only 1 left!

0

31

Echo 35161338731

BRACKET, HANDLE

$43.99

$

Usually ships in 2-4 days

0

32

Echo 10025230830

CUSHION

$0.99

$

In Stock, Qty 10

0

33

Echo 10092230830

CUSHION

$11.99

$

In Stock, only 1 left!

0

34

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 20+

0

35

Echo 13120530830

FILTER, FUEL
(Superseded to 13120519830)

$9.49

$

In Stock, Qty 20+

0

36

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

In Stock, only 1 left!

0

37

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 15

0

38

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$4.49

$

In Stock, only 1 left!

0

39

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

Note: RePower BULK OPTION: 90015

$4.49

$

Usually ships in 2-4 days

0

40

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

41

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

42

Echo 30510531730

STAND

$227.99

$

Usually ships in 2-4 days

0
