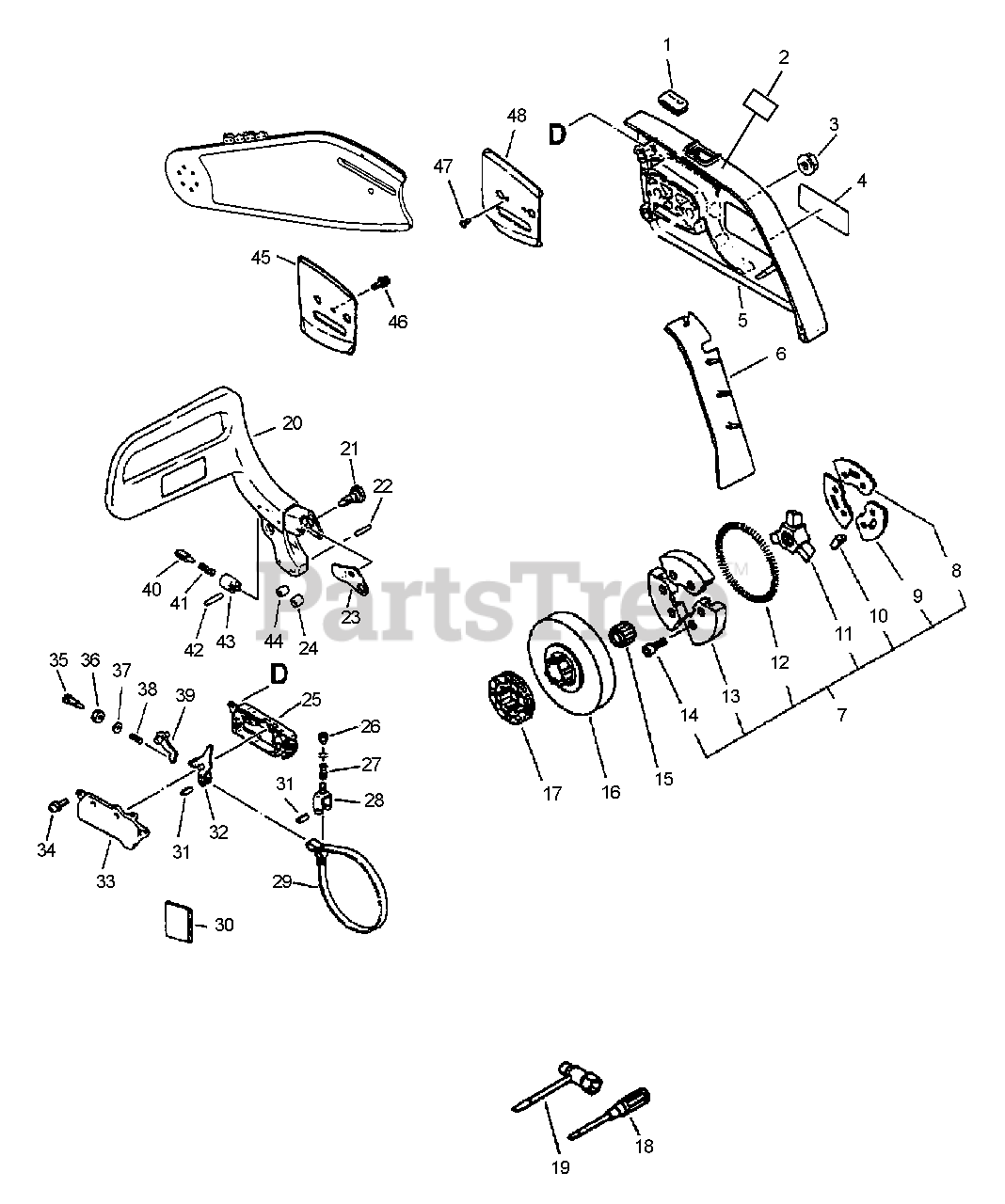

QV-8000 - Echo QuikVent Chainsaw (Type 1) Clutch, Cutting Attachment, Chain Brake Parts Diagram

QuikVent Chainsaw (Type 1)

Clutch, Cutting Attachment, Chain Brake Parts Diagram

  • Title

1

Echo 43331219930

SEAL

$2.99

$

In Stock, only 1 left!

0

2

Echo 89015530130

LABEL - CAUTION
(Superseded to X524000680)

$3.99

$

Usually ships in 2-4 days

0

3

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

4

Echo 89011838130

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

5

Echo 43300238731

GUARD, SPROCKET
(Superseded to 43300238732)

Note: Includes ITEM 6

$66.99

$

Usually ships in 2-4 days

0

6

Echo 43302530830

PAD

$16.99

$

Usually ships in 2-4 days

0

7

Echo 17500030831

CLUTCH ASSY
(Superseded to 17500030832)

Note: Includes ITEMS 8-14

$125.99

$

Usually ships in 2-4 days

0

8

Echo 17501930830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

9

Echo 17502930830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

10

Echo 17505930830

PLATE, SPRING

$1.99

$

Usually ships in 2-4 days

0

11

Echo 17501630830

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

12

Echo 17501830830

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

13

Echo 17500230830

CLUTCH SHOE SET
(Superseded to 17500230831)

$27.99

$

Usually ships in 2-4 days

0

14

Echo 90010504008

SCREW - 4X8

$0.99

$

In Stock, Qty 6

0

15

Echo 17501230830

BEARING, NEEDLE
(Superseded to 17501230831)

$13.99

$

In Stock, only 1 left!

0

16

Echo 17510530830

DRUM, CLUTCH
(Superseded to 17510530831)

$46.99

$

Usually ships in 2-4 days

0

17

Echo 682100

SPROCKET, RIM

$14.99

$

Usually ships in 2-4 days

0

18

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 2 left!

0

19

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

Echo 43320038830

CHAIN BRAKE ASSY

Note: Includes ITEMS 1, 20-44

$134.99

$

Usually ships in 2-4 days

0

20

Echo 43310538830

LEVER, BRAKE

$46.99

$

Usually ships in 2-4 days

0

21

Echo 35134419830

SCREW

$3.99

$

In Stock, only 1 left!

0

22

Echo 90033030180

PIN

$0.99

$

In Stock, Qty 9

0

23

Echo 43316319930

STOPPER

$3.49

$

Usually ships in 2-4 days

0

24

Echo 43316719931

SPACER

$2.99

$

Usually ships in 2-4 days

0

25

Echo 43330619930

COVER, BRAKE

$10.99

$

Usually ships in 2-4 days

0

26

Echo 43316919931

NUT

$5.49

$

Usually ships in 2-4 days

0

27

Echo 43316119930

SPRING

$0.99

$

In Stock, only 1 left!

0

28

Echo 43314219931

ADJUSTER, BRAKE BAND

$3.49

$

Usually ships in 2-4 days

0

29

Echo 43312330830

BAND, BRAKE

$15.99

$

Usually ships in 2-4 days

0

30

Echo 43331319930

SEAL

$1.49

$

Usually ships in 2-4 days

0

31

Echo 90034540010

PIN - SPRING

$2.49

$

In Stock, only 1 left!

0

32

Echo 43320819930

LEVER, BRAKE

$16.99

$

Usually ships in 2-4 days

0

33

Echo 43331019931

COVER, BRAKE

$5.99

$

Usually ships in 2-4 days

0

34

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 15

0

35

Echo 43313319930

BOLT

$0.99

$

Usually ships in 2-4 days

0

36

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 13

0

37

Echo 43316219930

WASHER

$0.99

$

In Stock, only 3 left!

0

38

Echo 43312219930

SPRING, BRAKE

$1.99

$

Usually ships in 2-4 days

0

39

Echo 43320919930

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

40

Echo 43316419930

BOLT

$2.99

$

Usually ships in 2-4 days

0

41

Echo 43316519930

SPRING

$1.49

$

In Stock, Qty 5

0

42

Echo 90033020200

PIN

$0.99

$

In Stock, Qty 9

0

43

Echo 43316619930

SPACER

$4.99

$

In Stock, only 1 left!

0

44

Echo 43316819930

SPACER
(Superseded to Discontinued)

$

$

Not available

45

Echo 43301330830

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 3 left!

0

46

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 15

0

47

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, only 2 left!

0

48

Echo 43301230830

PLATE, GUIDE - OUTER

$5.49

$

In Stock, only 4 left!

0
