QV-680 - Echo QuikVent Chainsaw (SN: C03403001001 - C03403999999) Carburetor -- HDA-271 Parts Diagram

QuikVent Chainsaw

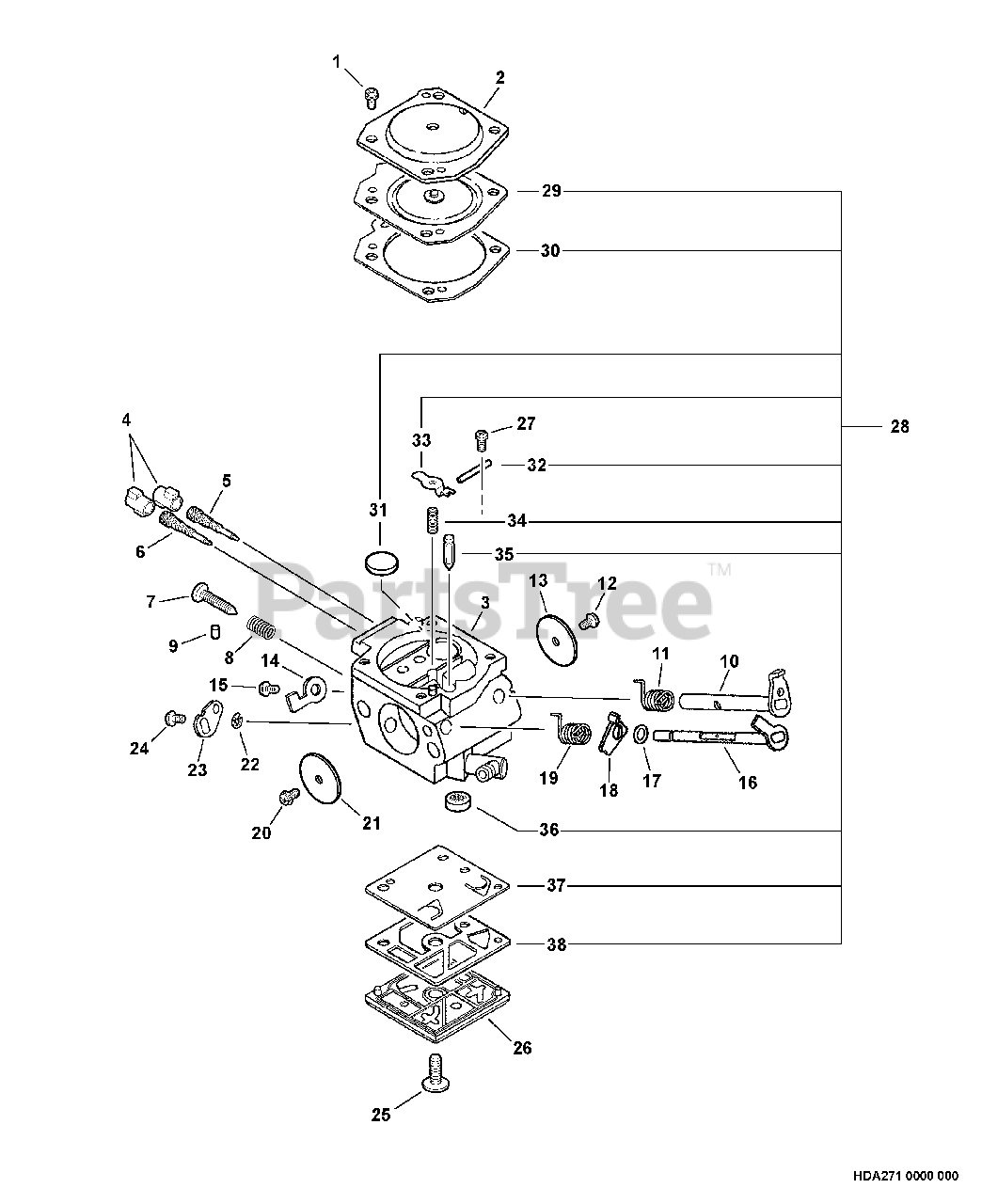

Carburetor -- HDA-271 Parts Diagram

  • Title

Echo A021001800

CARBURETOR HDA-271
(Superseded to A021001801)

$113.99

$

Usually ships in 2-4 days

0

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

3

------------------

BODY, CARBURETOR

$

$

Not available

4

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

5

Echo 12311802261

NEEDLE - MIXTURE

$3.99

$

In Stock, Qty 11

0

6

Echo P003002310

NEEDLE - HIGH SPEED

$3.49

$

Usually ships in 2-4 days

0

7

Echo 12313419730

SCREW, IDLE ADJUST

$2.49

$

In Stock, Qty 5

0

8

Echo P003000540

SPRING, IDLE ADJUST

$0.99

$

Usually ships in 2-4 days

0

$4.99

$

Usually ships in 2-4 days

0

10

Echo P003000550

SHAFT, THROTTLE

$8.99

$

Usually ships in 2-4 days

0

11

Echo P003000560

SPRING, THROTTLE RETURN

$0.99

$

Usually ships in 2-4 days

0

12

$0.99

$

Usually ships in 2-4 days

0

13

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12315630830

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

15

$1.49

$

In Stock, Qty 13

0

16

Echo P003000600

SHAFT, CHOKE

$7.99

$

Usually ships in 2-4 days

0

17

$0.99

$

In Stock, only 1 left!

0

18

Echo P003000620

LEVER, FAST IDLE

$1.49

$

Usually ships in 2-4 days

0

19

Echo P003000610

SPRING, CHOKE RETURN

$1.49

$

Usually ships in 2-4 days

0

20

$1.49

$

In Stock, Qty 13

0

21

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

23

Echo P003000590

LEVER, CHOKE

$1.49

$

Usually ships in 2-4 days

0

24

$1.49

$

In Stock, Qty 13

0

25

Echo 12311016130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

26

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

27

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

28

Echo 90120

REPAIR KIT

Note: INCLUDES ITEMS 29-38

$22.99

$

In Stock, only 2 left!

0

29

------------------

DIAPHRAGM, METERING

$

$

Not available

30

------------------

GASKET, DIAPHRAGM

$

$

Not available

31

------------------

PLUG, WELCH

$

$

Not available

32

------------------

PIN, METERING LEVER

$

$

Not available

33

------------------

LEVER, METERING

$

$

Not available

34

------------------

SPRING, METERING LEVER

$

$

Not available

35

------------------

VALVE, INLET NEEDLE

$

$

Not available

36

------------------

STRAINER

$

$

Not available

37

------------------

DIAPHRAGM, PUMP

$

$

Not available

38

------------------

GASKET, PUMP

$

$

Not available
