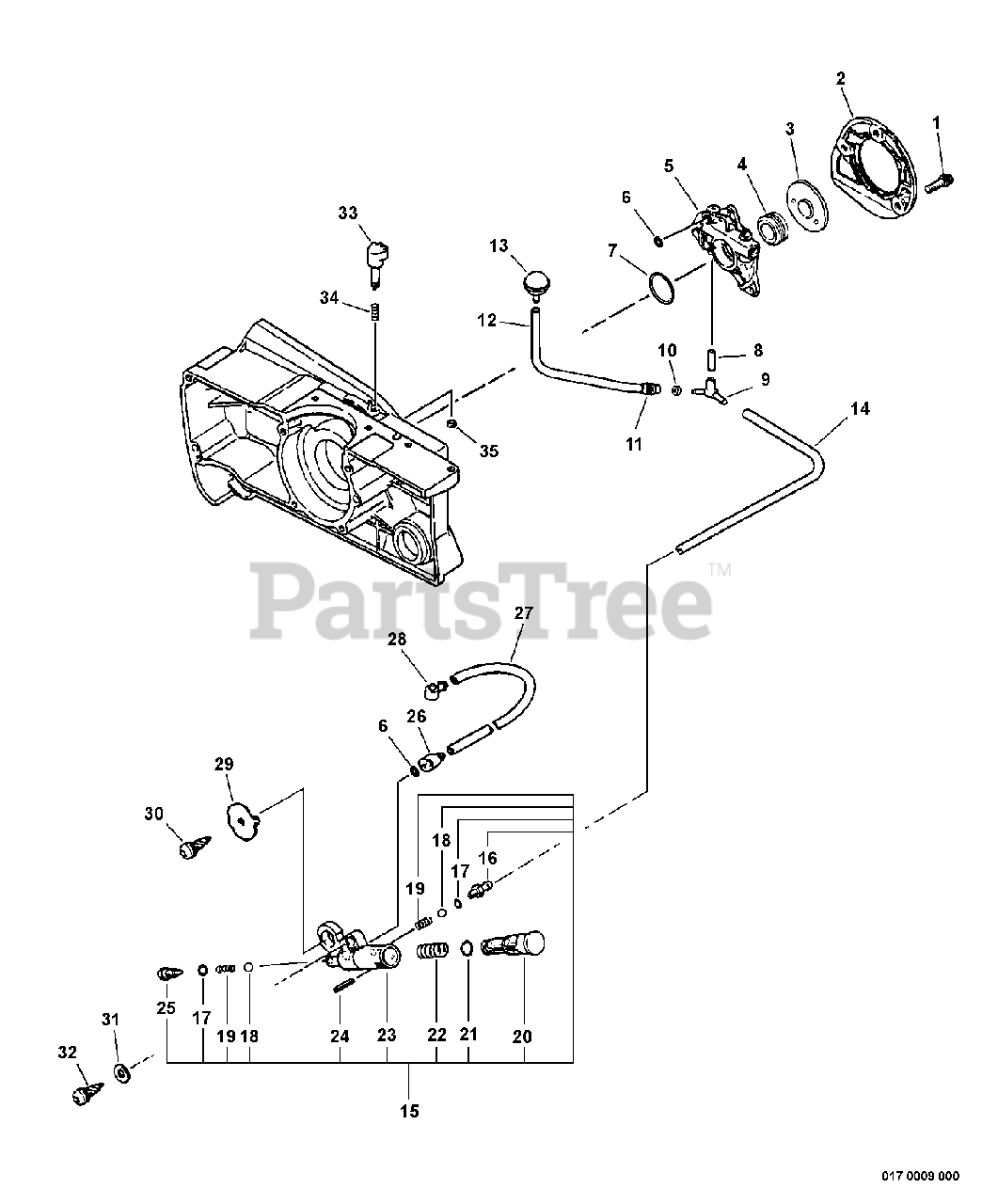

QV-680 - Echo QuikVent Chainsaw (SN: C03403001001 - C03403999999) Auto-Oiler Parts Diagram

QuikVent Chainsaw

Auto-Oiler Parts Diagram

  • Title
1

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 7

0

2

Echo 43760532430

COVER, OIL PUMP

$

$

Not available

3

Echo V309000040

WASHER - 12

$13.99

$

Usually ships in 2-4 days

0

4

Echo 43706319930

GEAR - WORM

$39.99

$

In Stock, only 1 left!

0

5

Echo 43700237530

AUTO-OILER ASSY

$92.99

$

Usually ships in 2-4 days

0

6

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 9

0

7

$7.49

$

Usually ships in 2-4 days

0

8

Echo 43721132430

PIPE - 3X6X20 -- BLACK

$2.49

$

Usually ships in 2-4 days

0

9

Echo 43721232430

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

10

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

11

$1.49

$

In Stock, Qty 20+

0

12

Echo 43721038330

PIPE - OIL
(Superseded to 43721038331)

$5.49

$

In Stock, Qty 14

0

13

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 2 left!

0

14

Echo 43721015130

PIPE - 3X6X200 -- BLACK

Note: RePower BULK OPTION: 90015

$4.99

$

Usually ships in 2-4 days

0

15

Echo 43710038832

OIL PUMP ASSY

Note: Includes ITEMS 16-25

$21.99

$

Usually ships in 2-4 days

0

16

$3.49

$

Usually ships in 2-4 days

0

17

$1.49

$

In Stock, Qty 5

0

18

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, Qty 8

0

19

$0.99

$

In Stock, Qty 8

0

20

Echo 43711238731

PISTON, OIL PUMP

$4.49

$

In Stock, only 1 left!

0

21

Echo 90072000007

O-RING - 7

$0.99

$

In Stock, only 1 left!

0

22

$1.49

$

In Stock, only 4 left!

0

23

Echo 43711019831

BODY, OIL PUMP

$7.99

$

Usually ships in 2-4 days

0

24

Echo 90034520016

PIN - SPRING -- 2X16

$1.99

$

Usually ships in 2-4 days

0

25

Echo 43712110130

ADAPTER, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

26

Echo 43721232630

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

27

Echo 43721632630

PIPE, OIL - 3X6X125

Note: RePower BULK OPTION: 90017

$2.99

$

Usually ships in 2-4 days

0

28

Echo 43723232630

CONNECTOR, PIPE

$3.49

$

Usually ships in 2-4 days

0

29

Echo 43741319830

BRACKET, OIL PUMP

$1.49

$

Usually ships in 2-4 days

0

30

Echo 90025204010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

31

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

32

Echo 90025205020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

33

Echo 43703937630

DIAL, AUTO-OILER

$2.99

$

Usually ships in 2-4 days

0

34

$1.49

$

In Stock, only 2 left!

0

35

Echo 90070000003

RING, RETAINING - 3

$0.99

$

In Stock, Qty 6

0
