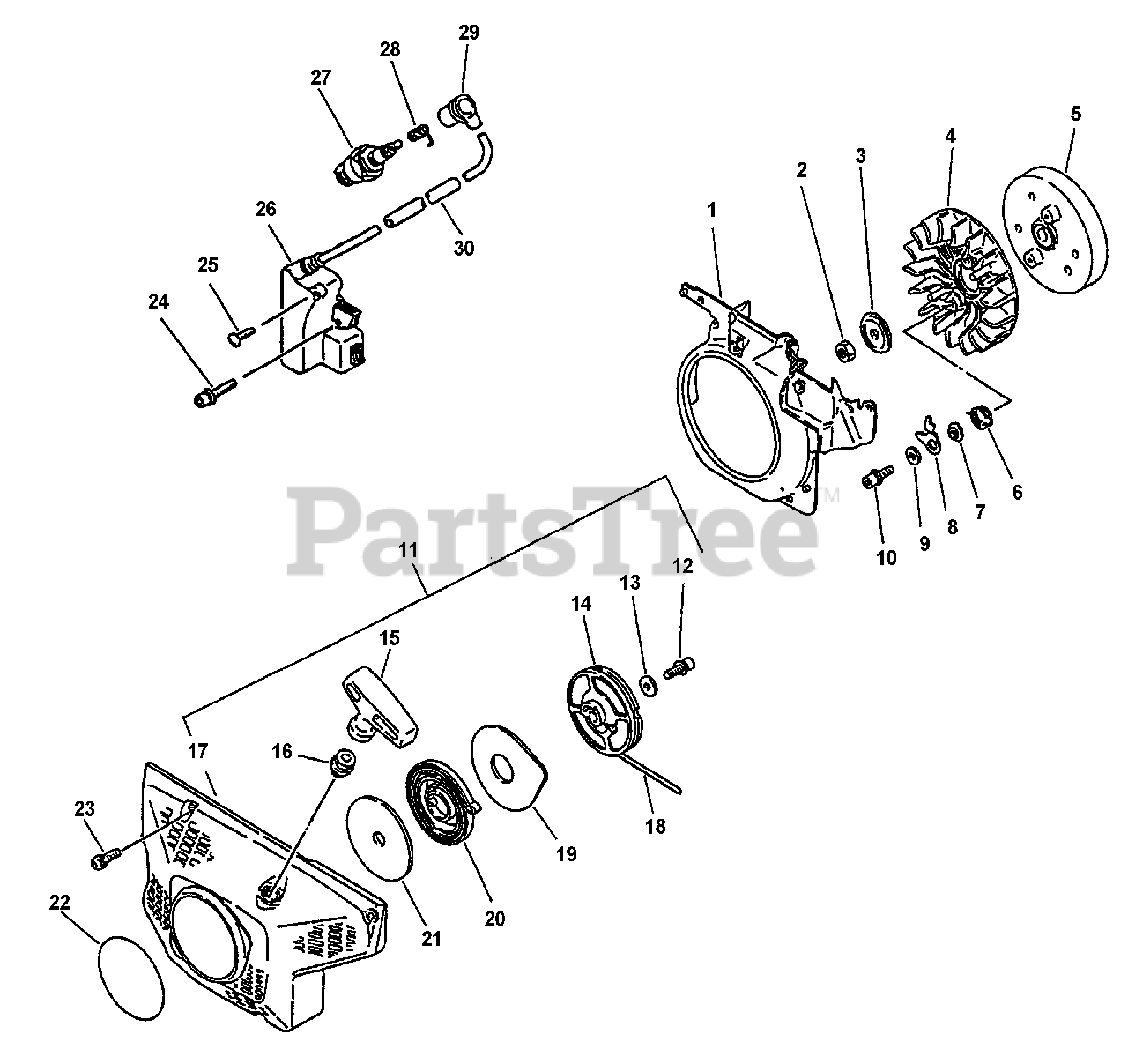

QV-6700 - Echo QuikVent Chainsaw (Type 1E) Ignition, Starter Asy Parts Diagram

QuikVent Chainsaw (Type 1E)

Ignition, Starter Asy Parts Diagram

  • Title
1

Echo 10153507060

SHIELD, FAN
(Superseded to 10153507061)

$22.99

$

Usually ships in 2-4 days

0

2

$0.99

$

In Stock, Qty 20+

0

3

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, only 4 left!

0

$14.99

$

Usually ships in 2-4 days

0

5

Echo 15680032631

FLYWHEEL

$104.99

$

Usually ships in 2-4 days

0

6

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

$3.49

$

In Stock, Qty 5

0

7

$1.99

$

Usually ships in 2-4 days

0

8

Echo 17721832630

PAWL, STARTER
(Superseded to P021009870)

$16.99

$

In Stock, only 1 left!

0

9

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

11

Echo 17720132633

STARTER ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 12-21

$

$

Not available

12

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0

13

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 17721532330

REEL, ROPE

$8.99

$

Usually ships in 2-4 days

0

15

Echo 17722832630

GRIP, STARTER

$16.99

$

Usually ships in 2-4 days

0

16

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

17

Echo 10150707062

CASE, STARTER

$92.99

$

Usually ships in 2-4 days

0

18

------------------

ROPE, STARTER - 4X900

Note: RePower BULK OPTION: 99944450000

$

$

Not available

19

Echo 17722107060

PLATE, STARTER

$10.99

$

In Stock, only 1 left!

0

20

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 8

0

21

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 7

0

22

Echo 89011238130

LABEL - ECHO
(Superseded to 89011817930)

$7.99

$

In Stock, Qty 9

0

23

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

24

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

25

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

26

Echo 15660132631

COIL, IGNITION
(Superseded to 15660132632)

$138.99

$

In Stock, only 1 left!

0

27

Echo 15901716431

SPARK PLUG -- CJ-6Y
(Superseded to Discontinued)

$

$

Not available

28

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

29

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

30

Echo 15061132430

TUBE
(Superseded to 15661119830)

$1.99

$

Usually ships in 2-4 days

0

Echo 999444000550

BULK ROPE

$

$

Currently unavailable
