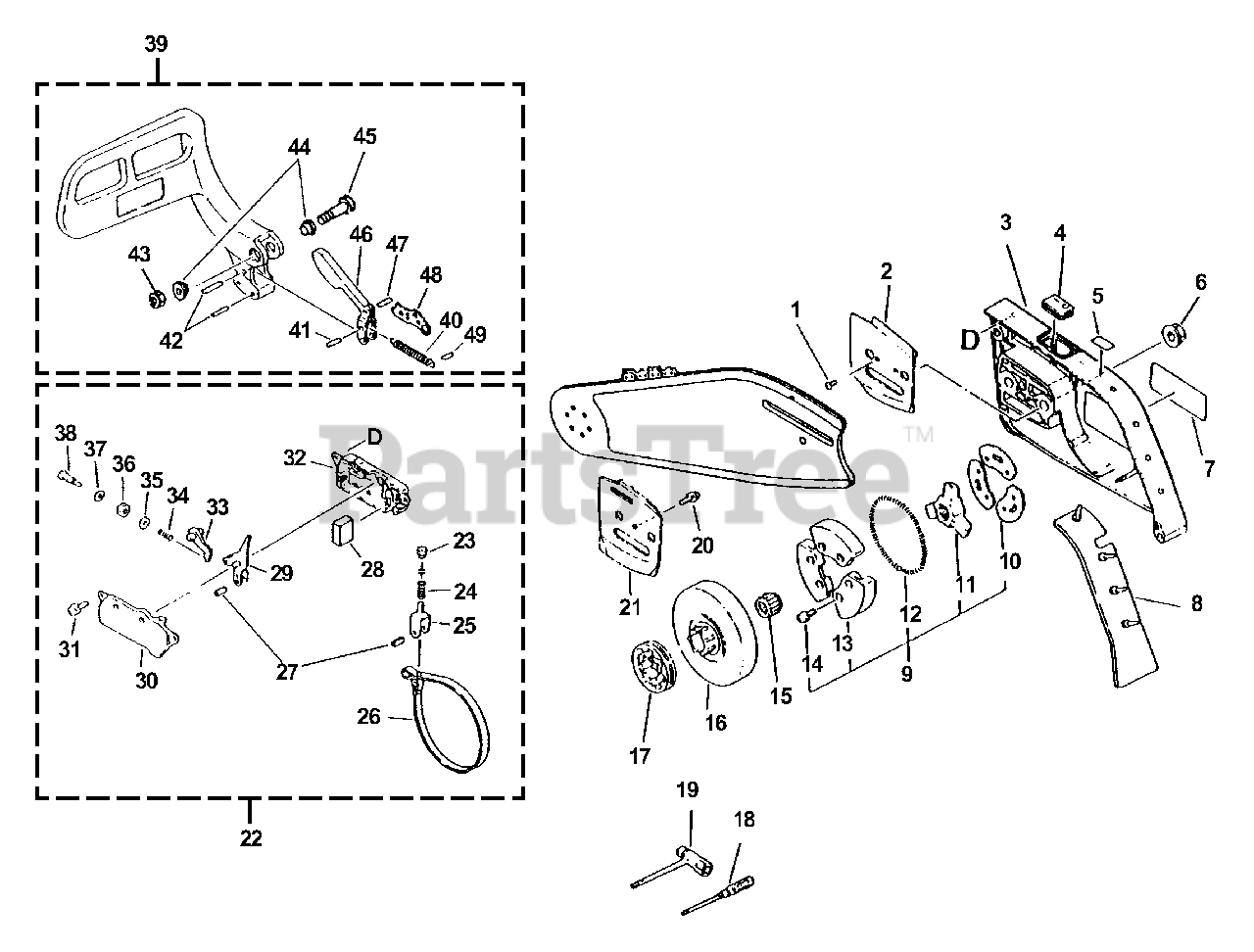

QV-6700 - Echo QuikVent Chainsaw (Type 1) Clutch, Cutting Attachment, Chain Brake S/N: 001001 - 003450 Parts Diagram

QuikVent Chainsaw (Type 1)

Clutch, Cutting Attachment, Chain Brake S/N: 001001 - 003450 Parts Diagram

  • Title
1

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, only 2 left!

0

2

Echo 43301232631

PLATE, GUIDE - OUTER

$4.99

$

Usually ships in 2-4 days

0

3

Echo 43300538230

GUARD, SPROCKET
(Superseded to P021002291)

$

$

Not available

$2.99

$

In Stock, only 1 left!

0

5

Echo 89015530130

LABEL - CAUTION
(Superseded to X524000680)

$3.99

$

Usually ships in 2-4 days

0

6

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

7

Echo 89011838130

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

$7.99

$

Usually ships in 2-4 days

0

9

Echo 17500032431

CLUTCH ASSY
(Superseded to 17500032432)

Note: Includes ITEMS 10-14

$77.99

$

Usually ships in 2-4 days

0

10

Echo 17501916130

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

11

Echo 17501632430

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

12

Echo 17501832430

SPRING, CLUTCH

$2.99

$

In Stock, only 1 left!

0

13

Echo 17500232430

CLUTCH SHOE SET
(Superseded to 17500232431)

$61.99

$

In Stock, only 1 left!

0

14

Echo 90010504006

SCREW - 4X6

$0.99

$

In Stock, Qty 8

0

15

Echo 17501232430

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

16

Echo 17510532430

DRUM, CLUTCH
(Superseded to 17510532431)

$40.99

$

In Stock, only 4 left!

0

17

Echo 682100

SPROCKET, RIM

$14.99

$

In Stock, only 1 left!

0

18

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 3 left!

0

19

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 8

0

20

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

21

Echo 43301332631

PLATE, GUIDE - INNER

$5.49

$

Usually ships in 2-4 days

0

22

Echo 43320232530

CHAIN BRAKE ASSY
(Superseded to Discontinued)

$

$

Not available

$5.49

$

Usually ships in 2-4 days

0

24

$0.99

$

In Stock, only 1 left!

0

25

Echo 43314219931

ADJUSTER, BRAKE BAND

$3.49

$

Usually ships in 2-4 days

0

26

Echo 43312330830

BAND, BRAKE

$15.99

$

Usually ships in 2-4 days

0

27

Echo 90034040010

PIN - SPRING -- 4X10
(Superseded to Discontinued)

$

$

Not available

$1.49

$

Usually ships in 2-4 days

0

29

Echo 43320830230

LEVER, BRAKE
(Superseded to Discontinued)

$

$

Not available

30

Echo 43331019931

COVER, BRAKE

$5.99

$

Usually ships in 2-4 days

0

31

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 20+

0

32

Echo 43330619930

COVER, BRAKE

$10.99

$

Usually ships in 2-4 days

0

33

Echo 43320919930

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

34

Echo 43312219930

SPRING, BRAKE

$1.99

$

Usually ships in 2-4 days

0

35

$0.99

$

In Stock, only 3 left!

0

36

$0.99

$

In Stock, Qty 13

0

37

Echo 90061700005

WASHER - 5

$0.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

39

Echo 43320332632

BRAKE LEVER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 40-49

$

$

Not available

40

Echo 43311430130

SPRING, RETURN

$2.49

$

Usually ships in 2-4 days

0

41

Echo 90034530012

PIN - SPRING -- 3X12

$3.49

$

In Stock, only 2 left!

0

42

Echo 90033030240

PIN - 3X24

$0.99

$

In Stock, Qty 20+

0

43

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

44

$2.99

$

In Stock, Qty 14

0

45

Echo 90020905030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

46

Echo 43317030130

WEIGHT, BRAKE

$12.99

$

In Stock, only 1 left!

0

47

Echo 90033140080

PIN - SPRING -- 4X8
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

48

Echo 43316332430

STOPPER
(Superseded to Discontinued)

$

$

Not available

49

Echo 90034530016

PIN - SPRING -- 3X16

$1.49

$

In Stock, only 2 left!

0
