QV-670 - Echo QuikVent Chainsaw (SN: 03001001 - 03999999) Chain Brake Asssembly, Guide Bar, Chain Parts Diagram

QuikVent Chainsaw

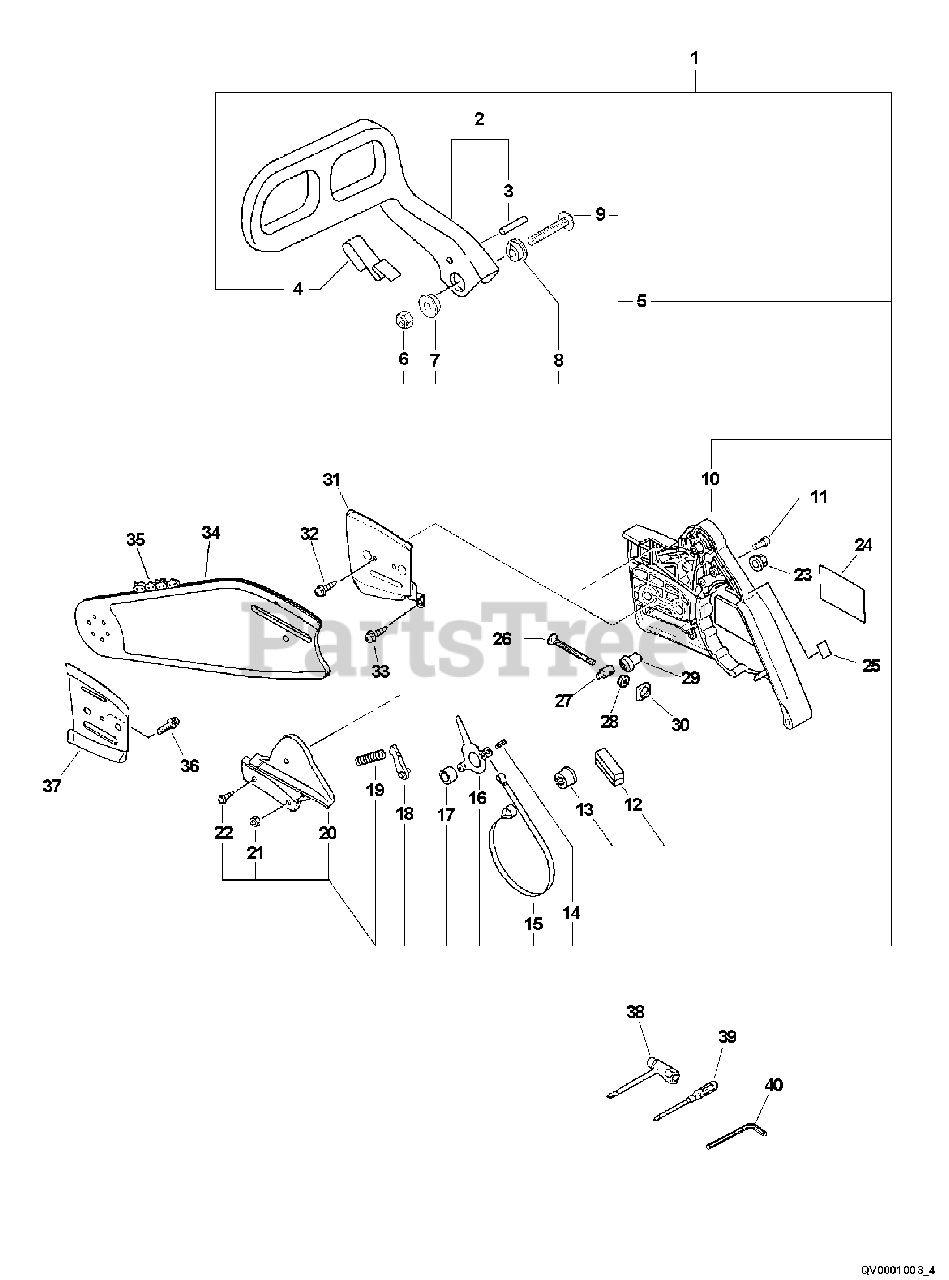

Chain Brake Asssembly, Guide Bar, Chain Parts Diagram

  • Title

1

Echo 43320232633

CHAIN BRAKE ASSY
(Superseded to 43320232634)

Note: INCLUDES ITEMS 2-22

$98.99

$

In Stock, only 1 left!

0

2

Echo 43310533530

LEVER, BRAKE
(Superseded to 43310533531)

$

$

Not available

3

Echo 90033035260

PIN - 3.5X26

$0.99

$

In Stock, Qty 7

0

4

Echo 43311438131

SPRING, RETURN

$6.99

$

Usually ships in 2-4 days

0

5

Echo 43311337539

MOUNTING KIT

Note: Includes ITEMS 6-9

$5.49

$

In Stock, Qty 14

0

6

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

7

Echo 43316739130

SPACER

$2.99

$

In Stock, Qty 10

0

8

Echo 43316739730

COLLAR - 5

$2.99

$

In Stock, only 1 left!

0

9

Echo 90020905035

SCREW - 5X35

$1.49

$

In Stock, only 4 left!

0

10

Echo P021002291

GUARD, SPROCKET
(Superseded to P021002292)

$

$

Not available

11

Echo 90022003018

SCREW - 3X18

$0.99

$

In Stock, only 4 left!

0

12

Echo 43331232630

SEAL

$1.49

$

In Stock, Qty 7

0

13

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 1 left!

0

14

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 2 left!

0

15

Echo 43312338131

BAND, BRAKE

$9.99

$

In Stock, only 1 left!

0

16

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

17

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, only 2 left!

0

18

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

19

Echo 43312238130

SPRING, BRAKE

$6.99

$

Usually ships in 2-4 days

0

20

Echo 43331038230

COVER, BRAKE

$6.49

$

Usually ships in 2-4 days

0

21

Echo 90050000003

NUT - 3

$0.99

$

In Stock, only 2 left!

0

22

Echo 90025204012

SCREW - 4X12

$0.99

$

In Stock, only 2 left!

0

23

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

24

Echo 89011815130

LABEL - ECHO

$1.99

$

In Stock, Qty 5

0

25

Echo X524000680

LABEL - CAUTION

$3.99

$

Usually ships in 2-4 days

0

26

Echo V203000041

SCREW, TENSIONER

$5.99

$

In Stock, Qty 6

0

27

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

28

Echo V651000010

GEAR - BEVEL
(Superseded to V651000011)

$7.99

$

In Stock, Qty 20+

0

29

Echo V651000000

GEAR - PINION
(Superseded to V651000001)

$7.99

$

In Stock, Qty 20+

0

30

Echo V355000030

COLLAR - 8
(Superseded to V355000270)

$1.49

$

In Stock, Qty 20+

0

31

Echo C305000050

PLATE, GUIDE - OUTER

$6.99

$

Usually ships in 2-4 days

0

32

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, only 2 left!

0

33

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

34

Echo 99988800141

GUIDE BAR - QUICKVENT

$

$

Not available

35

Echo 99988800045

CHAIN -- CARBICHAIN QUICKVENT

$294.99

$

In Stock, only 1 left!

0

36

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

37

Echo 43301332631

PLATE, GUIDE - INNER

$5.49

$

Usually ships in 2-4 days

0

38

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

39

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 2 left!

0

40

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable
