QV 550 H - Billy Goat QuietVac Lawn & Litter Vacuum ENGINE Parts Diagram

QuietVac Lawn & Litter Vacuum

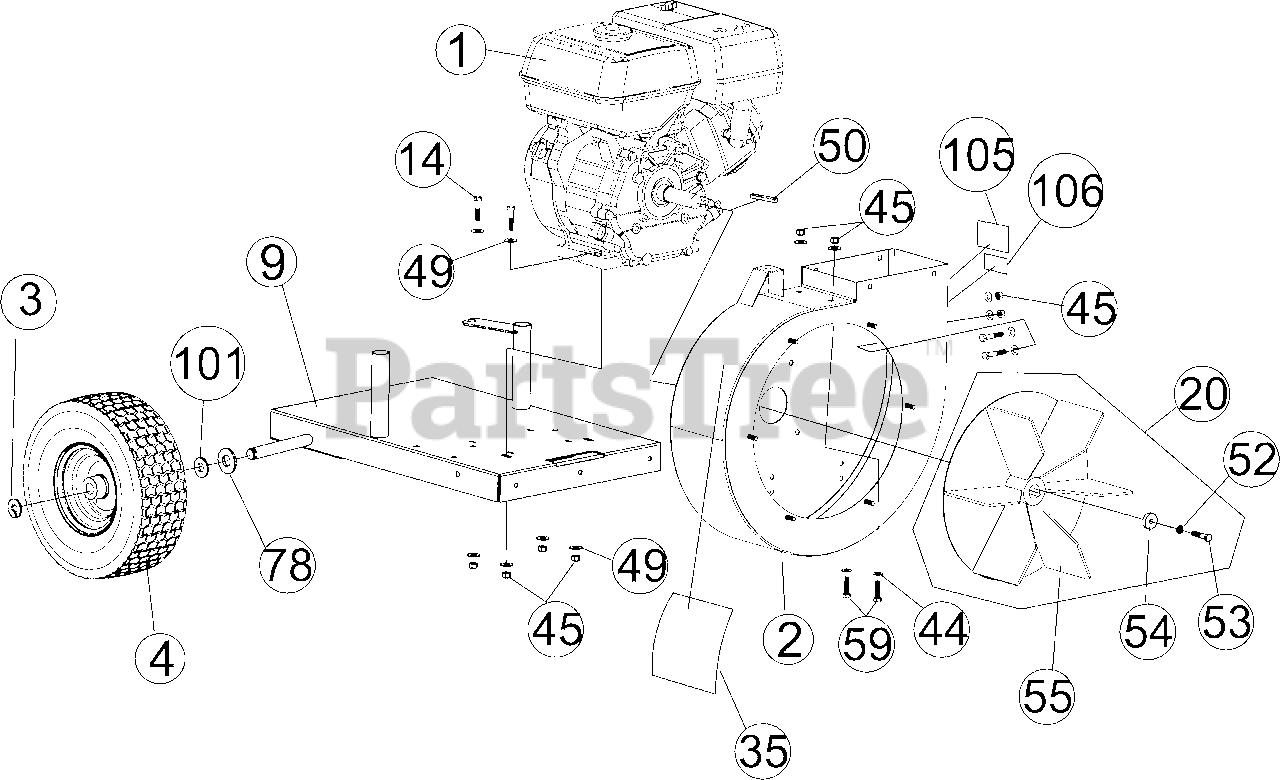

ENGINE Parts Diagram

  • Title

1

Billy Goat 600115

ENGINE HONDA 5.5 OHV GX160

$

$

Currently unavailable

2

Billy Goat 831600

HOUSING WA W/LABELS

$422.99

$

Usually ships in 2-11 days

0

3

Billy Goat 850230

SNAP RING 3/4

$0.99

$

Usually ships in 2-11 days

0

4

Billy Goat 440054

WHEEL 13" X 5" PNEU

$116.99

$

In Stock, only 2 left!

0

9

Billy Goat 831106

ENGINE BASE WA

$281.99

$

Usually ships in 2-11 days

0

14

Billy Goat 8041030

SCREWCAP 5/16"-18 X 1 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

20

Billy Goat 831601

IMPELLER ASSY

$354.99

$

Usually ships in 2-11 days

0

35

Billy Goat 831265

LABEL WARNING QV

$8.99

$

Usually ships in 2-11 days

0

44

Billy Goat 8172008

WASHER 5/16" SAE

$0.99

$

In Stock, only 1 left!

0

45

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX ZP

$0.99

$

In Stock, Qty 5

0

49

Billy Goat 8171003

WASHER 5/16" FLAT

$0.99

$

In Stock, only 2 left!

0

50

Billy Goat 9201087

KEY 3/16" SQ X 2 1/4"

$2.99

$

Usually ships in 2-11 days

0

52

Billy Goat 8177011

WASHER LOCK 5/16" SPLIT

$0.99

$

In Stock, Qty 10

0

53

Billy Goat 831272

SCREWCAP 5/16"-24 X 2 1/4" GR.8 W/PATCH

$2.99

$

Usually ships in 2-11 days

0

54

Billy Goat 441150

WASHER 1.125 OD X 0.344 ID X0.25

$3.99

$

Usually ships in 2-11 days

0

55

Billy Goat 831104

IMPELLER 5HP WA (torque 17-22 ft.lbs [23-30 N.m])
(Superseded to 831601)

$354.99

$

Usually ships in 2-11 days

0

59

Billy Goat 8041026

SCREWCAP 5/16"-18 X 3/4" GR 5 HCS ZP

$0.99

$

In Stock, only 1 left!

0

78

Billy Goat 8172015

WASHER 3/4" SAE

$0.99

$

In Stock, Qty 5

0

101

Billy Goat 850238

WASHER .765 ID X 1.25 OD X .06

$1.49

$

In Stock, only 2 left!

0

105

Billy Goat 520116

LABEL MADE IN USA

$

$

Not available

106

Billy Goat 500183

LABEL PATENT PENDING

$4.99

$

Usually ships in 2-11 days

0

107

Billy Goat 831295

BRACKET BRAKE QV

$

$

Currently unavailable

108

Billy Goat 830528

BOLT SHOULDER 3/8" X 1/2"

$4.99

$

Usually ships in 2-11 days

0

109

Billy Goat 831283

LINER QV

$

$

Currently unavailable
