QTS725GKC50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Kohler KT725 (SN: 315000000 - 315999999) (2015) Engine and Muffler Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kohler KT725

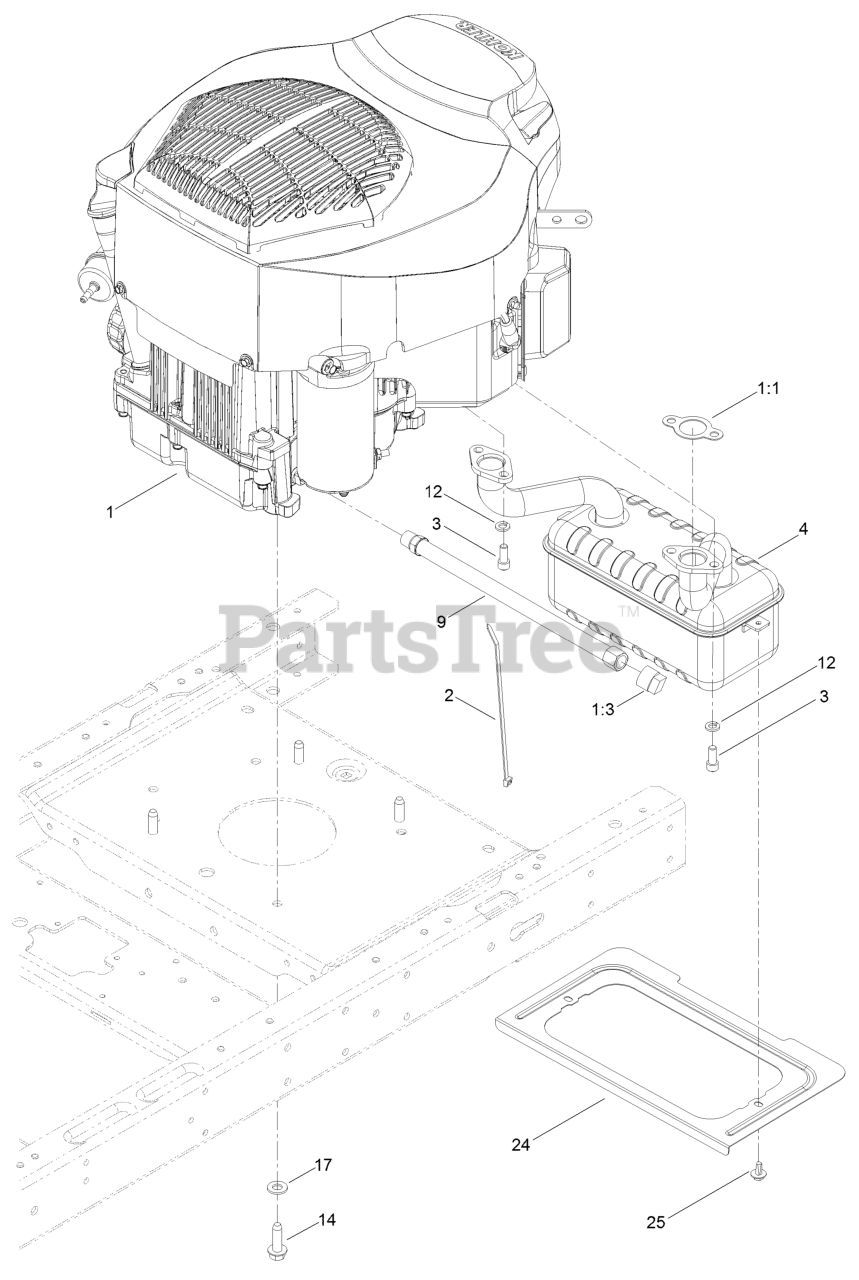

Engine and Muffler Assembly Parts Diagram

  • Title
1

Engine-Kohler 22HP 7000 Series Autochoke

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Exmark 110-6697

GASKET-EXHAUST

$

$

Not available

1:3

Exmark 281-2

PLUG-PIPE, SQH

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

3

Exmark 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

4

Exmark 117-7462

MUFFLER-KOHLER

$246.99

$

In Stock, only 1 left!

0

9

Exmark 117-1261

HOSE-DRAIN, OIL

$29.99

$

In Stock, only 1 left!

0

12

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Exmark 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 7

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

24

Exmark 131-1071-03

SHIELD-HEAT

$20.99

$

In Stock, only 1 left!

0

25

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0
