QTS725GKC50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Kohler KT725 (SN: 315000000 - 315999999) (2015) Belt and Idler Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kohler KT725

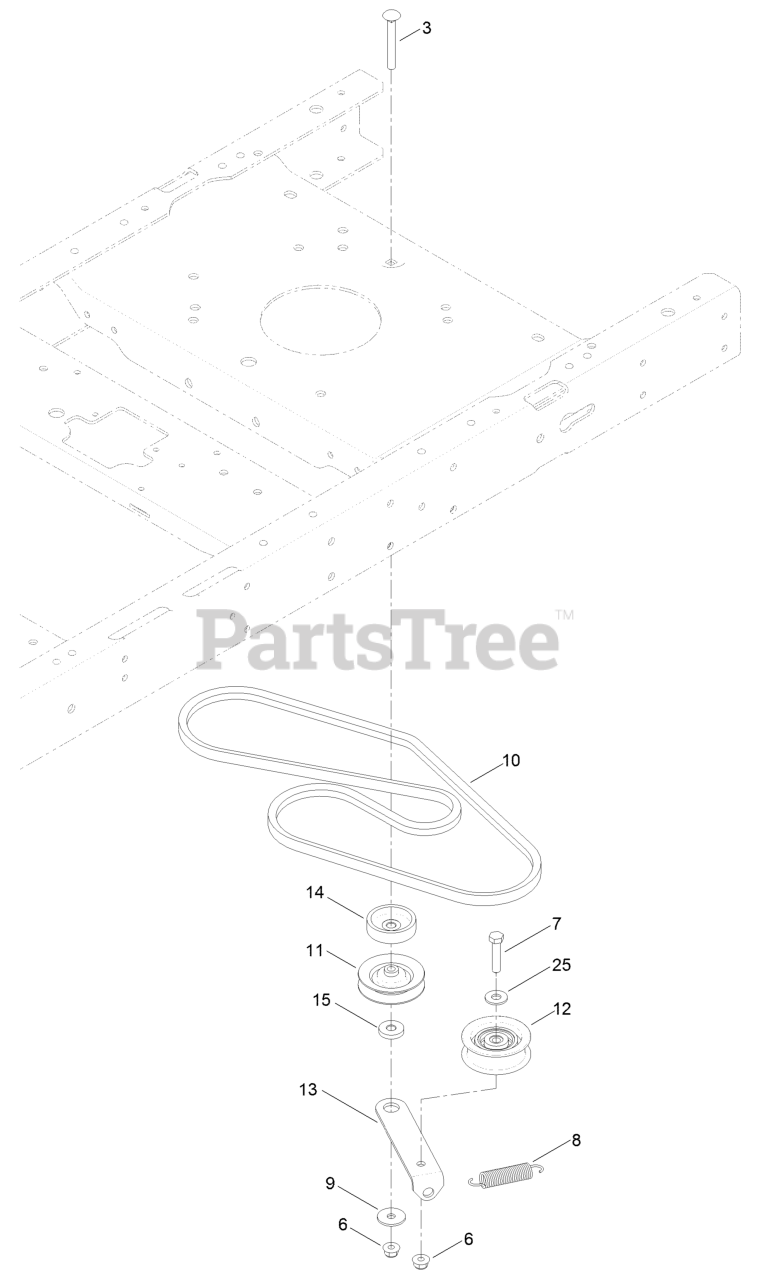

Belt and Idler Assembly Parts Diagram

  • Title
3

Exmark 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 13

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 9

0

9

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

10

Exmark 130-6976

V-BELT
(Superseded to 130-6976-SL)

$37.99

$

In Stock, only 1 left!

0

11

Exmark 119-8822

PULLEY-IDLER

$25.99

$

In Stock, Qty 6

0

12

Exmark 106-2176

PULLEY-IDLER

$31.99

$

In Stock, Qty 17

0

13

Exmark 119-3326

ARM-IDLER
(Superseded to 138-7276)

$6.49

$

In Stock, only 1 left!

0

14

$11.99

$

Usually ships in 3-6 days

0

15

Exmark 119-3327

SPACER-ARM, IDLER

$3.99

$

In Stock, Qty 20+

0

25

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
