QTS725CKC42200 - Exmark 42" Quest S-Series Zero-Turn Mower, Kohler KT725 (SN: 315000000 - 315999999) (2015) Seat Assembly Parts Diagram

42" Quest S-Series Zero-Turn Mower, Kohler KT725

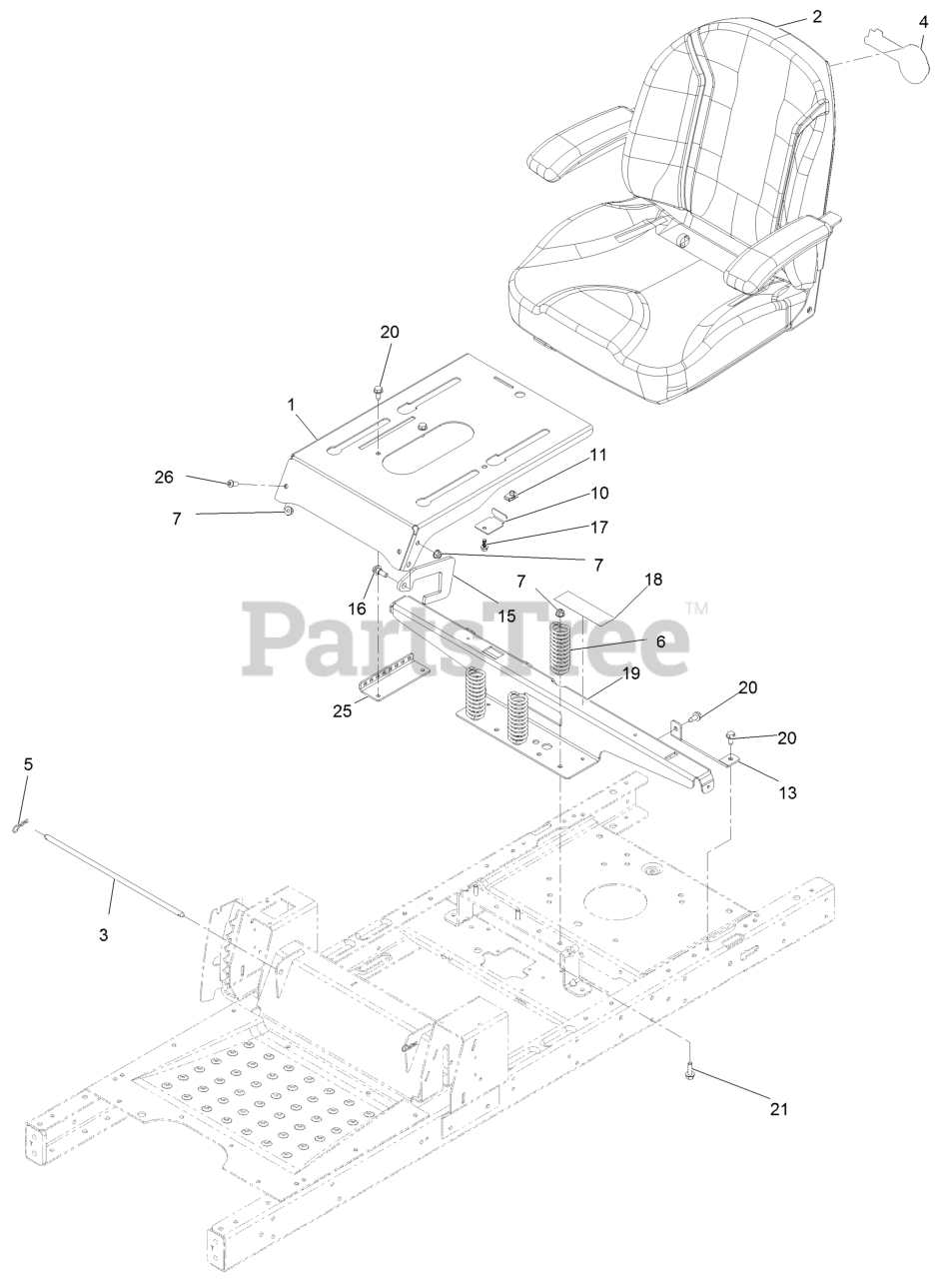

Seat Assembly Parts Diagram

  • Title

1

Exmark 132-0919-03

136-5571-03
(Superseded to 136-5571-03)

$63.99

$

Usually ships in 3-6 days

0

2

Exmark 131-4148

SEAT ASM, EXMARK
(Superseded to 142-8124)

$718.99

$

Usually ships in 3-6 days

0

3

Exmark 119-3433

ROD-PIVOT, NARROW

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 120-5464

DECAL

$16.99

$

Usually ships in 3-6 days

0

5

Exmark 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 131-1038

BRACKET-STOP, SEAT
(Superseded to 138-7214)

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

13

Exmark 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 131-3994

PLATE-STOP

$14.99

$

Usually ships in 3-6 days

0

16

Exmark 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 20+

0

17

Exmark 99-6810

SCREW-HHF

$3.49

$

In Stock, only 2 left!

0

18

Exmark 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

19

Exmark 131-1040-03

SUPPORT-POD

$102.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

25

Exmark 131-4008-03

BRACKET-LATCH, SEAT

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 131-4080

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0
