QTS708GEM60200 - Exmark 60" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) LH Transaxle Assembly No. 133-4418 Parts Diagram

60" Quest S-Series Zero-Turn Mower, Exmark 708

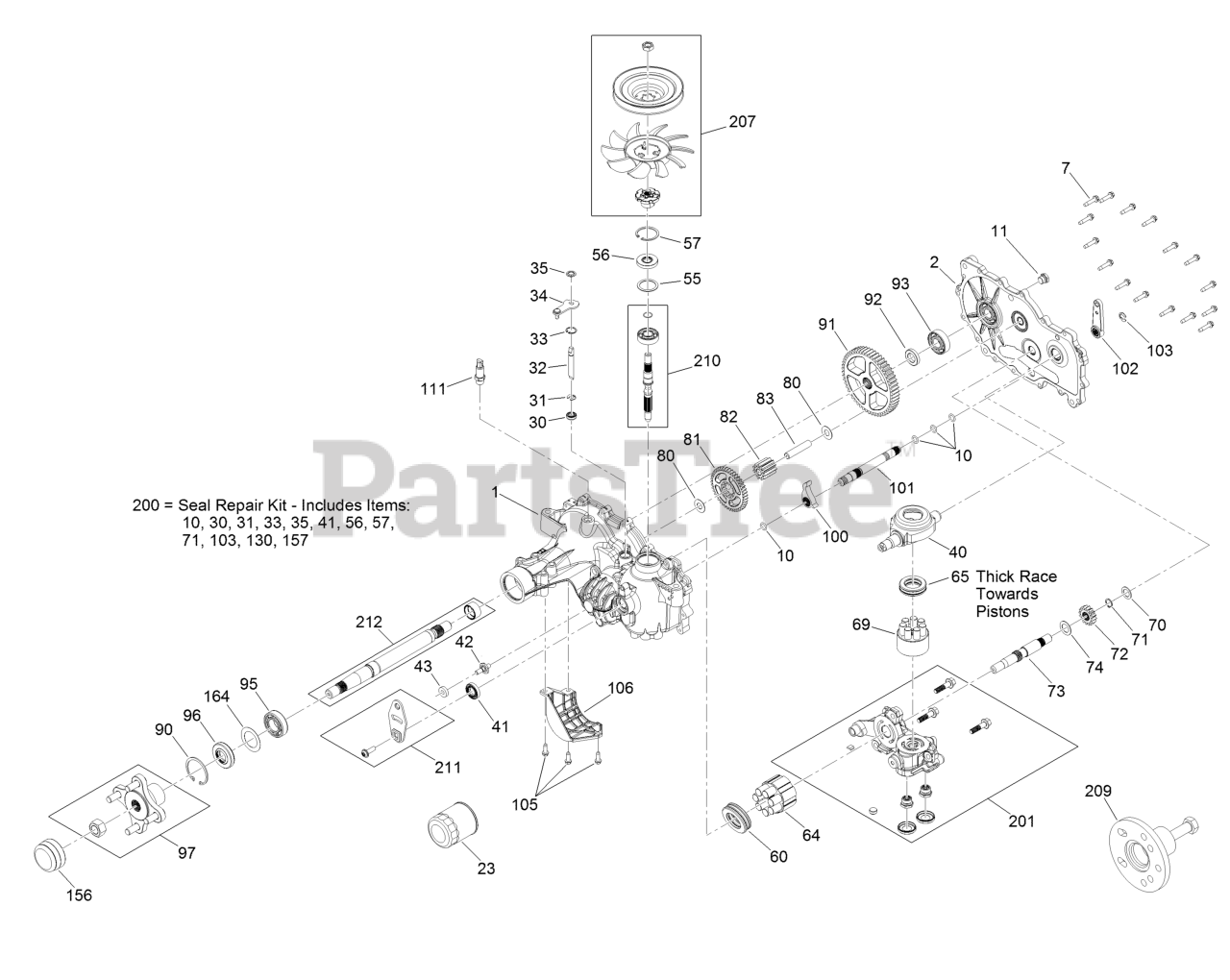

LH Transaxle Assembly No. 133-4418 Parts Diagram

  • Title
1

Exmark 125-0037

MAIN HOUSING KIT

$

$

Not available

2

Exmark 132-0939

RH SIDE COVER KIT

$302.99

$

Usually ships in 3-6 days

0

7

Exmark 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

10

$5.99

$

Usually ships in 3-6 days

0

11

Exmark 135-1140

353-508
(Superseded to 353-508)

$8.49

$

In Stock, only 1 left!

0

23

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

30

Exmark 106-8676

SEAL-LIP
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

31

Exmark 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

32

Exmark 114-1685

ROD-BYPASS

$35.99

$

Usually ships in 3-6 days

0

33

Exmark 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

34

Exmark 112-9852

107-2489
(Superseded to 107-2489)

$83.99

$

Usually ships in 3-6 days

0

35

Exmark 106-8681

RING-RETAINING, EXTERNAL

$8.99

$

Usually ships in 3-6 days

0

40

Exmark 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

41

Exmark 104-5313

SEAL-LIP

$25.99

$

In Stock, only 1 left!

0

42

$38.99

$

Usually ships in 3-6 days

0

43

Exmark 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

55

$9.49

$

Usually ships in 3-6 days

0

56

Exmark 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

57

Exmark 104-5309

RING-RETAINING

$12.99

$

In Stock, only 1 left!

0

60

Exmark 112-4154

BEARING-THRUST

$103.99

$

Usually ships in 3-6 days

0

64

Exmark 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

65

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

69

Exmark 110-8561

PUMP BLOCK ASM

$347.99

$

Usually ships in 3-6 days

0

70

Exmark 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

71

Exmark 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

72

Exmark 121-5749

GEAR-16T

$13.99

$

Usually ships in 3-6 days

0

73

Exmark 114-1691

SHAFT-MOTOR

$169.99

$

Usually ships in 3-6 days

0

74

$7.99

$

Usually ships in 3-6 days

0

80

Exmark 119-5541

Washer
(Superseded to 94-1933)

$6.49

$

Usually ships in 3-6 days

0

81

Exmark 125-0000

GEAR-43T

$62.99

$

Usually ships in 3-6 days

0

82

Exmark 114-1693

GEAR-11T

$28.99

$

Usually ships in 3-6 days

0

83

Exmark 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

90

Exmark 104-2169

RING-RETAINING

$19.99

$

Usually ships in 3-6 days

0

91

Exmark 114-1694

GEAR-54T

$139.99

$

In Stock, only 2 left!

0

92

$6.49

$

Usually ships in 3-6 days

0

93

Exmark 137-2004

BEARING KIT
(Superseded to 135-1361)

$38.99

$

Usually ships in 3-6 days

0

95

Exmark 109-8110

104-2143
(Superseded to 104-2143)

$41.99

$

Usually ships in 3-6 days

0

96

Exmark 130-8478

SEAL-LIP
(Superseded to 104-2144)

$49.99

$

In Stock, only 1 left!

0

97

Exmark 109-5939

HUB KIT

$103.99

$

In Stock, only 3 left!

0

100

Exmark 114-1697

PAWL-BRAKE

$17.99

$

Usually ships in 3-6 days

0

101

Exmark 114-1698

SHAFT-BRAKE, INBOARD

$140.99

$

Usually ships in 3-6 days

0

102

Exmark 125-0021

HANDLE-BRAKE

$14.99

$

In Stock, only 1 left!

0

103

Exmark 131-0906

RING-RETAINING, EXT

$6.49

$

Usually ships in 3-6 days

0

105

$7.99

$

In Stock, only 1 left!

0

106

Exmark 120-7981

GUARD-FILTER, RH

$34.99

$

Usually ships in 3-6 days

0

111

Exmark 109-3278

ADAPTER-STRAIGHT

$124.99

$

Usually ships in 3-6 days

0

156

Exmark 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

164

$10.99

$

Usually ships in 3-6 days

0

200

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

$90.99

$

In Stock, only 1 left!

0

201

Exmark 132-0940

RH CENTER SECTION KIT

$352.99

$

Usually ships in 3-6 days

0

207

Exmark 137-2006

FAN PULLEY KIT
(Superseded to 135-7343)

$90.99

$

In Stock, only 1 left!

0

209

Exmark 114-8467

DISCONTINUED
(Superseded to 130-8482)

$383.99

$

Usually ships in 3-6 days

0

210

Exmark 114-8468

INPUT SHAFT KIT

$173.99

$

Usually ships in 3-6 days

0

211

Exmark 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0

212

Exmark 114-8470

AXLE SHAFT KIT

$265.99

$

Usually ships in 3-6 days

0
