QTS708GEM60200 - Exmark 60" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Fuel System Assembly Parts Diagram

60" Quest S-Series Zero-Turn Mower, Exmark 708

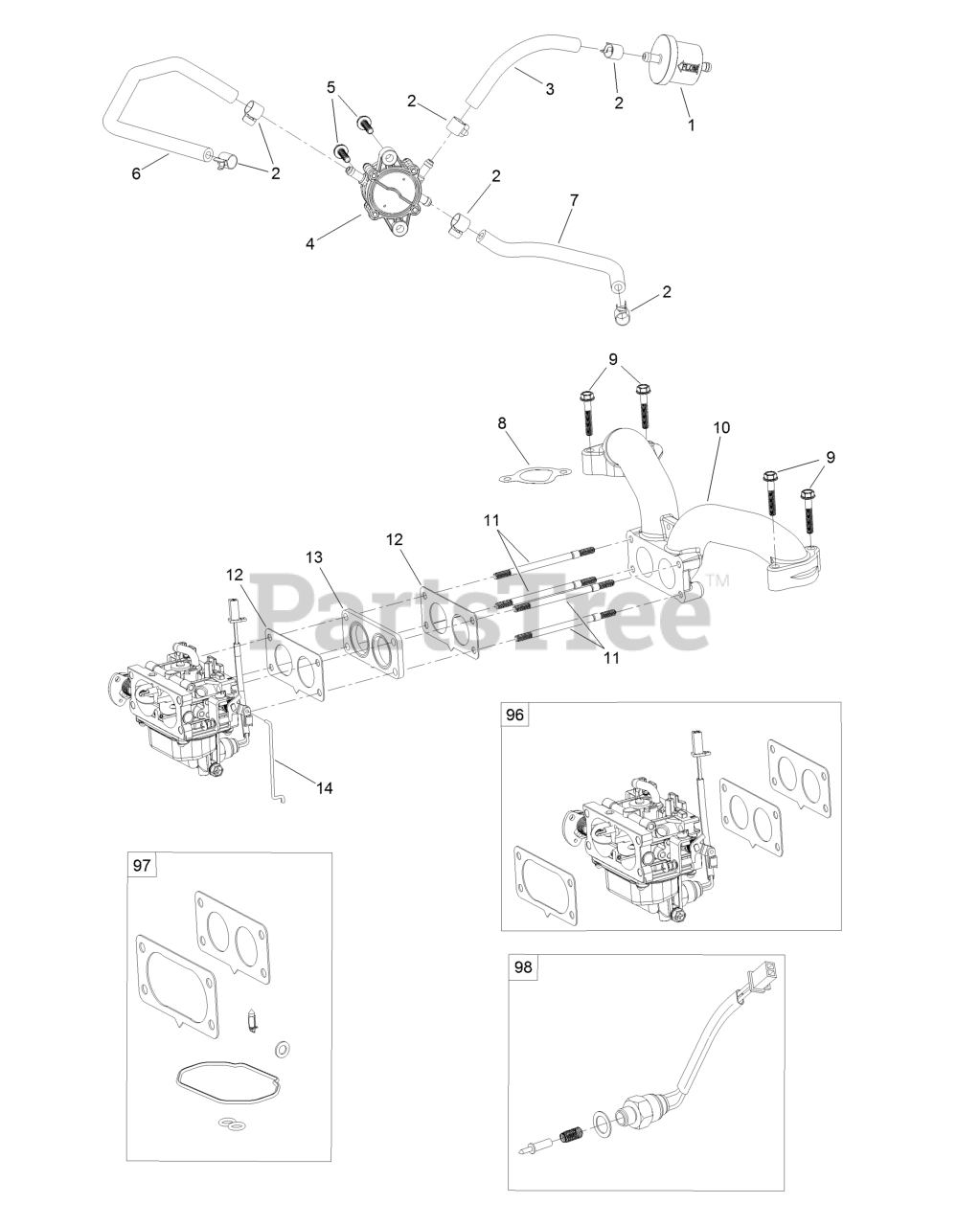

Fuel System Assembly Parts Diagram

  • Title

1

Exmark 133-1563

FILTER-FUEL
(Superseded to 139-0717)

$12.99

$

In Stock, Qty 20+

0

2

Exmark 120-4251

CLAMP-FUEL LINE
(Superseded to 139-0719)

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 120-4371

LINE-FUEL

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 127-9206

PUMP-FUEL
(Superseded to 139-0684)

$62.99

$

In Stock, Qty 6

0

5

Exmark 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

6

Exmark 127-9205

HOSE-FUEL

$23.99

$

Usually ships in 3-6 days

0

7

Exmark 127-9207

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

8

Exmark 127-9230

GASKET-INTAKE

$2.99

$

In Stock, Qty 11

0

9

Exmark 120-4284

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 127-9244

MANIFOLD-INTAKE

$100.99

$

Usually ships in 3-6 days

0

11

Exmark 127-9245

STUD

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 127-9246

GASKET-CARBURETOR

$5.49

$

In Stock, only 4 left!

0

13

Exmark 127-9247

INSULATOR-CARBURETOR

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 127-9248

LINKAGE-THROTTLE

$5.49

$

Usually ships in 3-6 days

0

96

Exmark 127-9289

CARBURETOR REPLACEMENT KI

$299.99

$

In Stock, only 1 left!

0

97

Exmark 127-9290

CARBURETOR REPAIR KIT

$37.99

$

In Stock, Qty 10

0

98

Exmark 127-9292

SOLENOID KIT

$45.99

$

In Stock, only 3 left!

0

99

Exmark 127-9303

HIGH ALTITUDE KIT

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0
