QTS708GEM60200 - Exmark 60" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Deck Lift Assembly Parts Diagram

60" Quest S-Series Zero-Turn Mower, Exmark 708

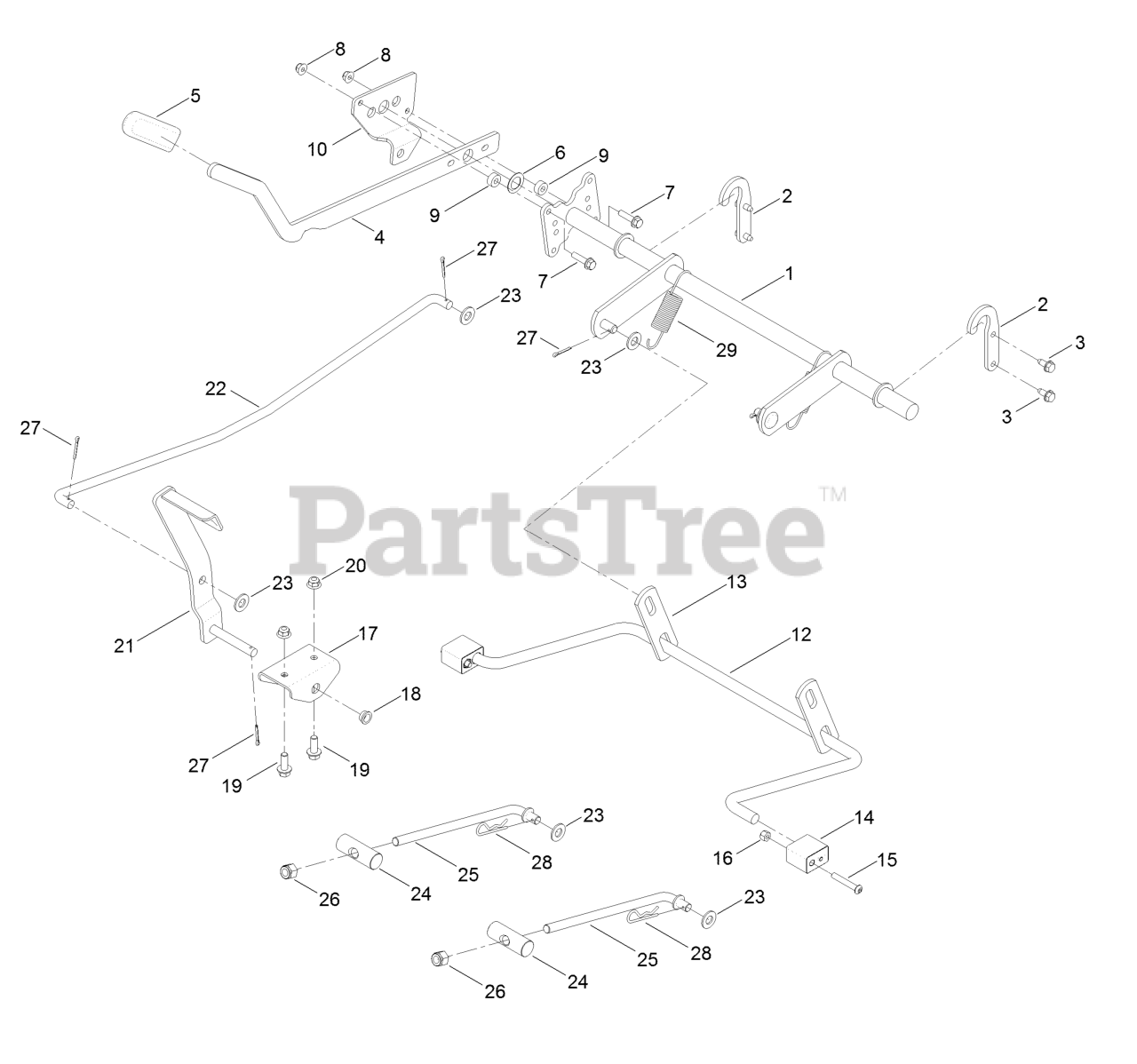

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 133-7010-03

DECK LIFT ASM

$66.99

$

Usually ships in 3-6 days

0

2

Exmark 133-1187

BRACKET-LIFT

$22.99

$

Usually ships in 3-6 days

0

3

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

4

Exmark 119-3427-03

LEVER-LIFT

$23.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 5

0

6

Exmark 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

7

Exmark 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 121-1759

SPACER

$2.99

$

In Stock, only 1 left!

0

10

Exmark 131-3933

PLATE-FOOTLIFT

$17.99

$

In Stock, only 1 left!

0

12

Exmark 119-3347

ARM-LIFT, REAR (WIDE)
(Superseded to 138-7239)

$36.99

$

In Stock, only 3 left!

0

13

Exmark 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 9

0

14

Exmark 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, only 1 left!

0

15

Exmark 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 17

0

16

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

17

Exmark 120-2294-03

BRACKET-FOOTLIFT

$13.99

$

Usually ships in 3-6 days

0

18

Exmark 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

19

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

20

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Exmark 132-6939-03

PEDAL ASM

$28.99

$

Usually ships in 3-6 days

0

22

Exmark 120-2242

ROD-FOOTLIFT

$22.99

$

Usually ships in 3-6 days

0

23

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 119-8810

PIN-PIVOT

$17.99

$

In Stock, only 3 left!

0

25

Exmark 133-4319

ROD-MOUNT, DECK

$15.99

$

In Stock, Qty 6

0

26

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

27

Exmark 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

28

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

29

Exmark 133-4440

SPRING, EXTENSION

$6.49

$

In Stock, only 2 left!

0
