QTS708GEM50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 316000000 - 399999999) (2016) Main Frame and Front Axle Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Exmark 708

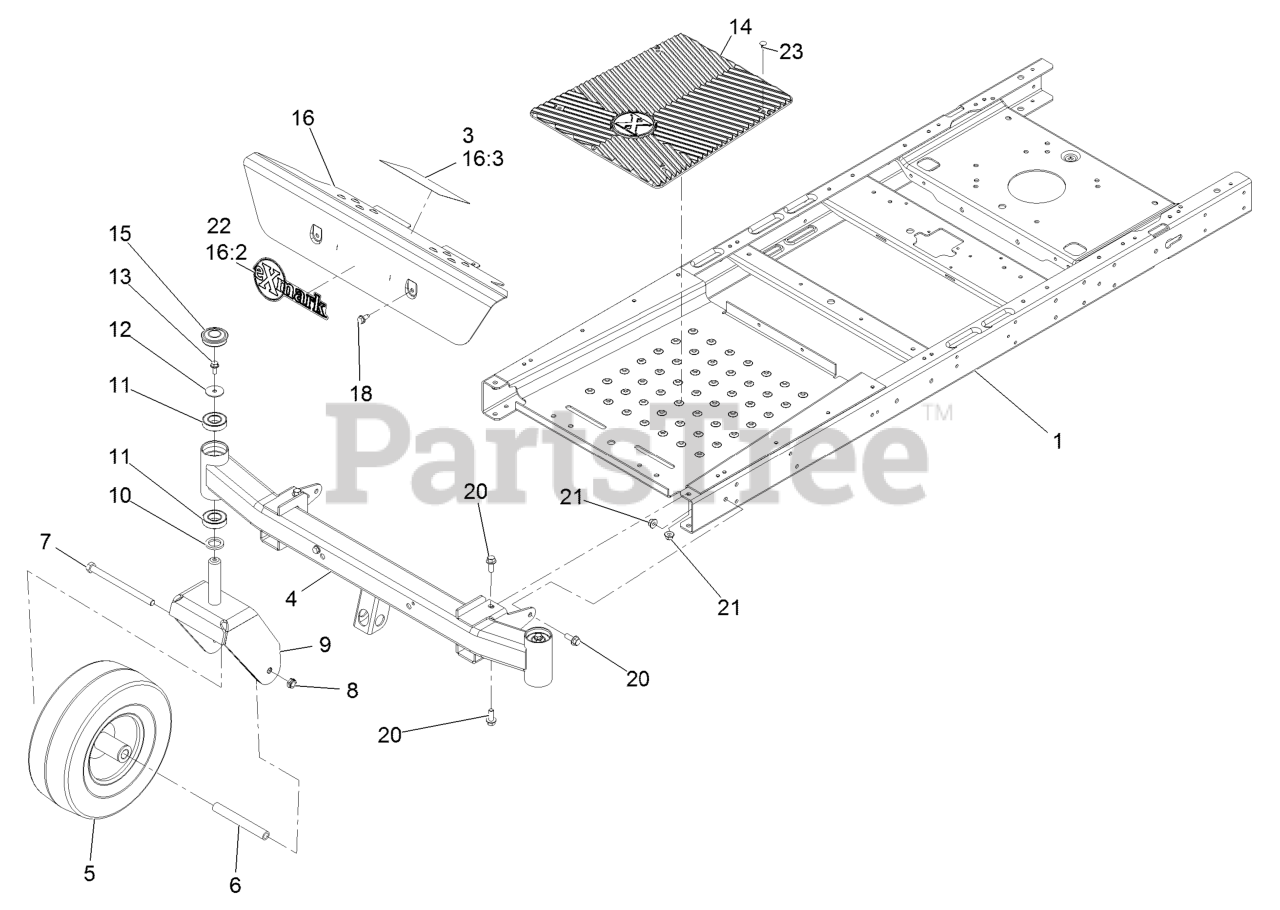

Main Frame and Front Axle Assembly Parts Diagram

  • Title

1

Exmark 130-0699-01

FRAME ASM

$512.99

$

Usually ships in 3-6 days

0

3

Exmark 132-0869

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 125-1726-01

AXLE ASM

$351.99

$

Usually ships in 3-6 days

0

5

Exmark 119-3473

13 INCH WHEEL AND TIRE AS

$117.99

$

In Stock, only 3 left!

0

6

Exmark 119-3475

SPANNER

$11.99

$

In Stock, Qty 9

0

7

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Exmark 119-3349-01

FORK-CASTER

$166.99

$

In Stock, Qty 5

0

10

Exmark 117-7394

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

11

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

13

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

14

Exmark 132-6896

FLOOR MAT- EXMARK

$95.99

$

Usually ships in 3-6 days

0

15

Exmark 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 16

0

16

Exmark 133-1159

FOOTREST ASM

$154.99

$

Usually ships in 3-6 days

0

16:2

Exmark 126-6969

DECAL-EXMARK LOGO

$7.49

$

In Stock, Qty 16

0

16:3

Exmark 132-0869

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

21

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Exmark 126-6969

DECAL-EXMARK LOGO

$7.49

$

In Stock, Qty 16

0

23

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 10

0
