QTS708GEM50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 315000000 - 315999999) (2015) Blower Housing Assembly Engine Assembly No. 127-9041 Parts Diagram

50" Quest S-Series Zero-Turn Mower, Exmark 708

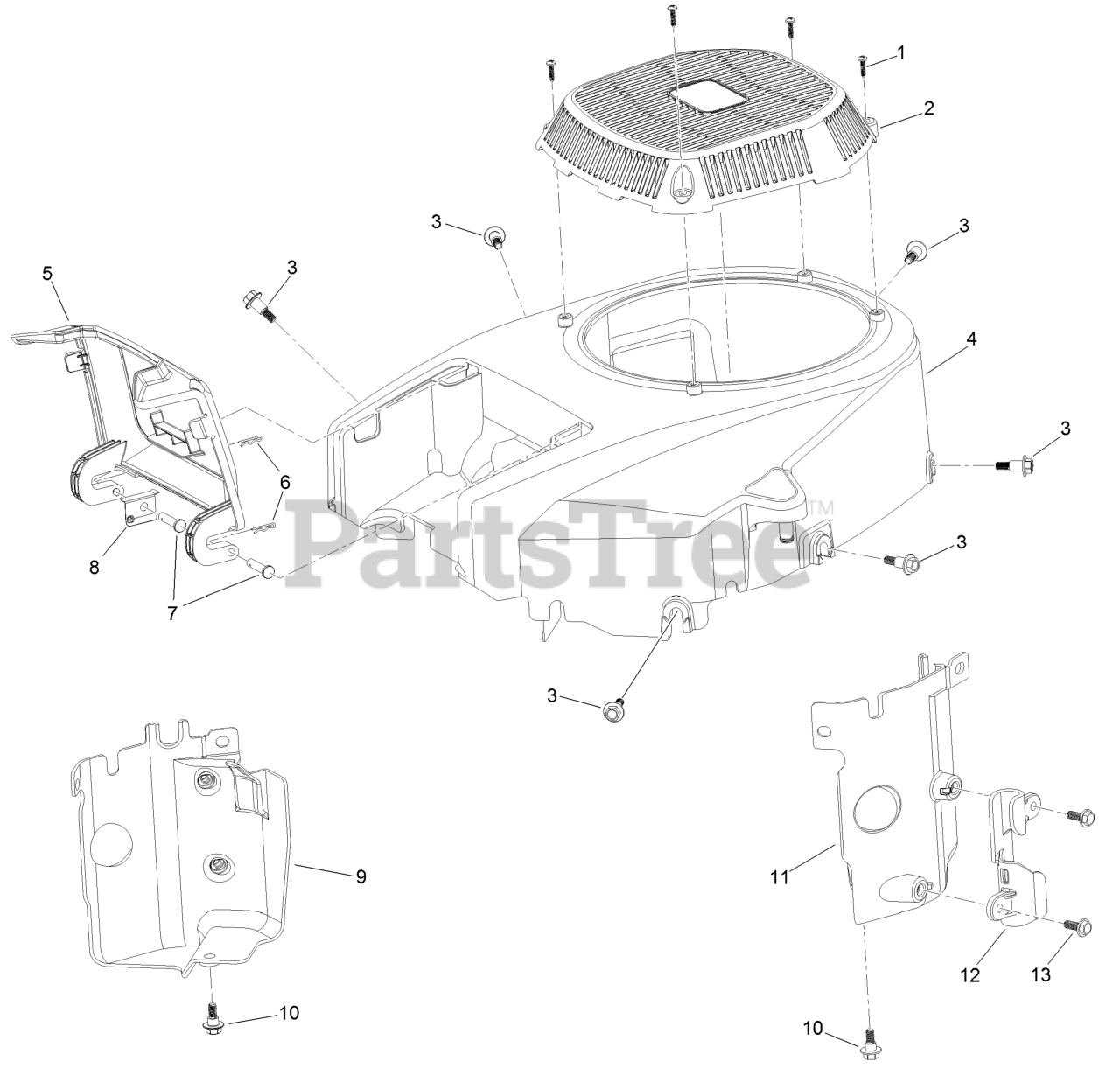

Blower Housing Assembly Engine Assembly No. 127-9041 Parts Diagram

  • Title

1

Exmark 127-9195

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 127-9045

COVER-FAN

$23.99

$

In Stock, only 4 left!

0

3

Exmark 127-9196

SCREW-SHOULDER, HWH

$3.49

$

In Stock, Qty 20+

0

4

Exmark 127-9044

133-1572
(Superseded to 133-1572)

$85.99

$

Usually ships in 3-6 days

0

5

Exmark 127-9046

DOOR-FILTER, AIR

$15.99

$

In Stock, only 2 left!

0

6

Exmark 127-9280

PIN-HAIR

$1.49

$

In Stock, Qty 5

0

7

Exmark 127-9282

PIN

$2.99

$

In Stock, Qty 12

0

8

Exmark 127-9281

PLATE-SPRING

$8.99

$

Usually ships in 3-6 days

0

9

Exmark 127-9049

BAFFLE-AIR, LEFT

$20.99

$

Usually ships in 3-6 days

0

10

Exmark 120-4210

SCREW-SHOULDER, HHF

$6.49

$

In Stock, Qty 12

0

11

Exmark 127-9048

BAFFLE-AIR, RIGHT

$20.99

$

Usually ships in 3-6 days

0

12

Exmark 127-9287

CLEAT-HOSE

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0
