QTS708GEM50200 - Exmark 50" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 315000000 - 315999999) (2015) 50 Inch Deck Belt, Spindle and Blade Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Exmark 708

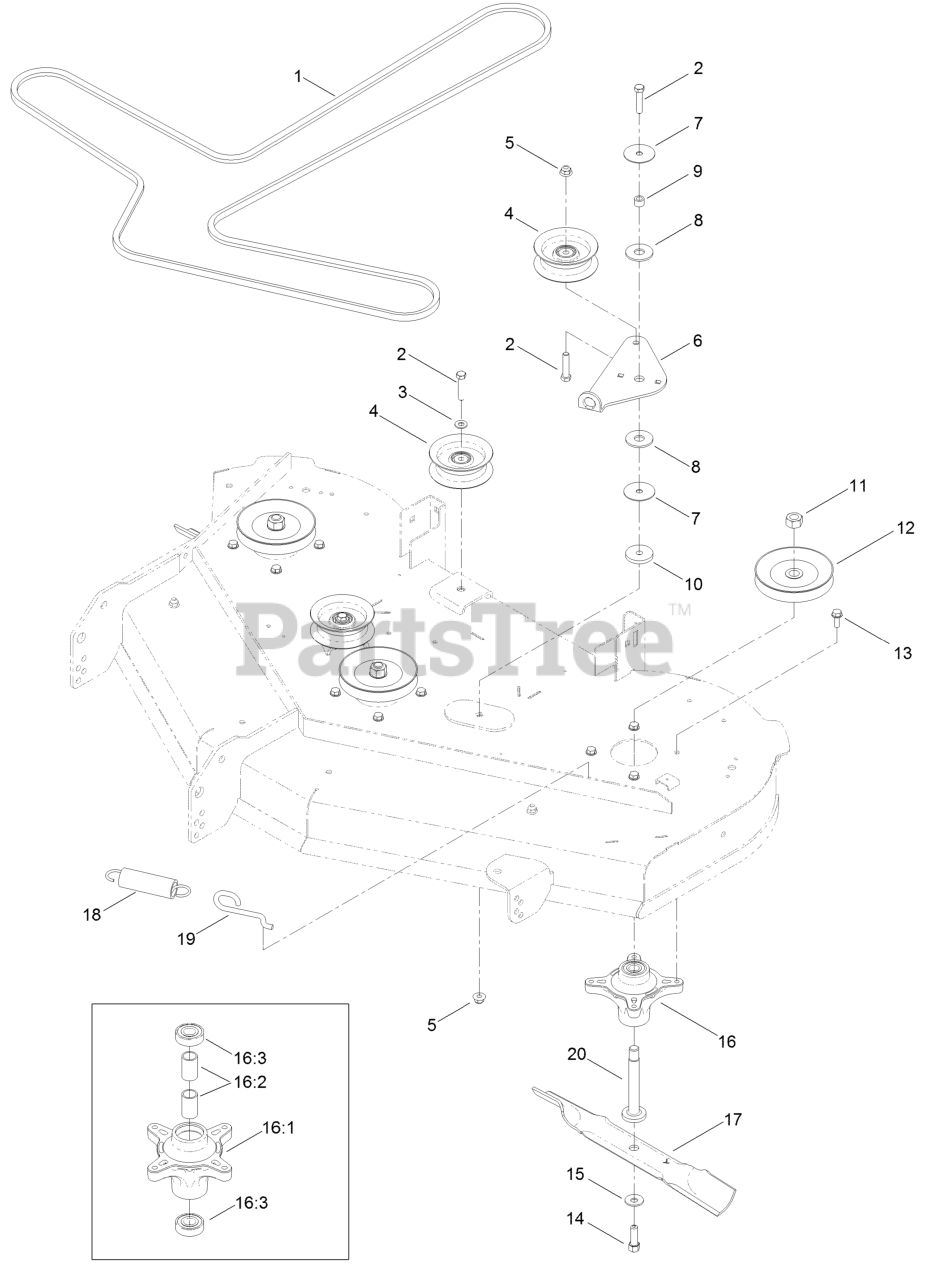

50 Inch Deck Belt, Spindle and Blade Assembly Parts Diagram

  • Title

1

Exmark 119-8820

V-BELT
(Superseded to 119-8820-SL)

$62.99

$

Usually ships in 3-6 days

0

2

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 106-2175

132-9420
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 114-8540

ARM-IDLER

$21.99

$

In Stock, only 3 left!

0

7

Exmark 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

8

Exmark 114-0463

WASHER-FRICTION, COMPOSIT

$5.49

$

In Stock, Qty 9

0

9

Exmark 115-4986

SPACER

$2.99

$

In Stock, Qty 10

0

10

Exmark 110-9981

WASHER-PLAIN
(Superseded to 110-9981)

$14.99

$

Usually ships in 3-6 days

0

11

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Exmark 125-5575

PULLEY

$63.99

$

In Stock, Qty 20+

0

13

Exmark 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Exmark 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Exmark 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Exmark 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$77.99

$

Usually ships in 3-6 days

0

16:1

Exmark 117-7267

121-0751
(Superseded to 139-3214)

$77.99

$

Usually ships in 3-6 days

0

16:2

Exmark 120-7935

SPACER

$2.99

$

In Stock, Qty 20+

0

16:3

Exmark 100-1048

38-7820
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

17

Exmark 115-5059-03

BLADE-HI LIFT
(Superseded to 142-6453-S)

$25.99

$

In Stock, Qty 19

0

18

Exmark 1-603414

SPRING-EXTENSION

$20.99

$

Usually ships in 3-6 days

0

19

Exmark 112-3973

HOOK-RETURN, SPRING
(Superseded to 138-7266)

$5.49

$

In Stock, only 1 left!

0

20

Exmark 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 20+

0
