QTS708GEM42200 - Exmark 42" Quest S-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Fork and Caster Wheel Assembly Parts Diagram

42" Quest S-Series Zero-Turn Mower, Exmark 708

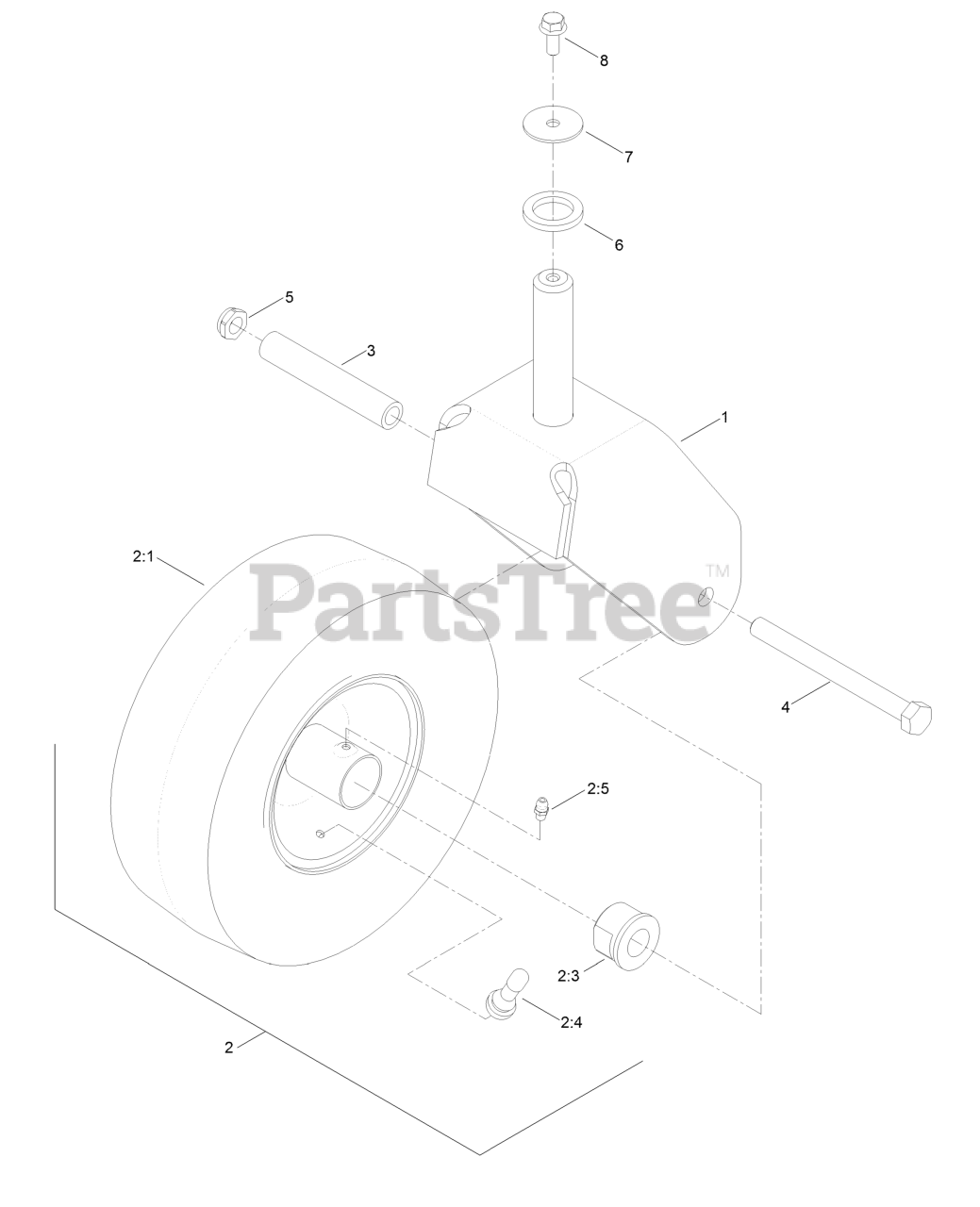

Fork and Caster Wheel Assembly Parts Diagram

  • Title

1

Exmark 120-2266-01

FORK-CASTER

$181.99

$

In Stock, only 1 left!

0

2

Exmark 130-0736

CASTER WHEEL ASM

$87.99

$

In Stock, Qty 11

0

2:1

Exmark 130-0735

TIRE

$49.99

$

In Stock, only 2 left!

0

2:3

Exmark 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

2:4

Exmark 232-27

Stem-Valve

$

$

Not available

2:5

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2:6

Exmark 105-0844

TUBE-INNER

Note: Optional Equipment, Not illustrated

$46.99

$

In Stock, only 2 left!

0

3

Exmark 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 20+

0

4

Exmark 325-22

SCREW-HH

$8.49

$

In Stock, Qty 13

0

5

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

6

Exmark 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0
