QTS691KA502 - Exmark 50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V (SN: 314000000 - 314999999) (2014) Engine and Muffler Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V

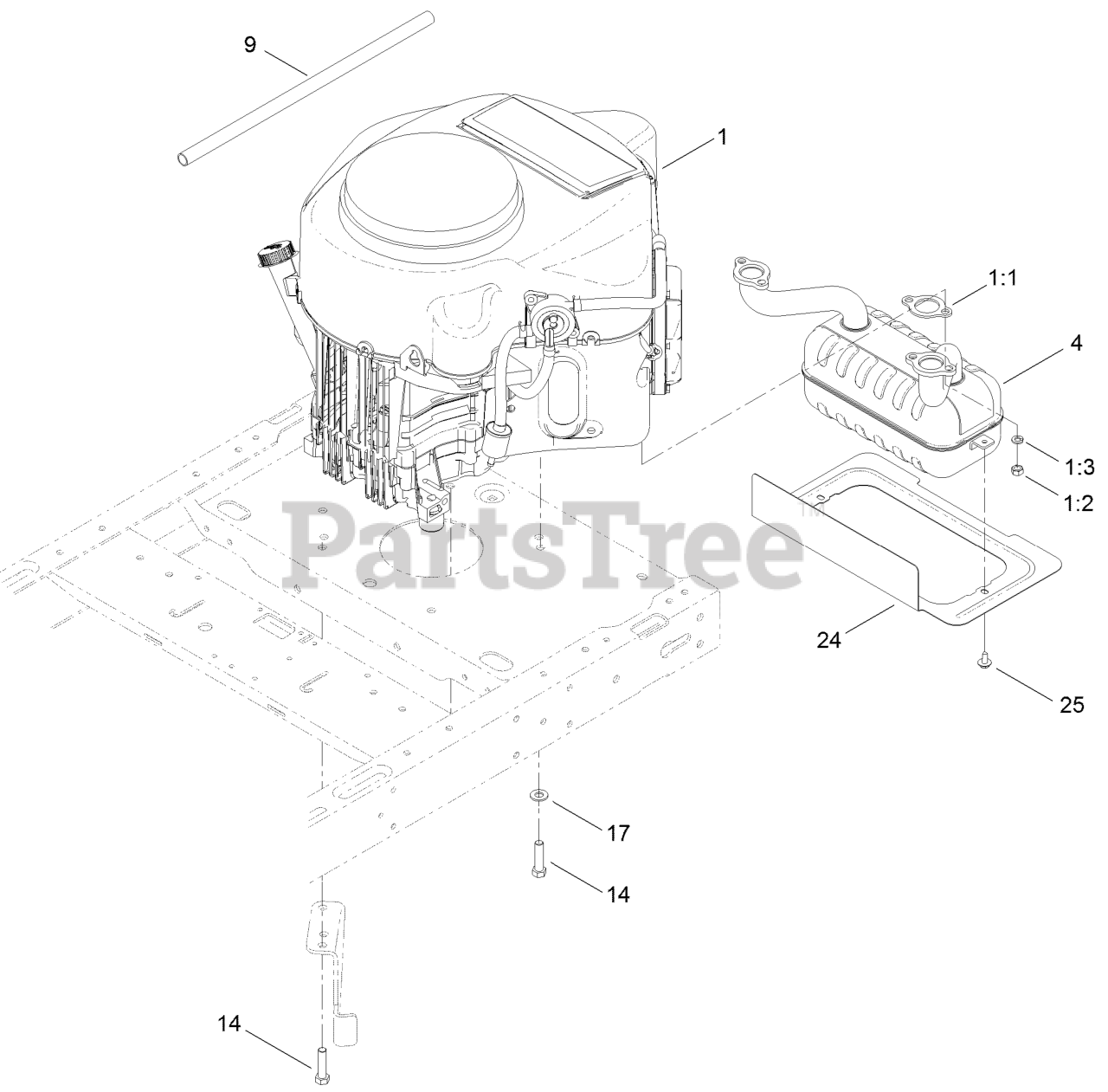

Engine and Muffler Assembly Parts Diagram

  • Title
1

Engine-Kawasaki, Fr691v-_s07-R

Note: Not serviced separately, Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

1:2

$1.99

$

In Stock, Qty 20+

0

1:3

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

4

Exmark 117-7256

MUFFLER-KAWASAKI

$224.99

$

In Stock, only 1 left!

0

9

Exmark 106-7022

TUBE-DRAIN, OIL

$9.49

$

In Stock, only 1 left!

0

14

Exmark 323-50

BOLT-HH

$1.49

$

In Stock, Qty 17

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

24

Exmark 121-2973-03

SHIELD-HEAT

$34.99

$

Usually ships in 3-6 days

0

25

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0
