QTS691KA502 - Exmark 50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V (SN: 312000000 - 312999999) (2012) Left Hand Hydro Transaxle Assembly No. 119-3360 Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V

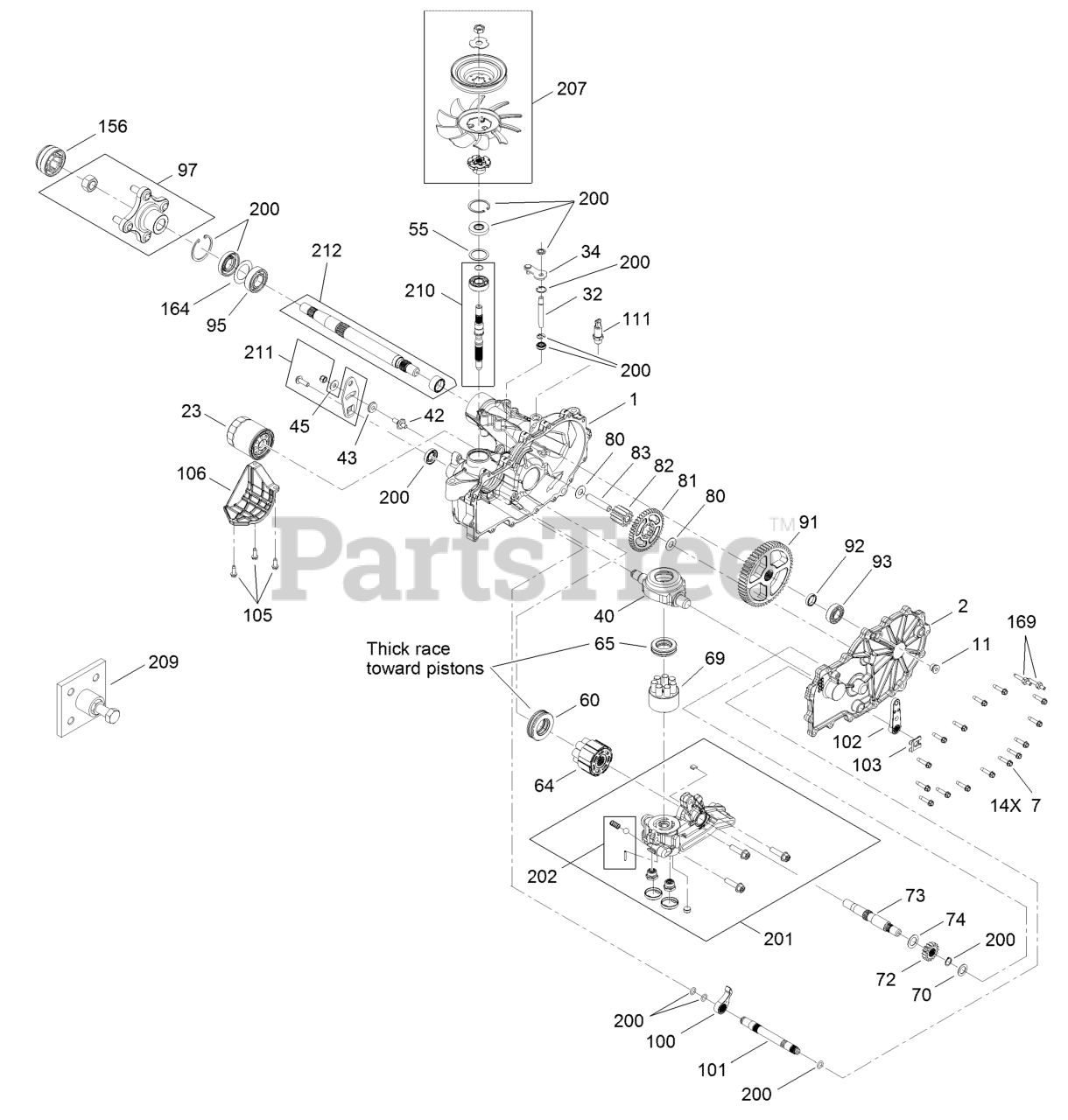

Left Hand Hydro Transaxle Assembly No. 119-3360 Parts Diagram

  • Title

1

Exmark 125-0037

MAIN HOUSING KIT

$

$

Not available

2

Exmark 117-5358

RH HOUSING SIDE KIT

$192.99

$

Usually ships in 3-6 days

0

7

Exmark 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

11

Exmark 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

23

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

32

Exmark 114-1685

ROD-BYPASS

$35.99

$

Usually ships in 3-6 days

0

34

Exmark 112-9852

107-2489
(Superseded to 107-2489)

$83.99

$

Usually ships in 3-6 days

0

40

Exmark 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

42

Exmark 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

43

Exmark 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

45

Exmark 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

55

Exmark 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

60

Exmark 112-4154

BEARING-THRUST

$103.99

$

Usually ships in 3-6 days

0

64

Exmark 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

65

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

69

Exmark 110-8561

PUMP BLOCK ASM

$347.99

$

Usually ships in 3-6 days

0

70

Exmark 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

72

Exmark 121-5749

GEAR-16T

$13.99

$

Usually ships in 3-6 days

0

73

Exmark 114-1691

SHAFT-MOTOR

$169.99

$

Usually ships in 3-6 days

0

74

Exmark 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

80

Exmark 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

81

Exmark 125-0000

GEAR-43T

$62.99

$

Usually ships in 3-6 days

0

82

Exmark 114-1693

GEAR-11T

$28.99

$

Usually ships in 3-6 days

0

83

Exmark 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

91

Exmark 114-1694

GEAR-54T

$139.99

$

In Stock, only 2 left!

0

92

Exmark 120-7975

SPACER

$6.49

$

Usually ships in 3-6 days

0

93

Exmark 114-1696

BEARING-BALL

$54.99

$

Usually ships in 3-6 days

0

95

Exmark 120-7976

BEARING-BALL
(Superseded to 130-8477)

$25.99

$

Usually ships in 3-6 days

0

97

Exmark 109-5939

HUB KIT

$103.99

$

In Stock, only 3 left!

0

100

Exmark 114-1697

PAWL-BRAKE

$17.99

$

Usually ships in 3-6 days

0

101

Exmark 114-1698

SHAFT-BRAKE, INBOARD

$140.99

$

Usually ships in 3-6 days

0

102

Exmark 114-1699

HANDLE-BRAKE

$22.99

$

Usually ships in 3-6 days

0

103

Exmark 114-8450

CLIP-RETAINING

$5.99

$

In Stock, only 1 left!

0

105

Exmark 104-2120

SCREW

$7.99

$

In Stock, only 1 left!

0

106

Exmark 120-7981

GUARD-FILTER, RH

$34.99

$

Usually ships in 3-6 days

0

111

Exmark 109-3278

ADAPTER-STRAIGHT

$124.99

$

Usually ships in 3-6 days

0

156

Exmark 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

164

Exmark 121-5745

SPACER

$10.99

$

Usually ships in 3-6 days

0

169

Exmark 125-0035

STUD

$17.99

$

Usually ships in 3-6 days

0

200

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

$90.99

$

In Stock, Qty 6

0

201

Exmark 114-8463

RH CENTER SECTION KIT

$433.99

$

Usually ships in 3-6 days

0

202

Exmark 114-8464

CHARGE RELIEF KIT

$22.99

$

Usually ships in 3-6 days

0

207

Exmark 121-5746

FAN PULLEY KIT
(Superseded to 135-7349)

$90.99

$

In Stock, only 3 left!

0

209

Exmark 114-8467

DISCONTINUED
(Superseded to 130-8482)

$383.99

$

Usually ships in 3-6 days

0

210

Exmark 114-8468

INPUT SHAFT KIT

$173.99

$

Usually ships in 3-6 days

0

211

Exmark 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0

212

Exmark 114-8470

AXLE SHAFT KIT

$265.99

$

Usually ships in 3-6 days

0
