QTS691KA502 - Exmark 50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V (SN: 312000000 - 312999999) (2012) Hydro Transaxle Drive and Rear Wheel Assembly Parts Diagram

50" Quest S-Series Zero-Turn Mower, Kawasaki FR691V

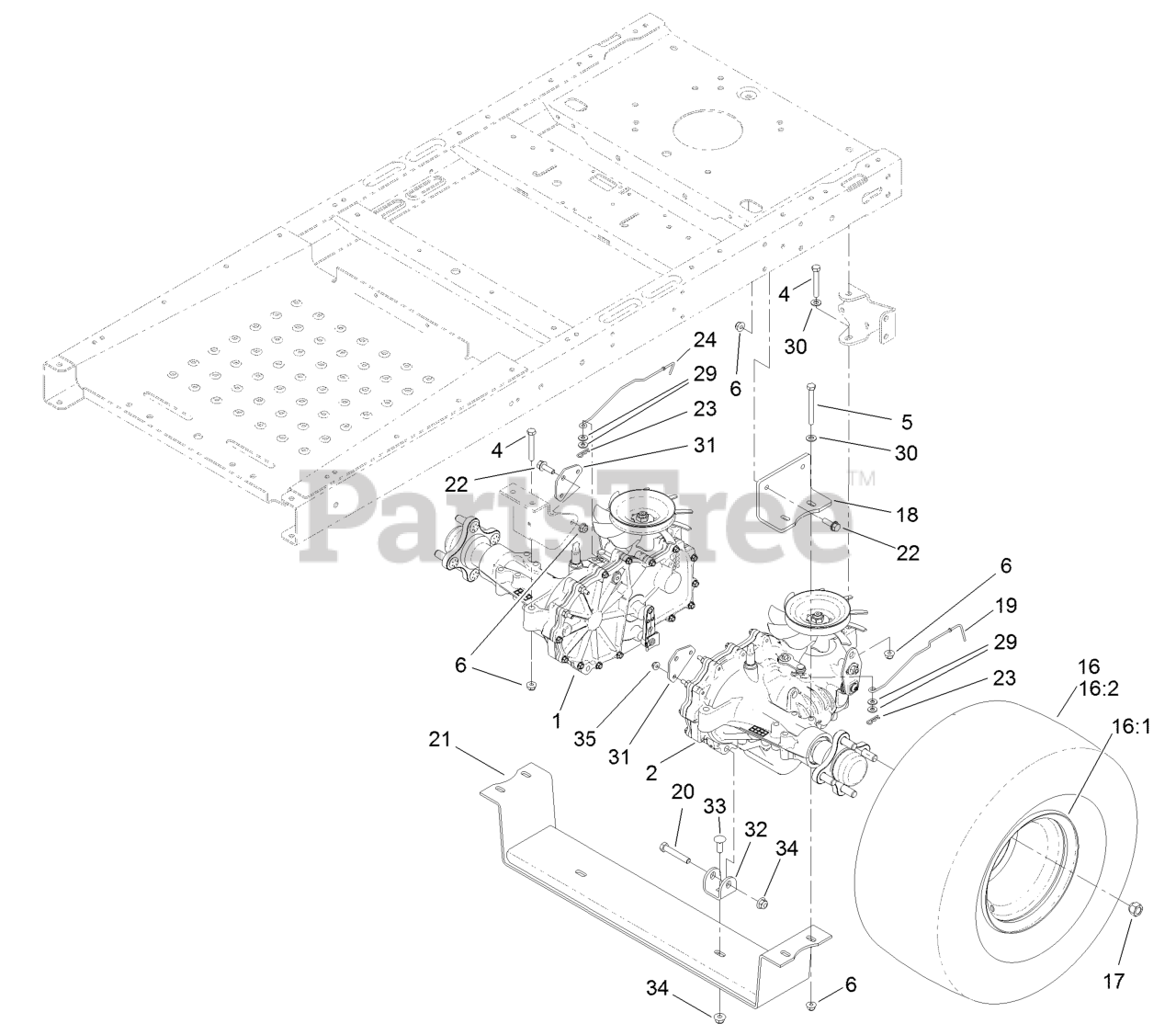

Hydro Transaxle Drive and Rear Wheel Assembly Parts Diagram

  • Title

1

Exmark 119-3361

RH HYDRO TRANSAXLE ASM
(Superseded to 140-5191)

$1507.99

$

Usually ships in 3-6 days

0

2

Exmark 119-3360

LH HYDRO TRANSAXLE ASM
(Superseded to 140-5190)

$1659.99

$

Usually ships in 3-6 days

0

4

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-3163

WHEEL AND TIRE ASM

$

$

Not available

16:1

Exmark 116-2299

WHEEL,10 X 6.00

$

$

Not available

16:2

Exmark 116-3165

TIRE

$262.99

$

Usually ships in 3-6 days

0

17

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

18

Exmark 121-0745-01

MOUNT-HYDRO

$34.99

$

Usually ships in 3-6 days

0

19

Exmark 121-2965

ROD-BYPASS, LH

$9.49

$

Usually ships in 3-6 days

0

20

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Exmark 121-0748-01

MOUNT-HYDRO

$176.99

$

Usually ships in 3-6 days

0

22

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

23

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 120-7968

ROD-BYPASS, RH

$9.49

$

Usually ships in 3-6 days

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Exmark 120-7918

PLATE-HYDRO MOUNT

$15.99

$

Usually ships in 3-6 days

0

32

Exmark 121-0749

TAB-HYDRO

$11.99

$

Usually ships in 3-6 days

0

33

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

34

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
