QTS691KA422 - Exmark 42" Quest S-Series Zero-Turn Mower, Kawasaki FR691V (SN: 314000000 - 314999999) (2014) Right Hand Hydro Transaxle Assembly No. 119-3341 Parts Diagram

42" Quest S-Series Zero-Turn Mower, Kawasaki FR691V

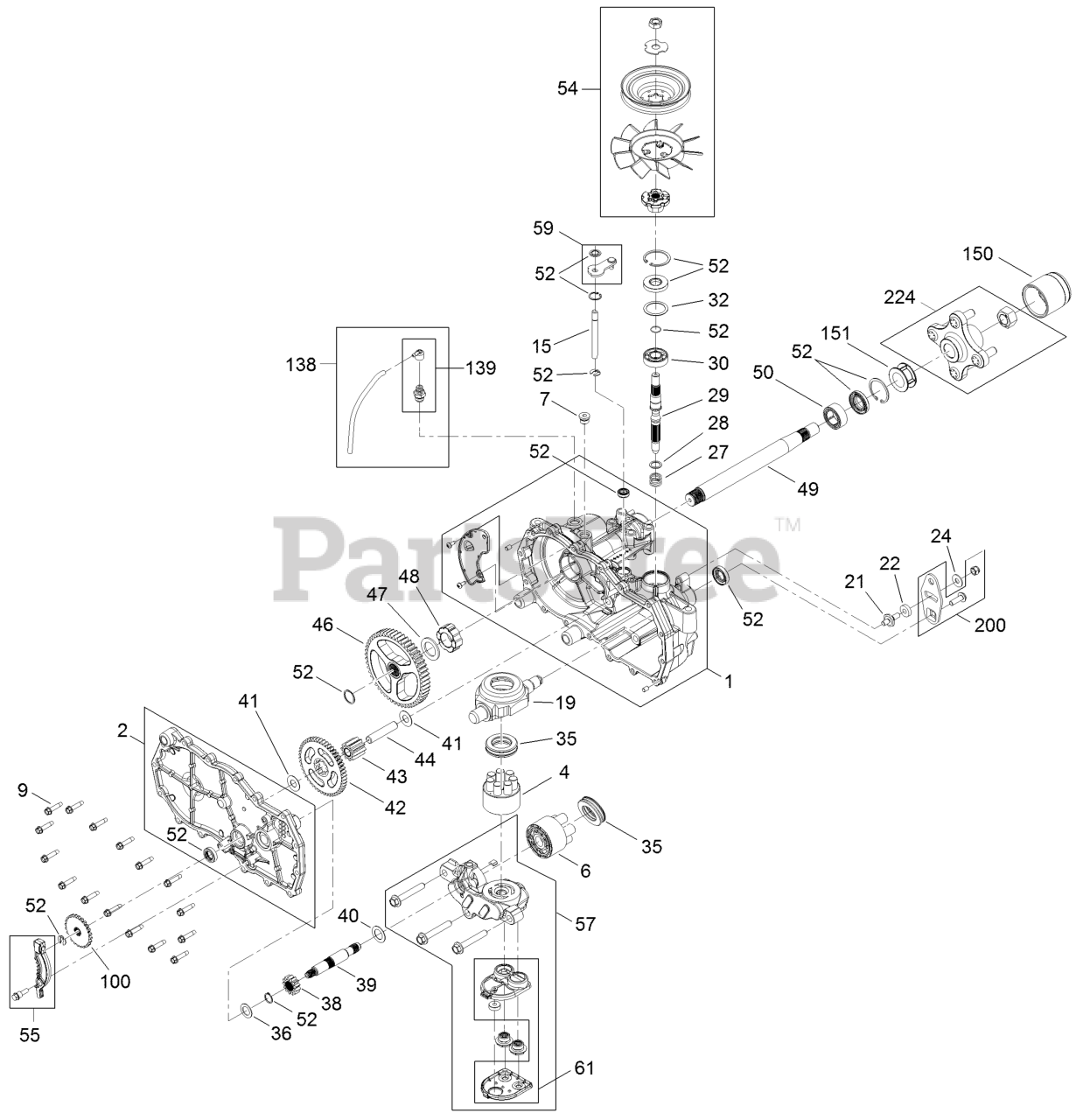

Right Hand Hydro Transaxle Assembly No. 119-3341 Parts Diagram

  • Title

1

Exmark 106-8674

MAIN HOUSING ASM

$837.99

$

Usually ships in 3-6 days

0

2

Exmark 106-8675

SIDE ASM

$658.99

$

Usually ships in 3-6 days

0

4

Exmark 110-8561

PUMP BLOCK ASM

$344.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2666

CYLINDER BLOCK KIT

$488.99

$

Usually ships in 3-6 days

0

7

Exmark 104-2189

PLUG-THREAD, STRAIGHT

$25.99

$

In Stock, only 2 left!

0

9

Exmark 104-5305

SCREW-HHF

$7.99

$

In Stock, only 1 left!

0

15

Exmark 106-8678

ROD-BYPASS

$54.99

$

Usually ships in 3-6 days

0

19

Exmark 104-5304

SWASHPLATE-TRUNNION

$193.99

$

Usually ships in 3-6 days

0

21

Exmark 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

22

Exmark 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

24

Exmark 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 120-5537

94-1936
(Superseded to 94-1936)

$8.49

$

Usually ships in 3-6 days

0

28

Exmark 120-5538

WASHER

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 104-5306

SHAFT-INPUT

$367.99

$

Usually ships in 3-6 days

0

30

Exmark 104-5311

BEARING-BALL

$43.99

$

In Stock, Qty 5

0

32

Exmark 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

35

Exmark 94-6922

BEARING-THRUST

$61.99

$

In Stock, only 3 left!

0

36

Exmark 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

38

Exmark 104-5316

GEAR-PINNION, 13T

$31.99

$

Usually ships in 3-6 days

0

39

Exmark 106-8683

SHAFT-MOTOR

$283.99

$

Usually ships in 3-6 days

0

40

Exmark 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

41

Exmark 119-5541

Washer
(Superseded to 94-1933)

$6.49

$

Usually ships in 3-6 days

0

42

Exmark 104-5317

GEAR-10T/48T

$188.99

$

Usually ships in 3-6 days

0

43

Exmark 104-5318

GEAR-JACKSHAFT, 10T

$85.99

$

Usually ships in 3-6 days

0

44

Exmark 104-5329

PIN-JACKSHAFT

$111.99

$

Usually ships in 3-6 days

0

46

Exmark 112-9855

GEAR-52T, BULL

$156.99

$

Usually ships in 3-6 days

0

47

Exmark 112-9856

WASHER

$8.49

$

Usually ships in 3-6 days

0

48

Exmark 112-9857

BEARING-SLEEVE

$19.99

$

In Stock, only 1 left!

0

49

Exmark 121-5732

SHAFT-AXLE

$181.99

$

Usually ships in 3-6 days

0

50

Exmark 112-9859

BUSHING-AXLE

$14.99

$

Usually ships in 3-6 days

0

52

Exmark 106-8686

SEAL KIT

$181.99

$

Usually ships in 3-6 days

0

54

Exmark 121-5729

FAN PULLEY KIT

$113.99

$

In Stock, only 1 left!

0

55

Exmark 106-8688

BRAKE ARM KIT

$37.99

$

Usually ships in 3-6 days

0

57

Exmark 112-9862

CENTER SECTION FILTER KIT

$523.99

$

Usually ships in 3-6 days

0

58

Exmark 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

59

Exmark 107-2489

BYPASS ARM KIT

$80.99

$

Usually ships in 3-6 days

0

61

Exmark 114-1634

FILTER KIT

$42.99

$

Usually ships in 3-6 days

0

100

Exmark 106-8694

DISC-BRAKE, COG

$59.99

$

Usually ships in 3-6 days

0

138

Exmark 112-9866

BREATHER KIT

$47.99

$

In Stock, only 1 left!

0

139

Exmark 114-1635

BREATHER ASM

$42.99

$

In Stock, only 1 left!

0

150

Exmark 116-6214

CAP-AXLE, LONG

$17.99

$

In Stock, only 1 left!

0

151

Exmark 121-5734

TUBE-AXLE

$6.49

$

Usually ships in 3-6 days

0

200

Exmark 117-5362

CONTROL ARM KIT

$28.99

$

In Stock, only 1 left!

0

224

Exmark 109-3538

116-3872
(Superseded to 116-3872)

$68.99

$

In Stock, only 1 left!

0
