QTS691KA422 - Exmark 42" Quest S-Series Zero-Turn Mower, Kawasaki FR691V (SN: 314000000 - 314999999) (2014) Controls and Fuel Tank Parts Diagram

42" Quest S-Series Zero-Turn Mower, Kawasaki FR691V

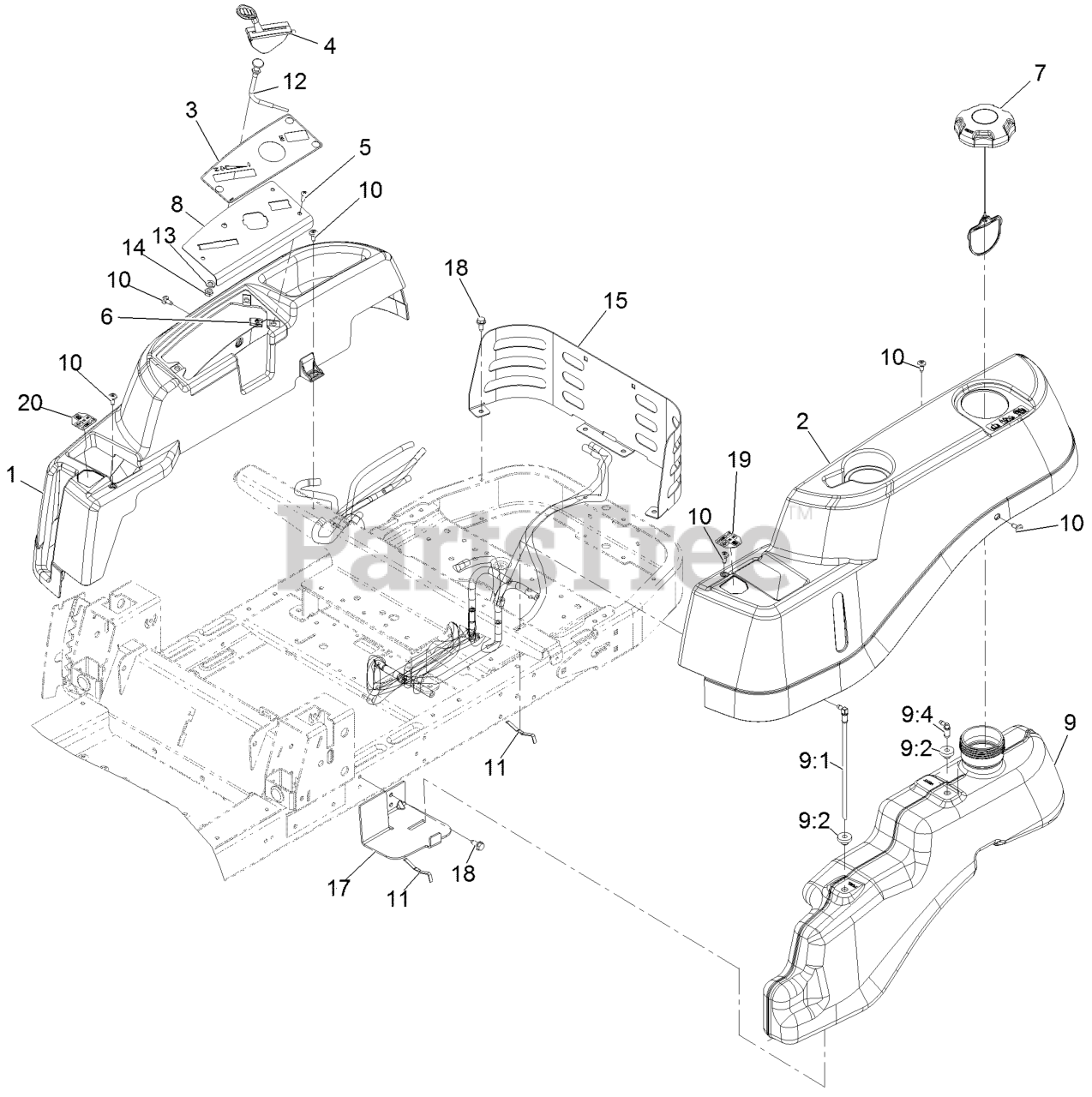

Controls and Fuel Tank Parts Diagram

  • Title

1

Exmark 119-8961

POD-RH

$72.99

$

Usually ships in 3-6 days

0

2

Exmark 119-8960

POD-LH

$72.99

$

Usually ships in 3-6 days

0

3

Exmark 120-5462

DECAL-CONTROL PANEL

$27.99

$

In Stock, only 1 left!

0

4

Exmark 120-2214

CABLE-THROTTLE

$44.99

$

In Stock, only 4 left!

0

5

Exmark 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

7

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$26.99

$

In Stock, only 1 left!

0

8

Exmark 119-3378-03

PLATE-CONTROL

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 119-3324

FUEL TANK ASM

$313.99

$

In Stock, only 3 left!

0

9:1

Exmark 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

9:2

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

9:4

Exmark 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, Qty 7

0

10

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

11

Exmark 609830

SPRING

$5.49

$

In Stock, Qty 6

0

12

Exmark 112-9753

CABLE-CHOKE

$44.99

$

In Stock, Qty 20+

0

13

Exmark 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

14

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

15

Exmark 119-8993-03

GUARD-REAR, NARROW

$105.99

$

Usually ships in 3-6 days

0

17

Exmark 119-3476-03

SUPPORT-TANK, FRONT

$13.99

$

Usually ships in 3-6 days

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

19

Exmark 119-8814

DECAL-LEVER, CONTROL (LH)

$2.99

$

In Stock, only 1 left!

0

20

Exmark 119-8815

DECAL-LEVER, CONTROL (RH)

$2.99

$

In Stock, only 2 left!

0
