QTS691KA422 - Exmark 42" Quest S-Series Zero-Turn Mower, Kawasaki FR691V (SN: 314000000 - 314999999) (2014) Clutch Assembly Parts Diagram

42" Quest S-Series Zero-Turn Mower, Kawasaki FR691V

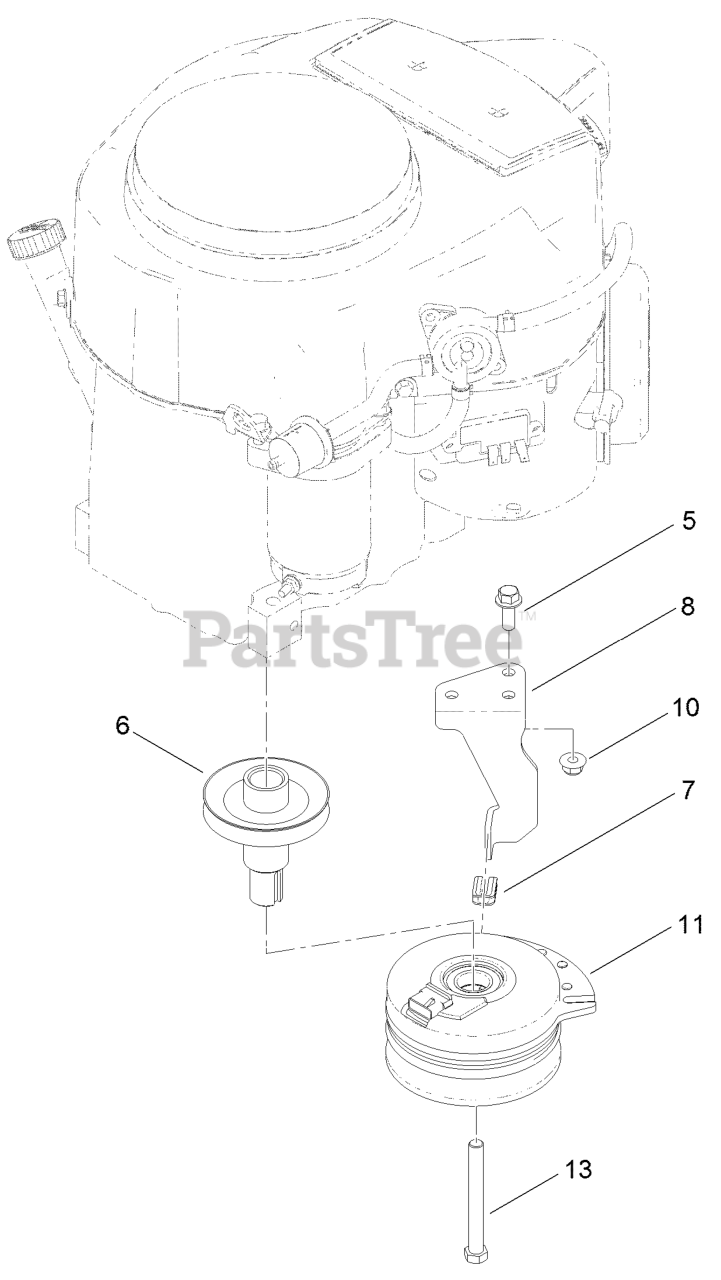

Clutch Assembly Parts Diagram

  • Title
5

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

6

Exmark 119-3318

PULLEY-ENGINE

$63.99

$

In Stock, only 1 left!

0

7

Exmark 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 9

0

8

Exmark 119-8884

STOP-CLUTCH (NARROW)

$

$

Not available

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 117-7468

CLUTCH-ELECTRIC

$534.99

$

Usually ships in 3-6 days

0

13

Exmark 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0
